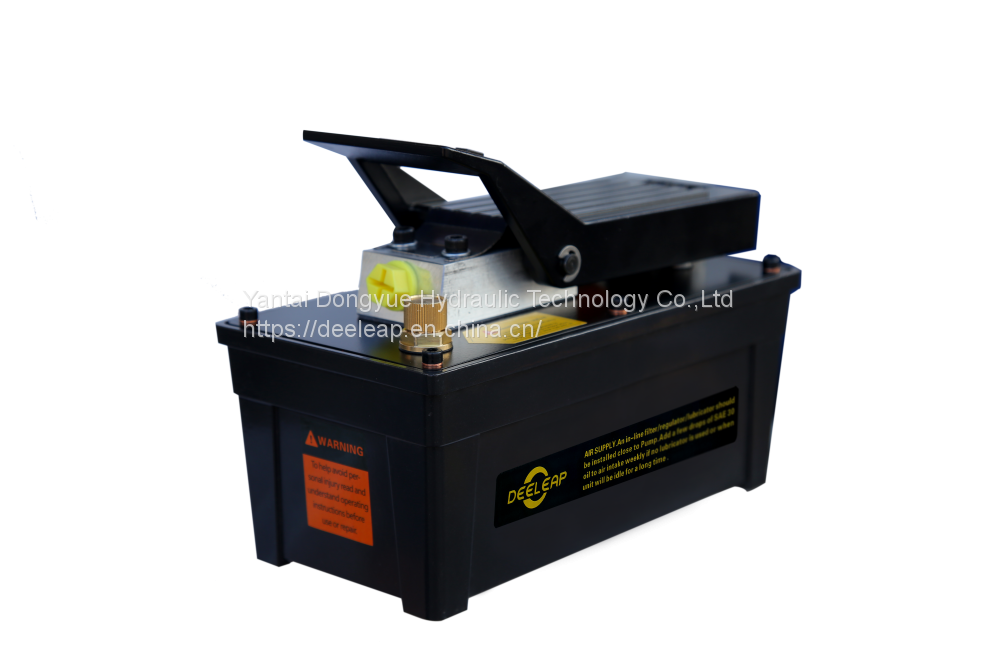

Deeleap Brand High Pressure Pedal-driven Pneumatic Hydraulic Pumps

Product Introduction

Name: foot-operated pneumatic hydraulic pump

Function type: Single speed single acting

Drive mode: pneumatic

Operation mode: foot or hand pressure

Medium: L-HM32# or L-HV32# anti-wear hydraulic oil

Applicable tools: Applicable to single-acting cylinders and hydraulic tools.

Applicable fields: applied to automobile maintenance, metallurgy, petroleum, chemical, electric power, lifting, construction, mining, railroad, ship and many other industries.

Features

1、Compressed air driven, no danger of electric spark or flame; can be used in flammable and explosive working environment.

2、Compact and light structure, easy to carry; low procurement cost.

3、Low air consumption, low running cost.

4、Industrial material oil tank, 32# anti-wear hydraulic oil, can adapt to the harsh working environment.

5、Rated pressure of 70MPa, built-in safety relief valve, for overload protection.

6、The threaded hole of oil outlet is 3/8 "NPTF with 11° elevation angle, which is convenient for oil pipe or joint connection sealing.

7、There are threaded mounting holes at the bottom of the tank for easy installation and fixing.

8、The choice of seals makes the pump stable and long-lasting; simple maintenance and low cost of use.

9、Fittings are processed with high precision, good sealing performance, no leakage and good pressure retention.
