Product Introduction

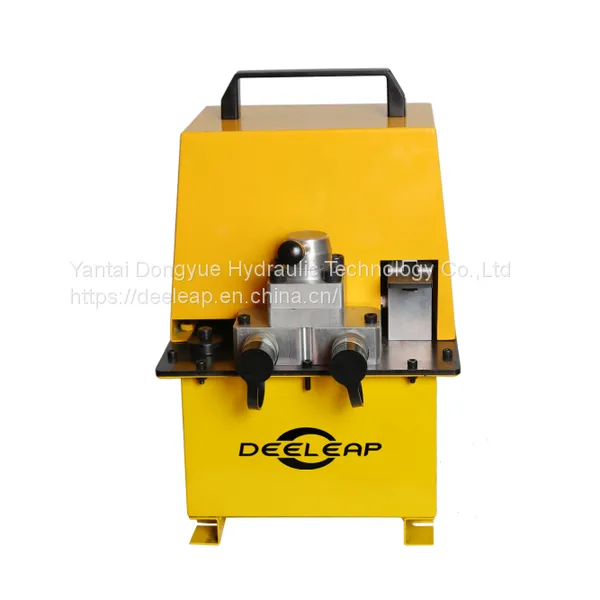

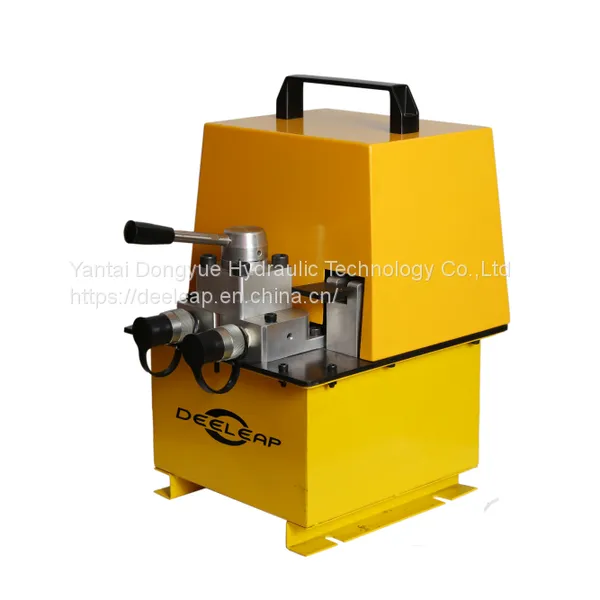

Two-speed double-acting pneumatic hydraulic pump (High displacement)
Function type: Double-speed double-acting
Drive mode: pneumatic
Operation mode: foot or hand pressure
Medium: L-HM32# or L-HV32# anti-wear hydraulic oil
Performance: high and low pressure two-stage large flow rate, fast and efficient.
Applicable tools: Applicable with double-acting cylinders and hydraulic tools. Also can be used for single-acting cylinders and hydraulic tools.
Applicable fields: applied to automobile maintenance, metallurgy, petroleum, chemical industry, electric power, lifting, construction,
mining, railroad, shipping and many other industries.
Features
1、Compressed air driven, no danger of electric spark or flame; can be used in flammable and explosive working environment.
2、Compact and light structure, easy to carry; low procurement cost.
3、 Low air consumption, low operating costs.
4、Industrial material oil tank, 32# anti-wear hydraulic oil, can adapt to the harsh working environment.
5、Rated pressure of 70MPa, built-in safety relief valve, for overload protection.
6、The threaded hole of oil outlet is 3/8 "NPTF, which is convenient for oil pipe or joint connection sealing.
7、There is a threaded mounting hole at the bottom of the tank for easy installation and fixing.
8、The choice of seals makes the pump stable and long-lasting; simple maintenance and low cost of use.
9、High precision machining of fittings, good sealing performance, no leakage, good pressure retention.
