Product Introduction

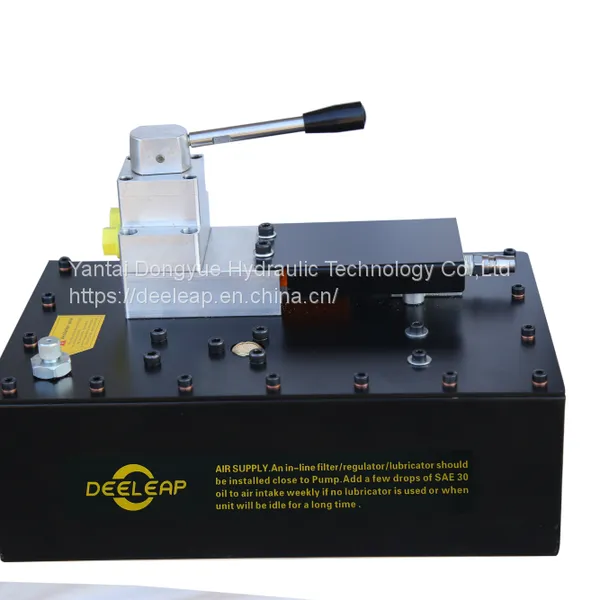

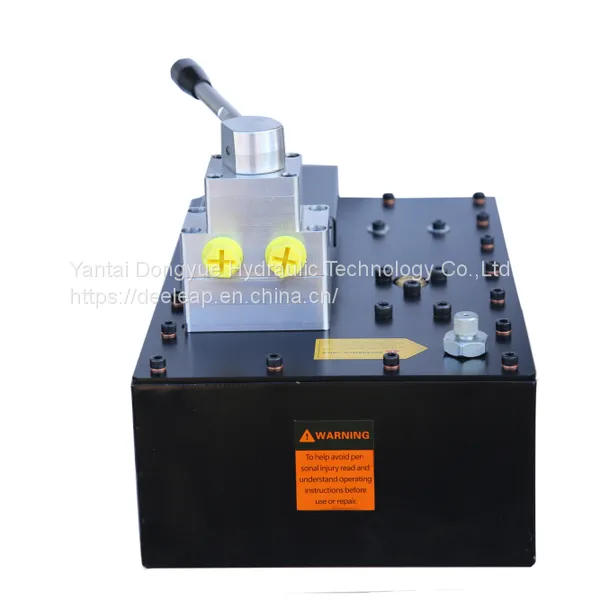

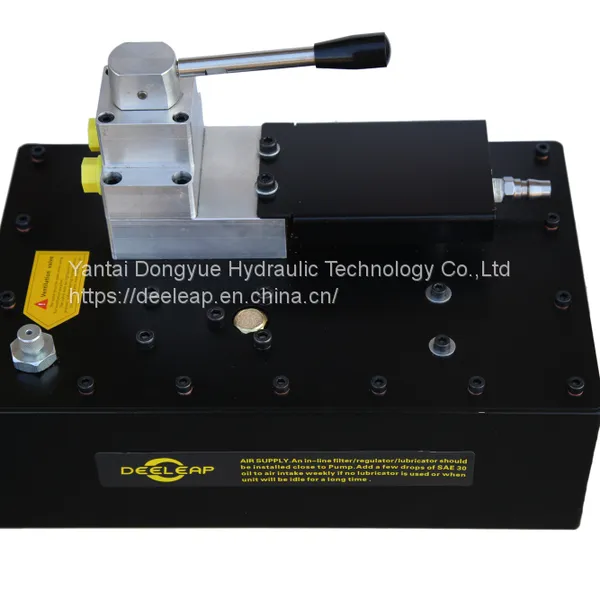

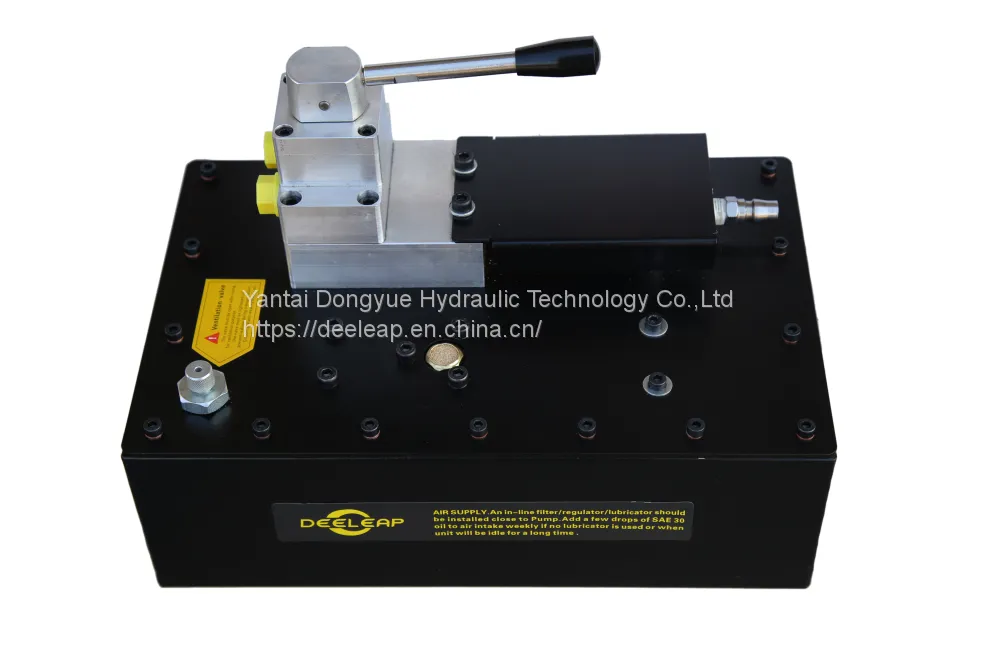

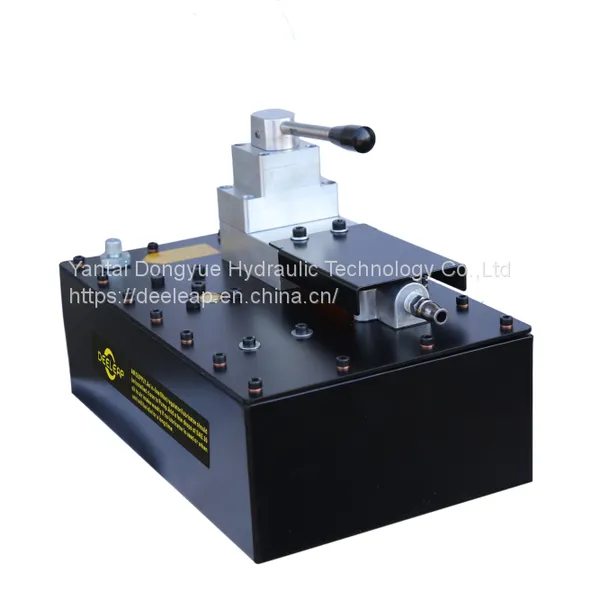

Two-speed double-acting pneumatic hydraulic pump
Function type: Double-speed double-acting
Drive mode: pneumatic
Operation mode: foot or hand pressure
Medium: L-HM32# or L-HV32# anti-wear hydraulic oil
Performance: high and low pressure two-stage high flow, fast, high efficiency.
Applicable tools: Applicable with double-acting cylinders and hydraulic tools. Also can be used for single-acting cylinders and hydraulic tools.
Applicable fields: applied to automobile maintenance, metallurgy, petroleum, chemical industry, electric power, lifting, construction,
mining, railroad, shipping and many other industries.
Features
1、 compressed air driven, no electric spark or flame hazard; can be used in flammable and explosive working environment.
2、Compact and light structure, easy to carry; low procurement cost.
3、Low air consumption, low running cost.
4、Industrial material oil tank, 32# anti-wear hydraulic oil, can adapt to the harsh working environment.
5、Rated pressure of 70MPa, built-in safety relief valve, for overload protection.
6、The threaded hole of the oil outlet is 3/8 "NPTF, which is convenient for oil pipe or joint connection sealing.
7、The choice of seals makes the pump stable and long-lasting; simple maintenance and low cost of use.
8、High precision machining of fittings, good sealing performance, no leakage, good pressure retention.
