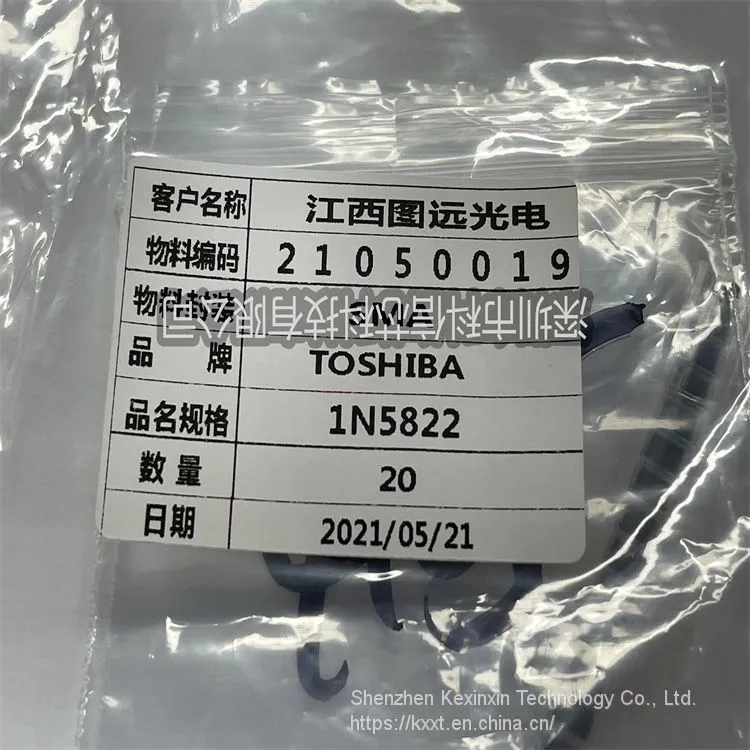

1N5822 SS34
BRAND: BORN

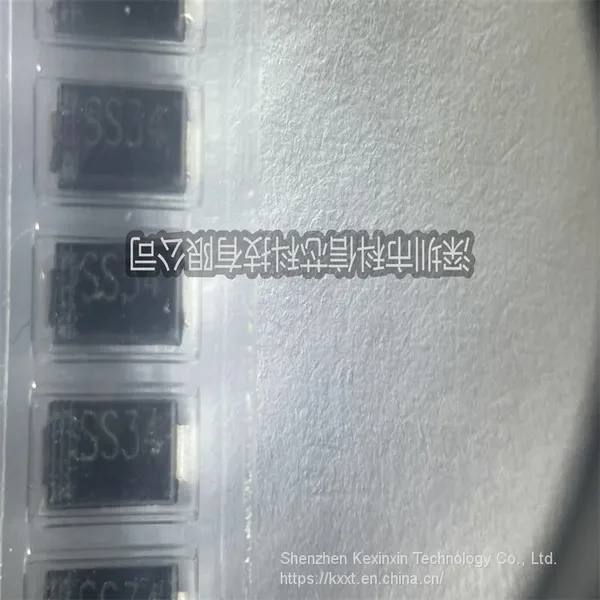

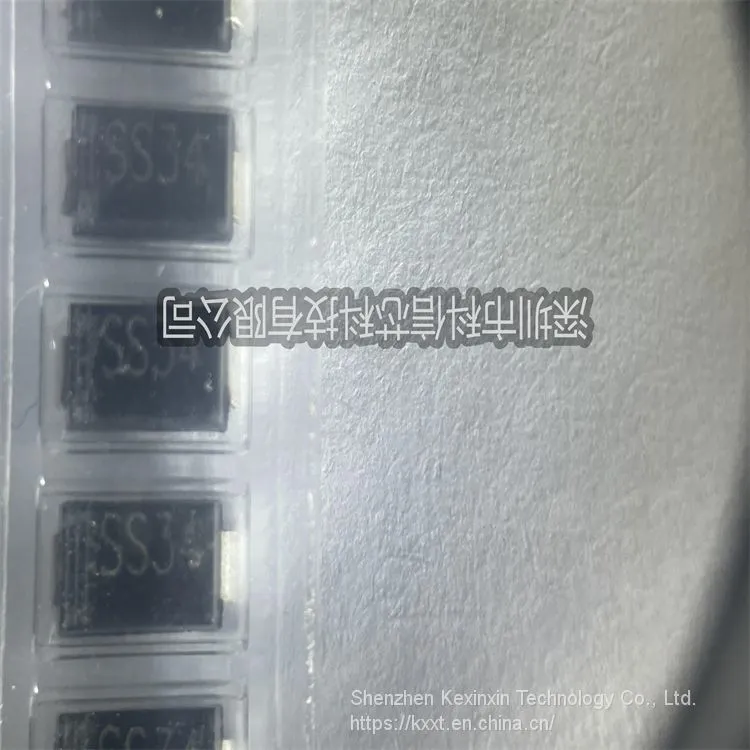

SMA Plastic SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SS32-310 SERIES
FEATURES
Schottky barrier rectifier
Guardring protection
Low forward voltage
Reverse energy tested
High current capability
Extremely low thermal resistance
MECHANICAL DATA
Case: SMA molded plastic body 1111
Polarity: Color band denotes cathode end
Mounting position: ANY
Weight: 0.002 ounces, 0.064 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified
Maximum repetitive peak reverse voltage：40v
Maximum RMS voltage：28v
Maximum DC blocking voltage：40v
Maximum average forward rectified current at
TL=90℃：3A
Peak forward surge current 8.3ms single
half-sine-wave：40A
Maximum instantaneous forward voltage
at IFM=1.0A (NOTE1)：0.5V
Maximum DC reverse current TJ=25℃：0.2A
at rated DC blocking voltage TJ=125℃：6A
Maximum thermal resistance：28℃/W
Operating temperature range：-55 ---- +125℃
Storage temperature range：-55 ---- +125℃
NOTE: 1.Pulse test: Pulse width 300us,duty cycle 1 %

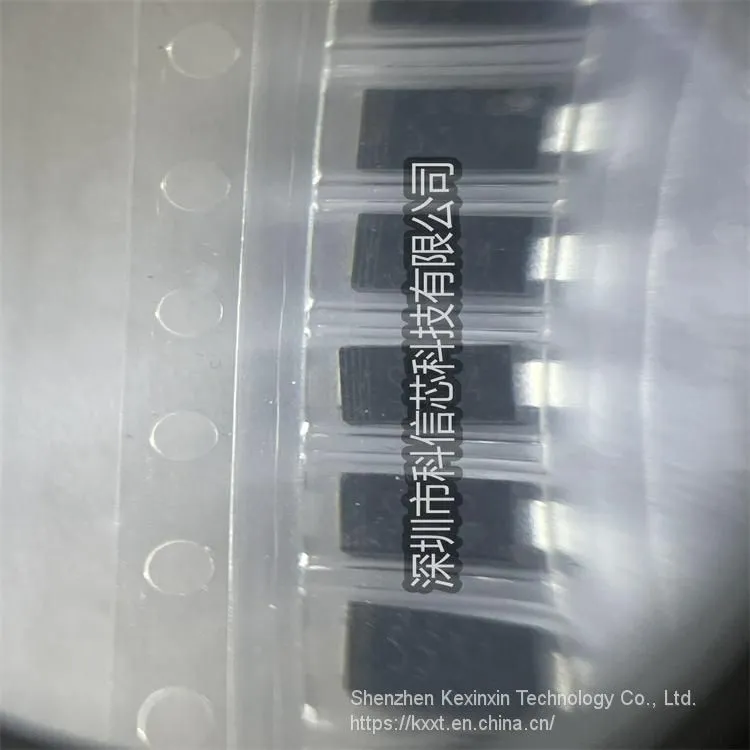

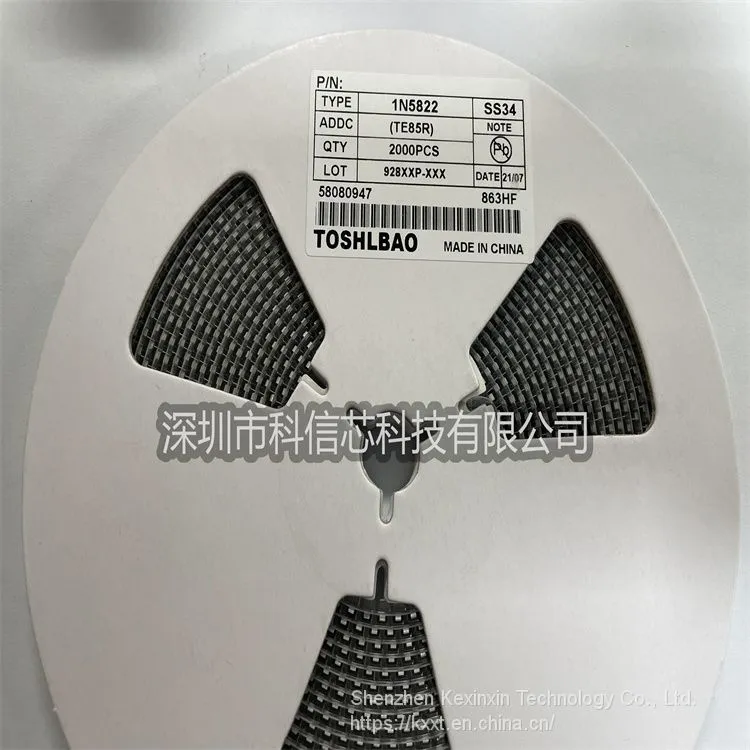

Factory Pack Quantity: 2000
