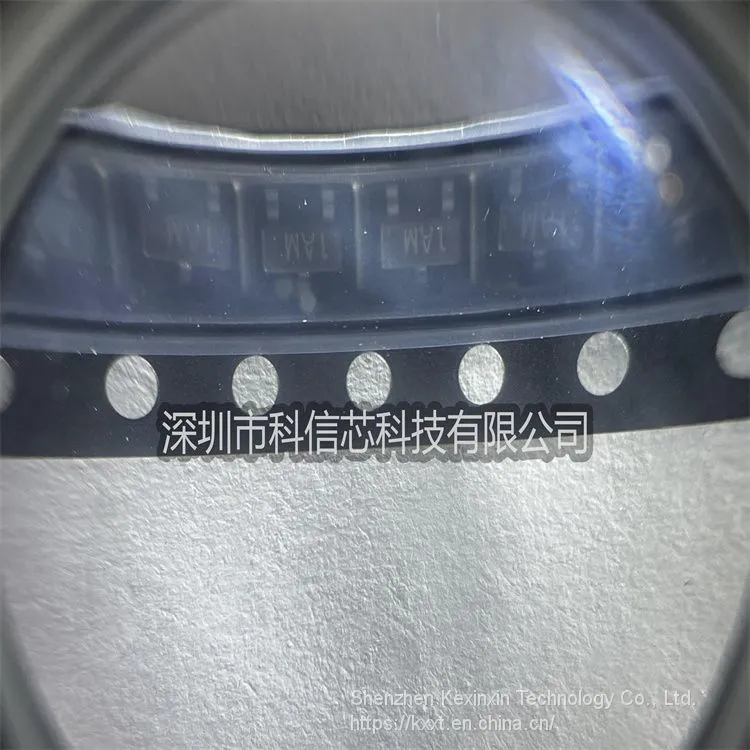

New and Original SOT-23 Plastic-Encapsulate Transistors MMBT3904

New and Original SOT-23 Plastic-Encapsulate Transistors MMBT3904 thumbnail-1
New and Original SOT-23 Plastic-Encapsulate Transistors MMBT3904 thumbnail-2
New and Original SOT-23 Plastic-Encapsulate Transistors MMBT3904 photo-1
New and Original SOT-23 Plastic-Encapsulate Transistors MMBT3904 photo-2
US$ 0.005 - 0.01 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MMBT3904
Place of Origin:
China
Model Number:
MMBT3904
Contact Supplier Request Quote Chat Now
Shenzhen Kexinxin Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MMBT3904
Place of Origin China
Model Number MMBT3904
Type Other

MMBT3904



JIANGSU CHANGJING ELECTRONICS



SOT-23 Plastic-Encapsulate Transistors



FEATURES

z Complementary to MMBT3906

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)



1AM= Device code

Solid dot = Green molding compound device,

if none, the normal device.

x=code



Collector-Base Voltage: 60V

Collector-Emitter Voltage: 40V

Emitter-Base Voltage: 6V

Collector Current: 200MA

Collector Power Dissipation : 200MW

Thermal Resistance From Junction To Ambient: 625℃/W

Operation Junction and Storage Temperature Range: -55～+150℃



ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)

Collector-base breakdown voltage: 60V

Collector-emitter breakdown voltage : 40V

Emitter-base breakdown voltage : 6V

Collector cut-off current: 50NA

Collector cut-off current: 100NA

Emitter cut-off current: 100NA



DC current gain

VCE=1V, IC=10mA : MIN. 100 MAX.300

VCE=1V, IC=50mA: 60

VCE=1V, IC=100mA: 30



Collector-emitter saturation voltage : 0.3V

Base-emitter saturation voltage: 0.95V

Transition frequency : 300 MHZ

Delay time: 35NS

Rise time: 35NS

Storage time : 200NS

Fall time: 50NS



CLASSIFICATION OF hFE(1)

RANK  L  RANGE: 100-200

RANK H RANGE: 200-300



Factory Pack Quantity: 3000





Product Tags: MMBT3904 , Integrateds Circuit , Electronic Components
