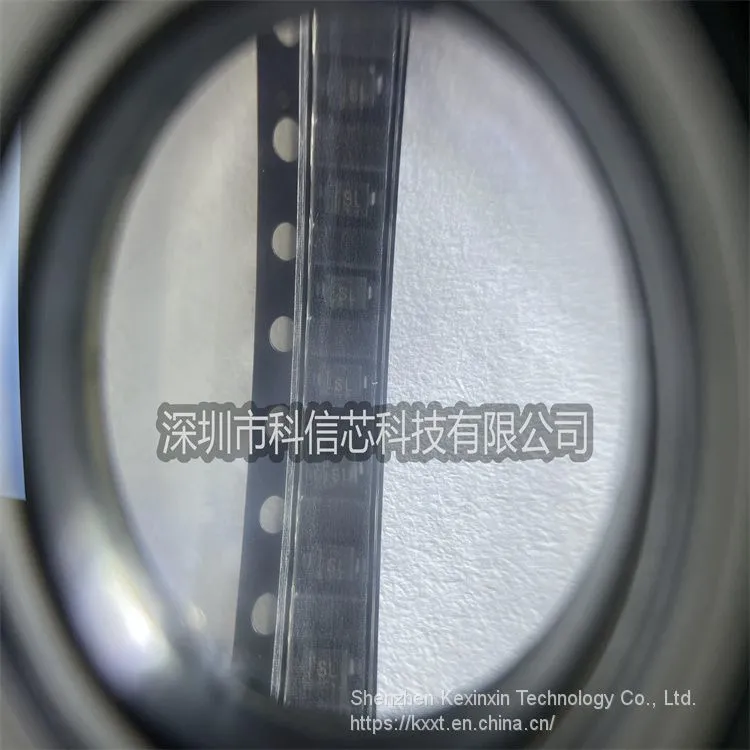

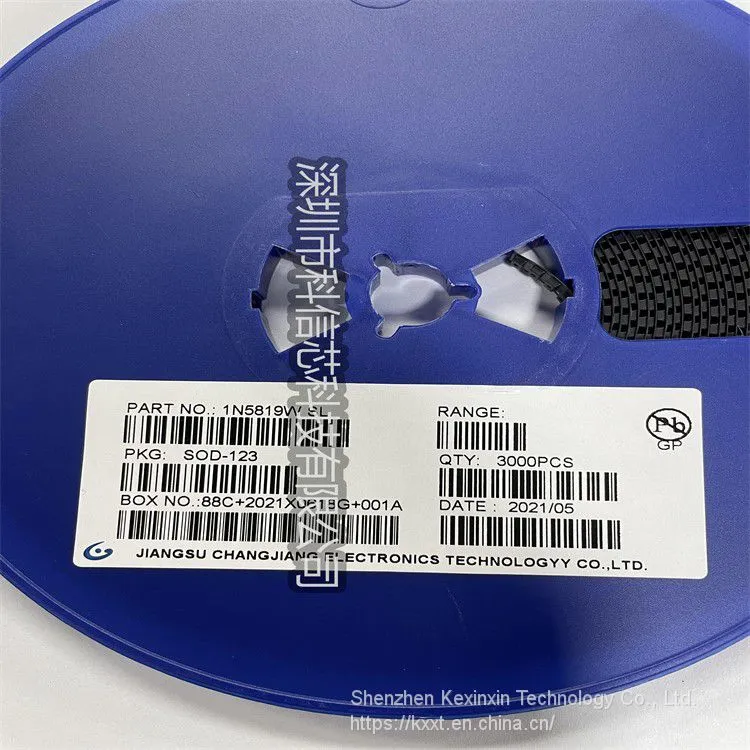

1N5819W
SCHOTTKY BARRIER RECTIFIERS
1N5817W THRU 1N5819W
FEATURES
Metal silicon junction, majority carrier conduction
Guarding for overvoltage protection
Low power loss, high efficiency
High current capability
low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
MECHANICAL DATA
Case: SOD-123
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight:16mg/0.00056oz
Maximum Ratings and Electrical characteristics
Ratings at 25 °C ambient temperature unless otherwise specified.
Maximum Repetitive Peak Reverse Voltage: 40v
Maximum RMS voltage: 28v
Maximum DC Blocking Voltage: 40v
Maximum Average Forward Rectified Current: 1a
Peak Forward Surge Current, 8.3ms Single Half Sine-wave: 25a
Superimposed On Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage
At 1a: 0.6v
at 3a: 0.9v
Maximum Instantaneous Reverse Current at
Rated DC Reverse Voltage
TA = 100°C: 10ma
TA = 25°C: 1ma
Typical Junction Capacitance: 110pf
Storage and Operating Junction Temperature Range: -55~+150°C
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads SOD-123
