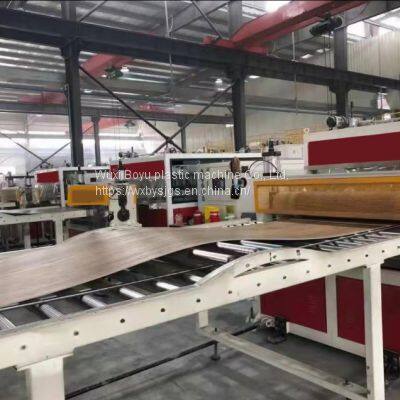

Wuxi Boyu 110 LVT Floor Production Line Equipment

Introduction to LVT flooring production line

1. Equipment introduction: The LVT flooring production line is a LVT flooring specialized equipment developed by our company based on the characteristics of the plastic composite flooring building materials market. We mainly produce LVT flooring with a width of 1200mm and a thickness of 1.2-3mm. Equipment features: high degree of automation, easy operation, stable and reliable production operation, and high yield.

2. Production process of LVT composite flooring:

PVC powder

PVC raw materials → ingredients → additives → mixer mixing → extruder (plasticizing) → mold → calender shaping → online composite → cooling material rack → longitudinal cutting → traction → transverse cutting → platform stacking → finished product.

3. Composition of LVT composite flooring production line:

A. 1 set of feeding system

B. 1 set of 1000/3000 high-speed mixing unit

C. 1 set of LVT conical twin screw extruder composite floor production line

D. One set of five roll rolling machine

E. 1 set of PVC color film and wear-resistant layer unwinding system

F. One set of five roll steel platform

G. 1 set of trimming tool holder

H. 1 set of sponge extruder

I. 1 set of air dryer

J. 1 set of traction machine

K. 1 set of LVT servo shearing machine

L. 1 set of electric elevator

M. 1 set of back sticking mechanism

4. Plant structure and water and electricity installation

(1) The main workshop has a height of 6 meters, a length of 45 meters, and a width of 6 meters; The mixing workshop and warehouse area is 12 meters * 6 meters; It is recommended that the planned area of the factory be no less than 1500 square meters.

(2) During the production process, equipment must be cooled. The cold air tower can be installed on an outdoor circulating water tank, with an installation area of 16 square meters and a height of 1 meter. It is connected to indoor equipment pipelines. The main pipeline can choose 2-1/2 or 3 steel pipes, and the branch pipes can be determined based on the water pump inlet on the equipment. The drainage pipeline can choose 110mm PVC pressure pipes. The cooling water (circulation) is 5-8 tons/hour.

(3) The drainage ditch under the production line shall be set up according to the installation diagram of the production line.

(4) The total installed capacity of production equipment is 400KW (one production line).

Introduction to LVT flooring

The LVT flooring production line produces LVT composite flooring through online composite production, which has the characteristics of flame retardant, moisture proof, mold proof, anti-static, wear-resistant, durable, easy to install, easy to maintain, rich styles, and diverse styles. LVT composite flooring can also be used as a surface composite layer for solid wood flooring, reinforced flooring, and WPC flooring. Replacing the current traditional rolling composite layer, simplifying the production process, reducing labor, and reducing production costs. LVT composite flooring consists of an upper wear-resistant layer (including UV treatment), a middle printed film layer, and a bottom PVC substrate layer. Composite flooring is widely used in indoor homes, schools, office buildings, factories, public places, supermarkets, businesses, sports venues, and other places due to its rich decor and diverse colors.

Our company is a high-tech manufacturer specializing in the research, development, and manufacturing of LVT plastic extrusion molding equipment. The company has a high-quality R&D team and an experienced team of mechanical and electrical debugging engineers, as well as a precedent mechanical processing base and a standardized assembly workshop. The company adheres to the corporate spirit of "persistent dedication, hard work and innovation", constantly exploring and squeezing out new fields for development.

Welcome domestic and foreign new and old customers to visit, guide, and cooperate with our company. We are willing to provide strong technical support for you.
