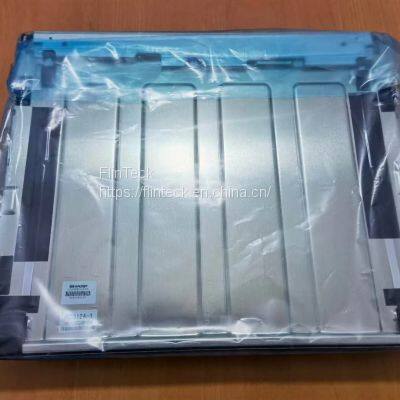

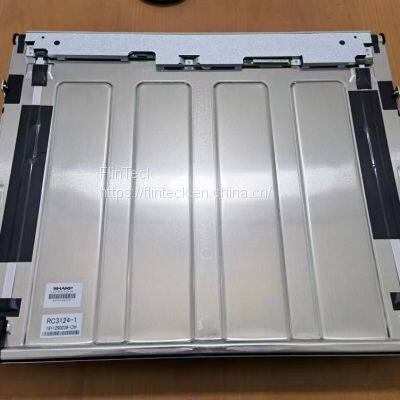

LQ190E1LX78 Sharp 19-inch LCD High Brightness 1200 Brightness

Manufacturer Sharp (Sharp)

Diagonal dimension 19.0 inch

The resolution is 1280(RGB)×1024 SXGA 86PPI.

The display area is 376.32 (h) × 301.056 (v) mm.

The visual size is 380.65 (h) × 306.5 (v) mm.

Display brightness is 1200 cd/m² (Typ.)

Angle of view

Viewing angle 85/85/85/85 (Typ.)(CR≥10)

Support color 16.7M, 100% sRGB.

Weight 2.30Kgs (Max.)

Frame frequency is 60Hz.

Model LQ190E1LX78

Type a-Si TFT-LCD

RGB vertical stripes of pixel arrangement liquid crystal module

The external dimension is 398.1 (h) × 329.5 (v) × 18.5 (d) mm.

Surface treatment fog surface (Haze 3%), Hard coating (3H)

Contrast 1500:1 (Typ.) (transmission)

Response time 35 (Typ.)(Tr+Td) ms

Operation mode ASV, normally black display, transmissive

Type of light source WLED, 60K hours, including LED driver.

be suitable for

Touch panel without touch.

Interface type 30 pins LVDS (2 ch, 8-bit), terminal

The voltage supply is 5.0V (Typ.)

Application environment

Working temperature:-20 ~ 65 C; Storage temperature:-25 ~ 70 C.
