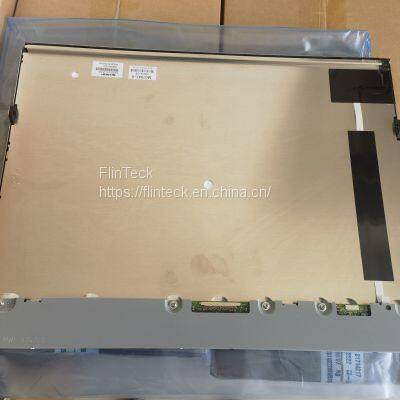

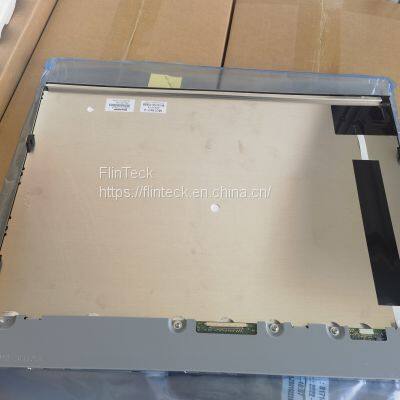

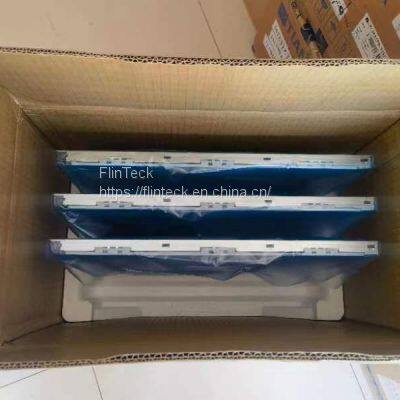

LQ201U1LW32 Sharp 20.1-inch LCD Screen

LQ210U1LW32

Panel brand Sharp

Panel size 20.1 inches

The number of pixels is 1600 (RGB) × 1200, UXGA, 99PP i.

Display area 408(W)×306(H) mm

The external dimension is 436 (w) × 335 (h) × 20.4 (d) mm.

Panel brightness 260 CD/m

Viewing angle 85/85/85/85 (Typ.)(CR≥10) Full viewing angle

Display color 16.7M

Working frequency 71% NTSC 60Hz

Weight 2.40Kgs (Max.)

Panel model LQ201U1LW32

Panel type a-Si TFT-LCD

Pixel layout liquid crystal module RGB vertical strip

Opening size is 413.2 (w) × 311.2 (h) mm.

Surface treatment of fog surface, Hard coating (2H)

Contrast ratio 1400:1 (Typ.)

Working mode (transmission) VA, normally black display, transmission type

Reaction time is 30 (typ.) (tr+TD) ms.

Lamp type WLED, 50K hours, including LED driver.

Touch-free screen

Panel application,

Signal interface terminal LVDS (2 ch, 8-bit), 30 pins

Screen driving voltage is 12.0V (Typ.)

Working environment, working temperature: 0 ~ 50 °C; Storage temperature:-25 ~ 60 C.
