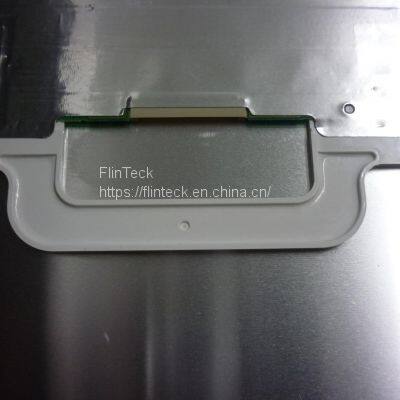

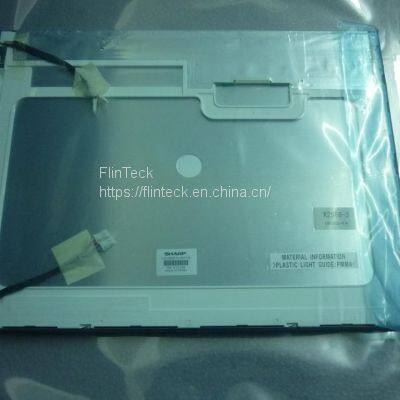

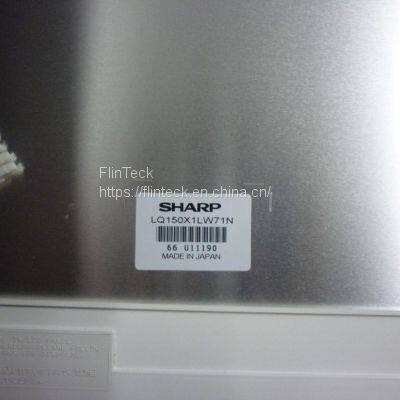

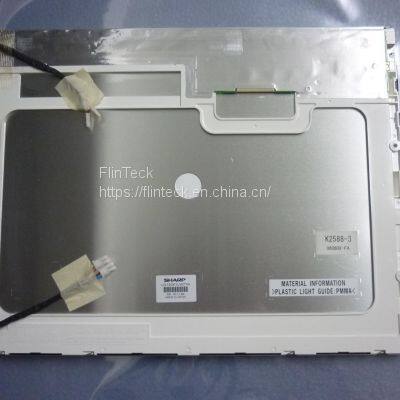

LQ150X1LW72 Sharp 15-inch LCD screen resolution 1024x768
Manufacturer Sharp (Sharp)
Model LQ150X1LW72
Diagonal dimension 15.0 inch
Type a-Si TFT-LCD, liquid crystal module
Resolution 1024(RGB)×768 XGA 85PPI
Pixel arrangement RGB vertical strip
The display area is 304.128 (horizontal) ×228.096 (vertical) mm.
The external dimension is 326.5 (horizontal) ×253.5 (vertical) ×10.1 (thickness) mm.
The opening area is 307.4 (horizontal) ×231.3 (vertical) mm.
Surface treatment fog surface (Haze 25%), Hard coating (3H)
Display brightness is 400 cd/m² (Typ.)
Contrast ratio 1500:1 (Typ.) (transmission)
Recommended perspective full perspective
Response time 35 (Typ.)(Tr+Td) ms
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Display mode ASV, normally black display, transmissive
Support color 262K/16.2M, 70% NTSC.
Type of light source WLED, 70K hours, including LED driver.
Application product with weight of 950g (Max.)
Frame frequency is 60Hz.
Touch technology without touch
Interface type 20 pins LVDS (1 ch, 6/8-bit), terminal
The voltage supply is 3.3V (Typ.)
Working temperature of application environment:-20 ~ 70 C; Storage temperature:-25 ~ 70 C.
