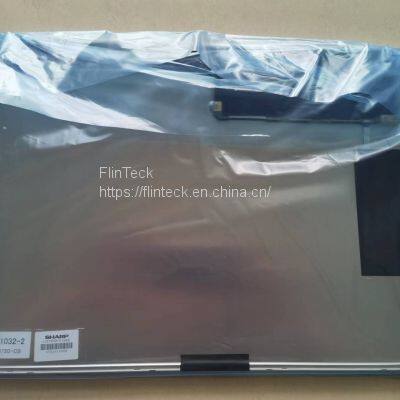

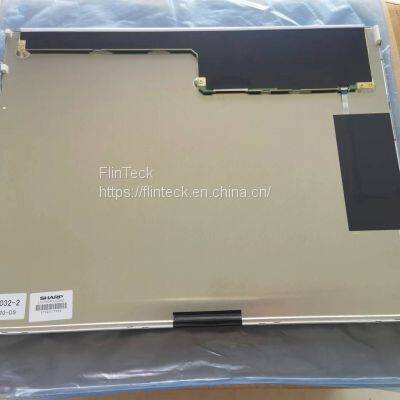

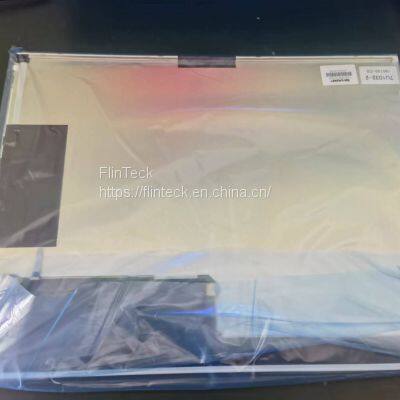

LQ150X1LG92 Sharp 15-inch LCD Screen

Panel brand Sharp

Panel model LQ150X1LG92

Panel size 15.0 inches

Panel type a-Si TFT-LCD, LCD module

The number of pixels is 1024(RGB)×768, XGA, 85PPI.

Pixel layout RGB vertical bar

The display area is 304.128 (width) ×228.096 (height) mm.

Visible area is 307.2 (width) ×231.1 (height) mm.

The external dimension is 326.5 (width) ×253.5 (height) ×10.1 (thickness) mm.

Surface treatment fog surface, Hard coating (3H)

Panel brightness 400 cd/m² (Typ.)

Contrast ratio 800:1 (Typ.) (TM)

Viewing angle 80/80/65/80 (Typ.)(CR≥10)

Working mode TN, normally white display, transmissive

Perspective-

The reaction time is 30 (Typ.)(Tr+Td).

Display color 16.2M, 70% NTSC

Type of light source WLED, 50K hours, including LED driver.

Working frequency 60Hz

Touch-free screen

Panel weight 950g (Max.) Panel application

Signal interface LVDS (1 ch, 8-bit), 20 pins, terminal

Screen driving voltage is 3.3V (Typ.).

Working environment: 0 ~ 70 °C; Storage:-30 ~ 80 c
