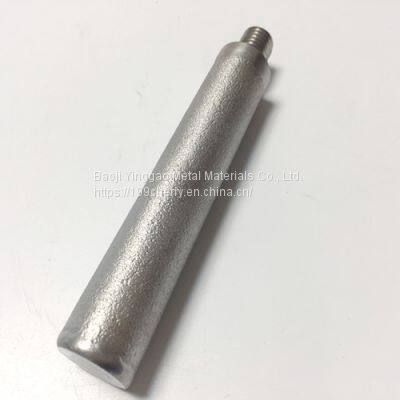

Powder Sintered Filter Elements for Filtration

Powder sintered filter elements for filtration are a type of porous filter made by sintering metal powders into a solid structure with interconnected pores. Powder sintered filter elements for filtration have a high surface area and are capable of filtering particles from liquids and gases. They are commonly used in applications where high temperatures and corrosive environments are present, such as in chemical processing, oil and gas refining, and power generation.

The pore size of powder sintered filter elements for filtration can be controlled by adjusting the particle size and distribution of the powders used and the sintering temperature and time. This allows for precise filtration of particles down to the submicron level.

Parameters

Brand: TOPTITECH

Material: titanium powder

Craft: sintering

Origin: Baoji, China

Size: customized

Features

1. Precise Filtration: Powder sintered filter elements can be designed with a specific pore size to provide precise filtration of particles and contaminants, down to the submicron level.

2. High Dirt Holding Capacity: Powder sintered filter elements have a high dirt holding capacity, meaning they can retain a large amount of particulate matter before requiring replacement or cleaning.

3. Reusability: Powder sintered filter elements can be easily cleaned and reused, making them a cost-effective solution in applications where frequent filter replacement is required.

4. Customizable Shapes and Sizes: Powder sintered filter elements can be manufactured in a range of shapes and sizes, including cylinders, discs, cones, and tubes, to fit specific applications and equipment.

Applications

Powder sintered filter elements are a versatile and effective solution for a wide range of filtration applications, particularly where high temperatures, corrosive environments, and precise filtration is required.

Chemical Processing: Powder sintered filter elements are used for the filtration of corrosive chemicals and solvents, such as acids, alkalis, and organic compounds. They are also used for the separation of catalysts and the purification of process streams.

Oil and Gas: Powder sintered filter elements are used in oil and gas processing for the removal of contaminants, such as sand, scale, and other solid particles. They are also used for the filtration of natural gas, as well as in fuel and hydraulic systems.

Food and Beverage: Powder sintered filter elements are used in the food and beverage industry for the filtration of liquids, such as juices, beer, and wine. They are also used for the removal of impurities and contaminants, such as bacteria and particles.

Pharmaceuticals: Powder sintered filter elements are used in the pharmaceutical industry for the filtration of liquids and gases in the manufacturing process of drugs and vaccines. They are also used for the removal of contaminants, such as bacteria, viruses, and particles.

Water Treatment: Powder sintered filter elements are used for the removal of impurities and contaminants in water treatment applications. They are used for the filtration of drinking water, wastewater, and industrial process water.

Interfaces

Powder sintered filter tubes can come with different types of interfaces or end fittings depending on the specific application and system requirements. Here are some of the common interface types of powder sintered filter tubes: Threaded Flanged Welded Compression Fitting Quick-Disconnect. Among theses interfaces, threaded interface is the most common used in application.

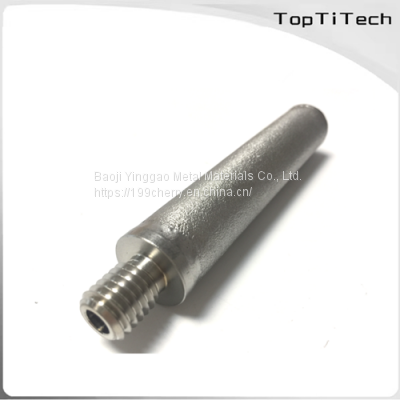

Threaded interface powder sintered filter tubes have threads on the ends of the tube that allow them to be screwed into a mating fitting or housing. This type of interface is commonly used in applications where a secure and leak-tight connection is required.

Why threaded interface?

Secure Connection: Threaded interfaces provide a secure and leak-tight connection between the filter tube and the mating fitting or housing. The threads allow the tube to be screwed in tightly, preventing any fluid or gas from leaking out.

Easy Installation: Threaded interfaces are easy to install and require minimal tools or equipment. The threaded ends of the filter tube can be easily screwed into the mating fitting or housing using a wrench or other tool.

Wide Availability: Threaded interfaces are widely available and compatible with many types of fittings and housings. This makes it easy to find and replace filter tubes as needed.

High Pressure Capability: Threaded interfaces are capable of handling high-pressure applications, making them suitable for use in systems with high flow rates and pressures.

Cost-Effective: Threaded interfaces are generally less expensive than other types of interfaces, such as flanged or welded. This makes them a cost-effective option for applications where a secure and leak-tight connection is required.

Overall, threaded interfaces provide a secure, easy-to-install, and cost-effective solution for powder sintered filter tubes in a wide range of applications, particularly those with high-pressure and high-flow requirements.
