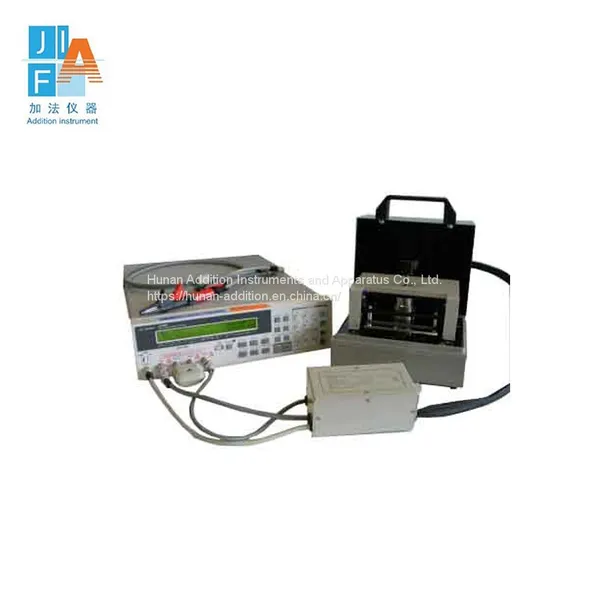

Grease Contact Resistance Tester

Product model: JF0596

Product Introduction

This instrument is suitable for measuring the contact resistance of grease, the principle is to apply the grease specimen on the plate electrode, the thickness of grease coating is 0.2mm, make contact with the hemispherical electrode, to ensure that the two poles between the force of 1.38N, and then determine the nodal resistance at high temperature, room temperature, low temperature, the difference between the contact resistance before and after greasing as the grease contact resistance value.

Technical Parameter

1. Applicable standards: SH/T0596

2. Heating method: Electric heater heating

3. Measurement range: 10μΩ~1.999kΩ

4. Cooling mode: compressor cooling

5. Loading weight: 1.38N

6. Temperature control range: 80～30℃,±0.5℃

7. Resistance display: Digital display

8. Electrode material: Brass

9. Power of the whole machine: 2KW

10. Working power supply: AC220V/50HZ

11. 12. Instrument size: 800*440*450mm

13. Net weight: 48KG

Features

1. Resistance values at high temperature, room temperature and low temperature can be measured at the same time;

2. Fully enclosed compressor refrigeration, large cooling capacity, unique compressor damping system, good noise reduction;

3. Microcomputer temperature controller, PID self-tuning, PT100 temperature sensor, high precision;

4. Digital display resistance value, display intuitive;

5. Brass electrode, high sensitivity;

6. Fixed loading device, improve test repeatability
