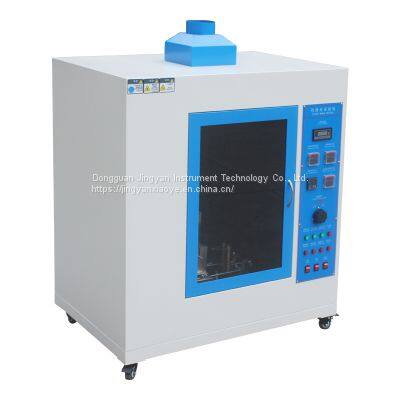

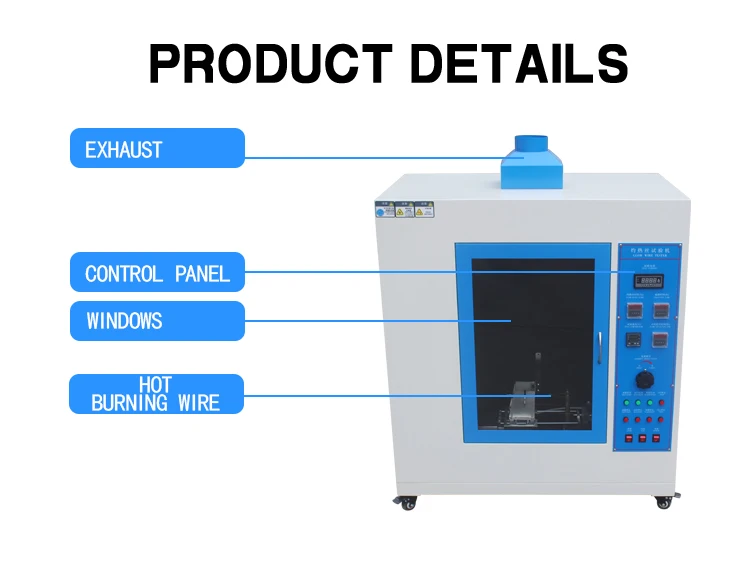

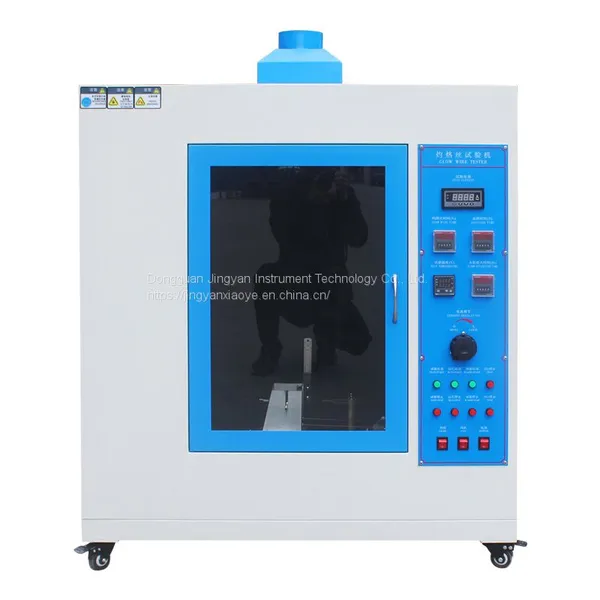

Help CenterGood Quality Glow Wire Tester Glow Wire Flammability Tester Combustion Testing Machine
Related Products
-
Instrument Flame Resistance Tester Needle Flame Test Chamber Plastic Combustion Testing MachineUS$ 1600 - 2500MOQ: 1 Set -
Most Popular Flammability Testing Chamber Burning Test Equipment Electronic Component Combustion Testing MachineUS$ 1600 - 2500MOQ: 1 Set
-
High Quality Combustion Test Chamber Flammability Tester Burning Testing EquipUS$ 1600 - 2500MOQ: 1 Set
-
IEC60695 Standard Horizontal Vertical Combustion Testing Machine U L 94 Burning TesterUS$ 1600 - 2000MOQ: 1 Set
-
JINGYAN Rubber Flammability Resistance Tester Plastics Flame Test Chamber Burning Test MachineUS$ 1600 - 2000MOQ: 1 Set
Application:
Glow Wire Tester is Suitable for lighting equipment, low voltage electric appliance,electrician instruments and material flammability testing, such as electrical and electronic products.
Specification:
Controller |
Button controller |
|
Glow wire |
diameter 4mm±0.04mmNi/Cr(80/20) |
|
Temperature range |
500-1000°C ±2°C continus adjustable |
|
Thermocouple |
diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~ 1100°C |
|
Searing Time |
30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable) |
|
Light-off Time |
0-999.9 s ± 0.1 s, automatic recording, manual timeout |
|
Fireouttime |
0-999.9 s ± 0.1 s, automatic recording, manual timeout |
|
Ironing into depth |
7mm ± 0.5 mm |
|
Sample pressure |
1N ± 0.2 N |
|
Test speed |
18±3mm/s |
|
Test background |
black background |
|
Test process |
automatic control, independent convulsions |
|
Chamber |
≥0.5m |
|
Size |
W1100mm×D700mm×H1300mm, exhaust hole Ø100mm can customize |
|

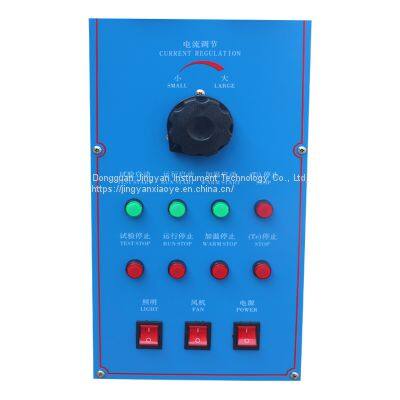

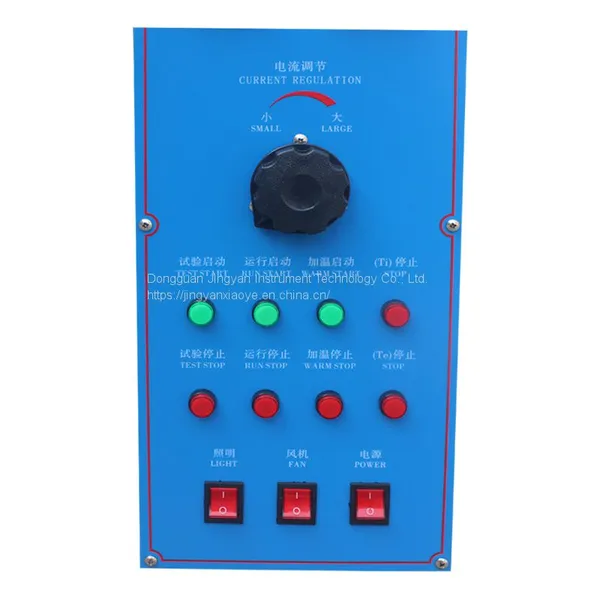

Control |
Using single chip microcomputer + touch screen control |
|
Consult standard |
GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A |
|
Power Supply |
800VA ,220V, 48-60Hz |
|
