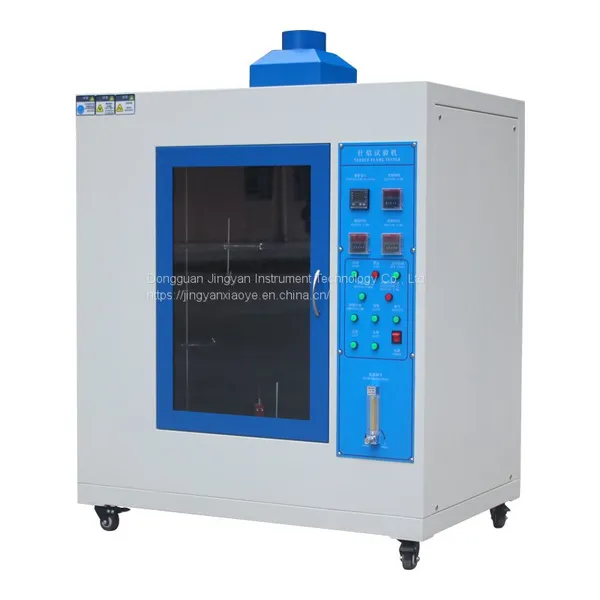

Help CenterLaboratory Test Equipment Needle Flame Tester Flammability Chamber
Related Products
-
Good Manufacturer Plastic Burning Testing Chamber Flame Test Chamber UL94 Flammability TesterUS$ 1600 - 3000MOQ: 1 Set -
IEC60695 Horizontal Vertical Burning Testing Chamber Combustion TesterUS$ 1600 - 3000MOQ: 1 Set
-
Manufacturer Wire Flame Retardant Testing Machine Glow Wire Combustion TesterUS$ 1600 - 2000MOQ: 1 Set
-
Good Quality Glow Wire Tester Glow Wire Flammability Tester Combustion Testing MachineUS$ 1600 - 2000MOQ: 1 Set
-
Instrument Flame Resistance Tester Needle Flame Test Chamber Plastic Combustion Testing MachineUS$ 1600 - 2500MOQ: 1 Set
Appliance:
Needle flame test instrument is suitable for lighting, low voltage electrical appliances, household appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology equipment, electrical business equipment, electrical fittings, accessories and other electrical and electronic equipment and components, components, research, production and quality inspection departments, can also be applied to insulation materials, engineering plastics industry or other solid combustible materials.
Standard:
GB4706.1, GB5169.5-2008, IEC 60695-2-2 IEC 60695-11-5 and ect. relevant standards.
Needle Burner |
the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm, |
Material |
stainless steel |
Burner Angle |
tilt 45 ° (test) or vertical (adjust the flame height) |
Application Time |
0-999 .9 s ± 0.1s adjustable (normally choose to 30s) |
Burning Duration |
0-999 .9 s ± 0.1s, auto record, manual suspension |
Flame Height |
12mm ± 1mm (with a height measurement apparatus) |
Burn Gas |
95% of the butane gas (Pressure:Less than 0.2MP) |
Temperature Measurement range |
0 ~ 1000 ℃ |
Flame Temperature Requirements |
from 100 ℃ ± 2 ℃ 700 ℃ ± 3 ℃ rise to the time |
Thermocouple |
Φ0.5mm (K type) |
Experimental Background |
black background |
Test Procedure |
automatic control |
Reference Standard |
IEC60695 -11-5-2004, GB/T5169.5-2008 |
Inside Dimension |
0.5 cubic meters, stainless steel chassis |
Equipment Dimensions |
1000mm wide × 650mm deep × 1300mm high |
Power Supply |
AC220V ± 5%, 50Hz, 0.3KVA |
