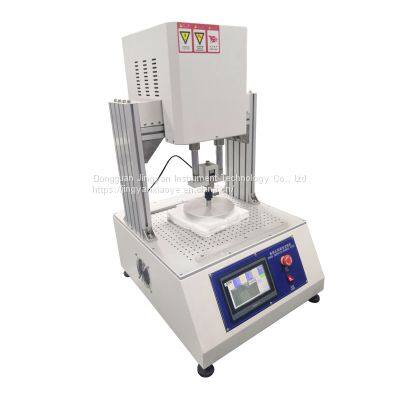

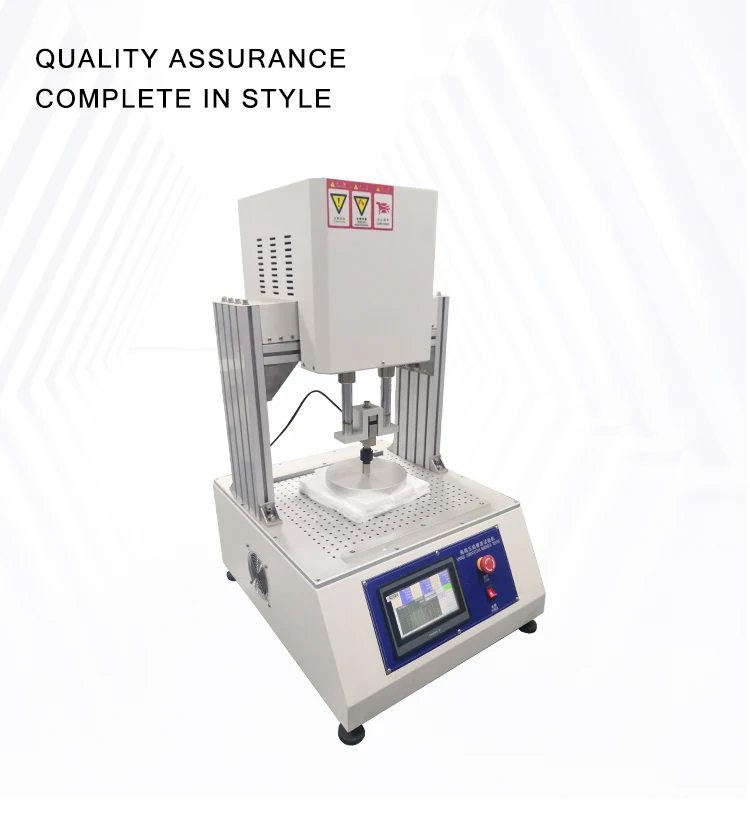

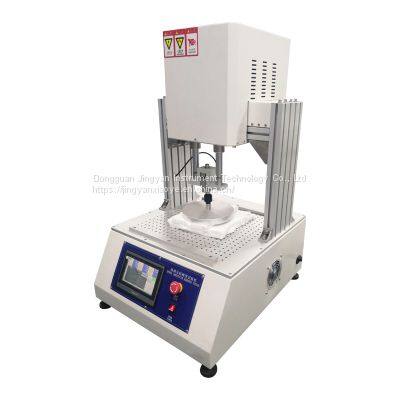

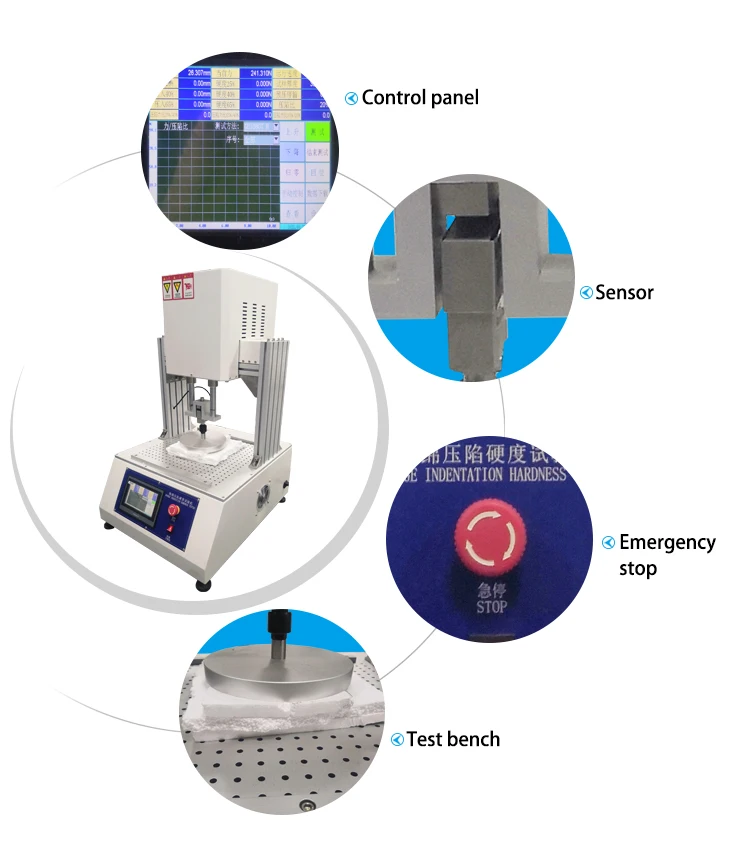

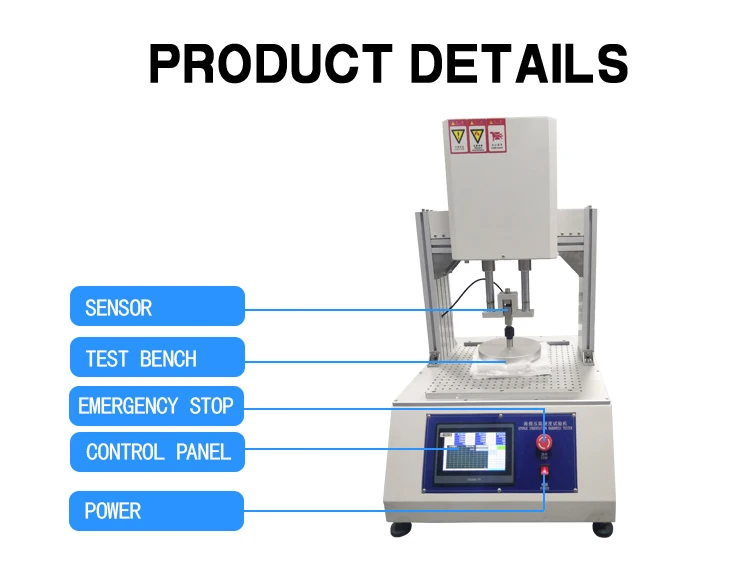

Help CenterISO 2439JIS EN Sponge Foam Compression Test Machine Sponge Hardness Testing Machine
Related Products
-
Falling Ball Rebound Testing Machine Polymeric Materials Tester Foam Sponge Rebound TesterUS$ 1500 - 2500MOQ: 1 Set -
High Quality Foam Drop Testing Machine Fall Ball Rebound Tester Ball Rebound Coefficient Test MachineUS$ 1500 - 2500MOQ: 1 Set
-
Polymeric Materials Fall Ball Rebound Testing Machine Foam Coefficient Tester Rebound Resilience TesterUS$ 1500 - 2500MOQ: 1 Set
-
Sponge Fatigue Tester Foam Hardness Test Machine Sponge Compression Test EquipmentUS$ 3000 - 5000MOQ: 1 Set
-
ASTM D3574 Foam Indentation Hardness Tester Sponge Testing Machine Fatigue TesterUS$ 3000 - 5000MOQ: 1 Set
Product Application:
Sponge /foam indentation hardness testing machine is also known as sponge, foam indentation hardness testing machine, tensile metallic and non-metallic, polymer materials, compression, bending, detection of low cycle fatigue and other projects can be according to customer product requirements according to GB, ISO, ASTM, JIS, EN and other standards for the preparation, to automatically strike the biggest test, fracture strength, yield strength, tensile strength, compressive strength, flexural strength, elastic modulus, elongation , constant elongation stress, elongation and other parameters given stress.
Standards:
GB/T10807-89;ISO 2439-1980;JISK6401;ASTM D3574;AS 2282.8 Method A-IFD Test.
Specification:

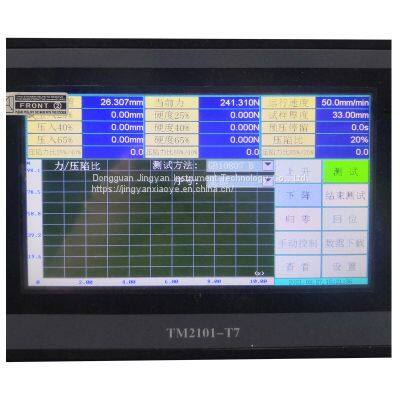

Sensing method | Force sensor automatic dispaly |
Load Cell Capacity | 300Kg |
Motor | Servo motor control system |
Unit switch | Kg,N,Lb |
Accuracy | 0.5 grade(±0.5%) |
Testing stroke | 200mm |
Test speed | 100±20mm/min |

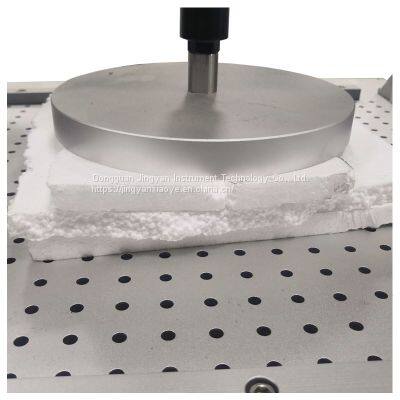

Size of upper compressing plate | Diameter 200mm |
Bottom Border-radius | R1mm |
Lower platform | 420mmx420mm |
Air hole diameter | 6.0mm |
Hole center gap | 20mm |
Specimen size | (380+10)mmx(380+10)mmx(50±3)mm |
Power | AC220V |
