SK series aero engine manufacturing customized large rotary precision assembly OEM ODM turnable

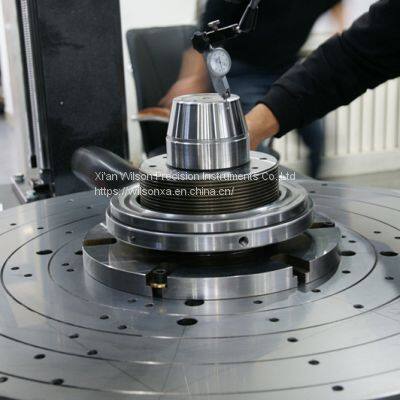

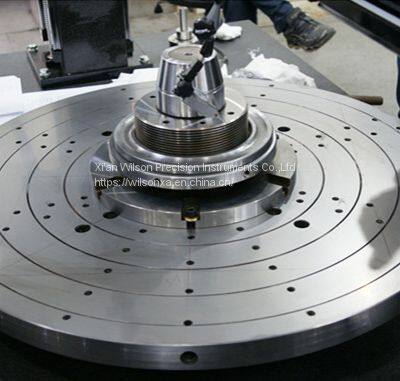

Wilson SK series precision assembly turnable is the definitive system for productivity improvement in turbine rotor assembly for large volume and heavy loads such as aircraft engines and gas turbines.
It is mainly used to measure the runout, extreme value position, concentricity, roundness, flatness, perpendicularity and coaxiality of aeroengine, ship engine and power station gas turbine casing, rotor, blade disc assembly, turbo disc, shaft parts and rotating body parts.
Measuring Functions:

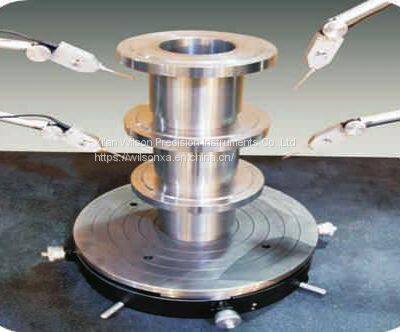

● Test geometric tolerances, such as jumping and concentricity of various cases, drum cylinders, discs, shafts and other parts;
● Test the parallelism, coaxial axis, verticality, etc. of the part assembly benchmark in the process of assembling, and give the comprehensive characteristic value of the revolution component;
● With an optimization algorithm, guide the assembly process of the revolution component to achieve the measurement needs of the optimization assembly of the revolution composition.
Measuring Principles:

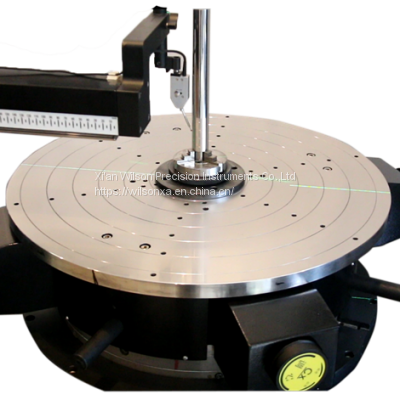

Using the high-precision air float rotary table as the measurement reference table, the measured rotor is driven to rotate evenly at a fixed speed, while the errors at different positions of the rotor are measured simultaneously and displayed in real time by high-precision sensors, and the measurement results are finally analyzed and obtained automatically by computer software.
Customizable Items:
Column
Guide rail
Main axis
Software
Worktable
Normal Technical Parameters:
Item |
Parameter |
Rotary table diameter |
500~2000mm |
Parts turning diameter |
600~2400mm |
Rotary table load capacity |
100~2000Kg |
Max measuring height |
500~2500mm |
Axis radial rotation error |
≤0.2μm |
Worktable runout |
≤10μm（φ 800） |
Worktable flatness |
≤8μm（φ 800） |
Centering and leveling table |
Auto/Manual(optional) |
