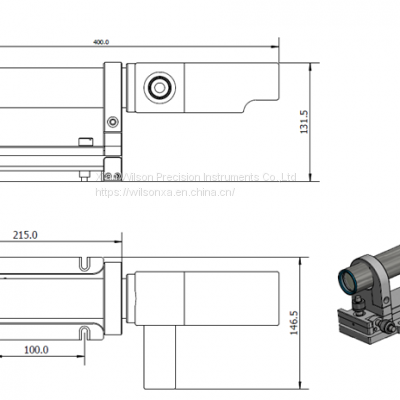

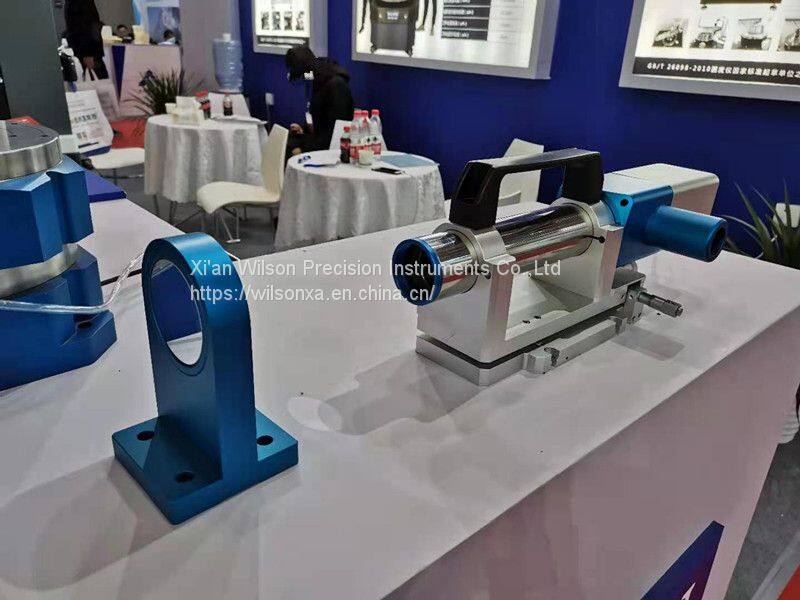

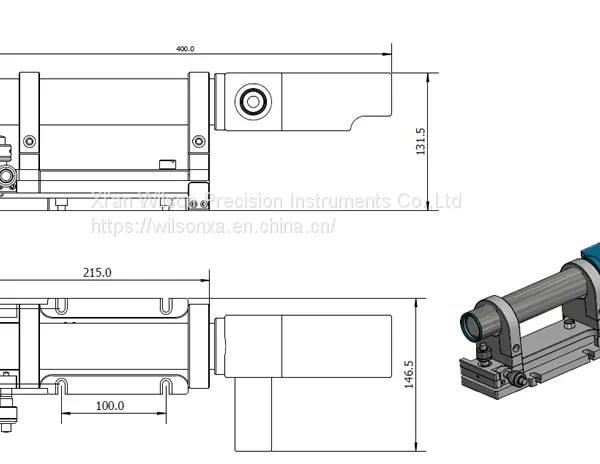

China cost-effective photoelectric optical small angle self-collimator
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Main Functions:
TK series photoelectric self-collimator is a cost-effective optical small angle measuring instrument developed based on our nearly 20 years of measurement experience, with the advantages of high accuracy, good stability, easy to carry.
The standard accessories of our self-collimator are: self-collimator mainframe, adjustable base, reflector, high performance light source, finder, measurement software, etc. The instrument host and light source adopt USB communication interface, which is easy to use and operate and enhances the measurement efficiency.
Main Features:
● Simultaneous measurement of X and Y axes
● Large measurement market range
● Highly accurate industrial probes
● Easy-to-understand software measurement interface
● Provide professional pre-sales and after-sales service and operation training service
Application Field:
It is widely used in many fields, such as metrology department, aerospace, shipbuilding and machine tools commissioning.
Product Parameter
Item/Product Model | TK100 | TK200 | TK300 | |
Resolution | 0.01″ | 0.01″ | 0.01″ | |
Repeatability | 0.1″ | 0.04″ | 0.02″ | |
Focus | 300mm | |||
Aperture | φ36mm | |||
Accuracy | Within ±20″ | ±0.5″ | ±0.2″ | ±0.1″ |
Within ±600″ | ±1″ | ±0.4″ | ±0.2″ | |
FOV | X | 1200″ | 1200″ | 1200″ |
Y | 1600″ | 1600″ | 1600″ | |
