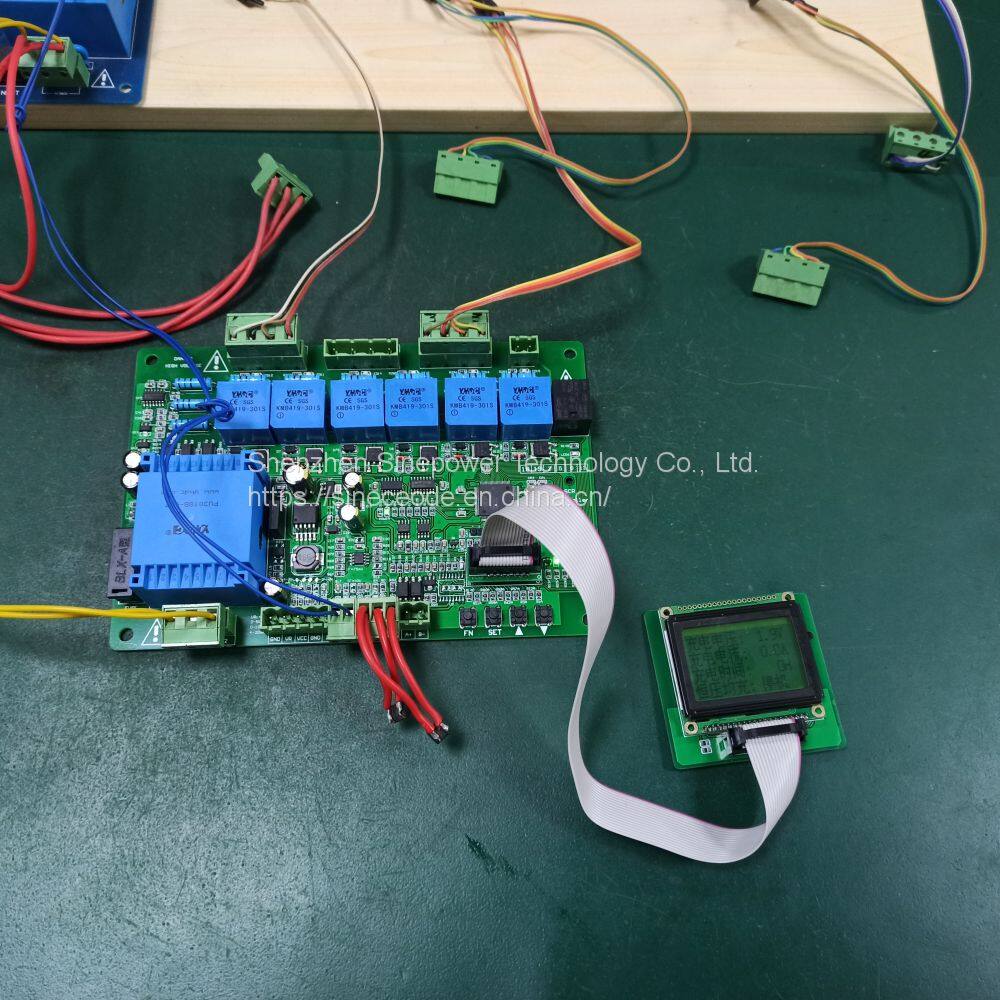

Single Phase Battery Charger Thyristor Control Card/ SCR Firing Card

Technical specifications:
◆ Working power supply: 380Vac ±15%, 50/60HZ
◆ Main circuit working voltage: 50～380Vac ±15%, 50/60HZ
◆ Voltage adjustment range: 1 ~ 300V
◆ Current adjustment range: 1 ~ 300A
◆ Display mode: LCD screen interface
◆ Phase shift range: 0~178°
   Adjust output resolution: 1/4000
   Stability accuracy: better than ±1%
◆ Trigger current: ≥ 750mA
   Trigger capacity: ≤ 1000A thyristor
◆ PID dynamic response time: ≤50mS
   Overshoot: ≤10%
◆ Input signal: DC0-5V, DC0-10V, 0-10mA, 4-20mA, 10K potentiometer adjustment
◆ Applicable load: battery charging control
◆ Alarm relay contact capacity: 250Vac/10A
◆ Dielectric strength: 3500 VRMS
◆ Working environment conditions:
   Ambient temperature: -20°C~ 60°C
   Relative humidity: ≤ 90% RH (no frost)
   Indoor installation: no flammable, no explosive, no corrosive gas, no conductive dust, vibration less than 0.5G
   Altitude should be less than 3000 meters, more than 3000 meters should reduce the capacity level.
◆ Dimensions: 190 * 130 * 35mm
   Install size: 178 * 118mm
◆ Weight: 0.8KG
