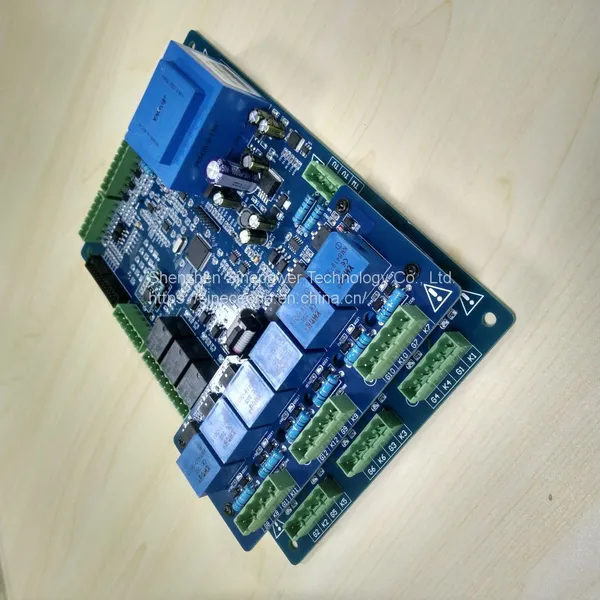

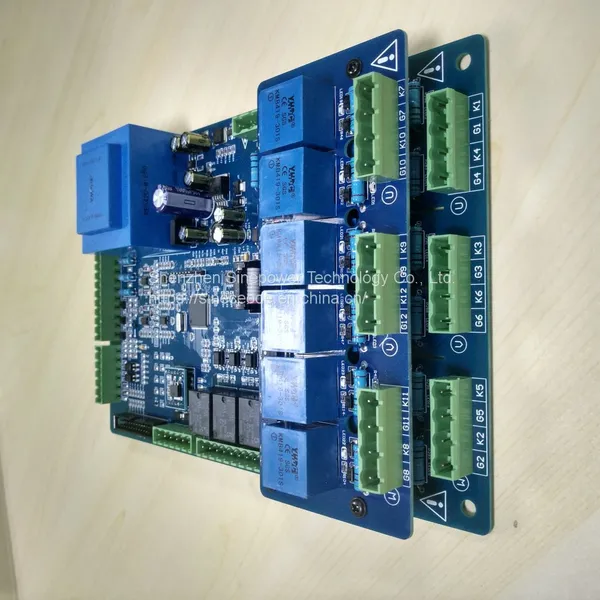

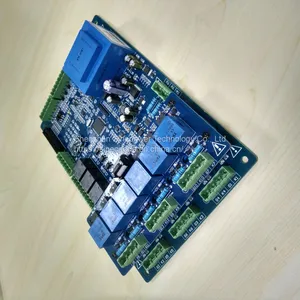

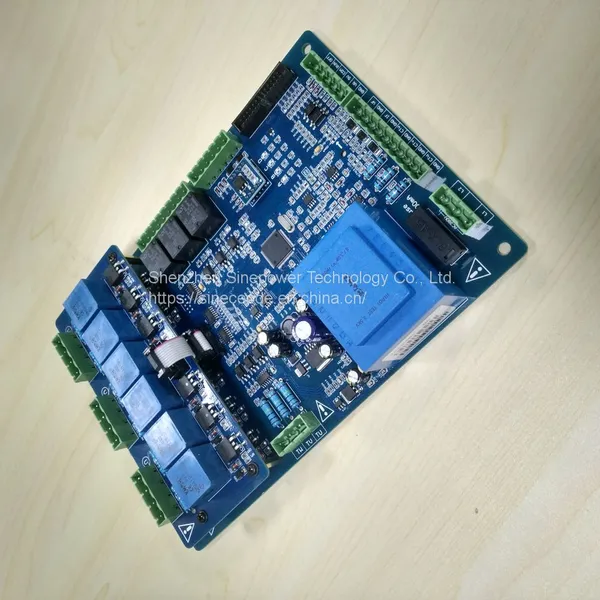

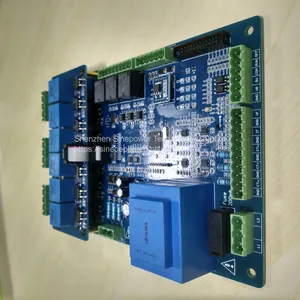

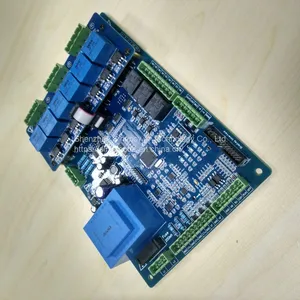

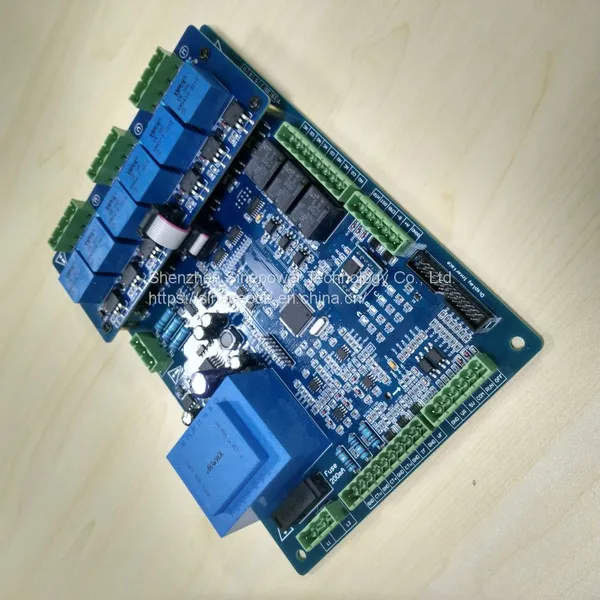

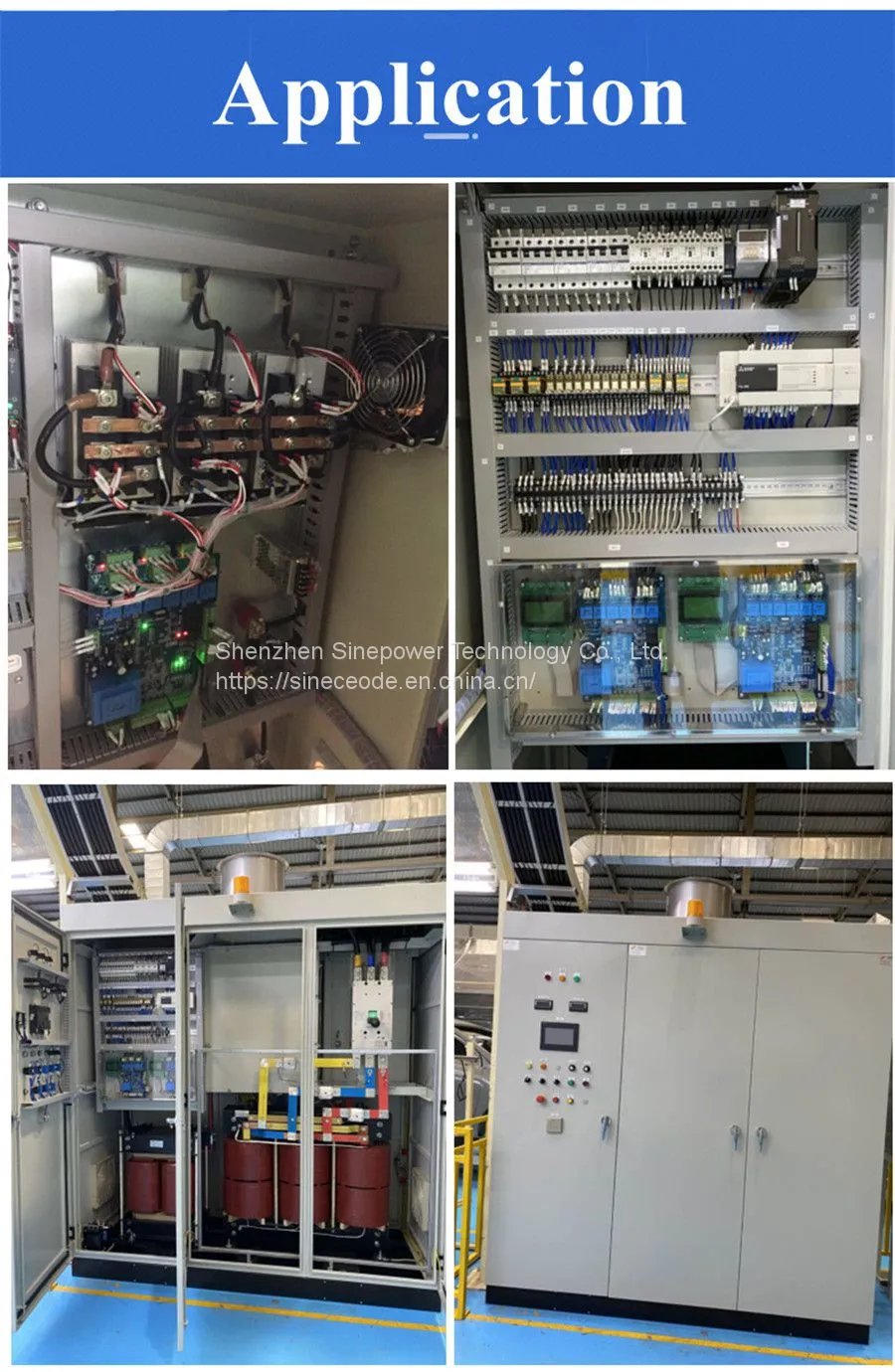

Help Center12 Pulse Thyristor Control Board for 5000Amps DC Rectifier
Related Products
-
Battery Charger Control Board/ Charging & Discharging SCR Firing CardNegotiableMOQ: 1 Piece -
Single Phase Thyristor Control Card/ SCR Firing Card/ Power RegulatorNegotiableMOQ: 1 Piece
-
Reversiable Forward & Backward Polarity Control Thyristor/SCR Control Board for 5000Amps DC RectifierNegotiableMOQ: 1 Piece
-
Single Phase Battery Charger Thyristor Control Card/ SCR Firing CardNegotiableMOQ: 1 Piece
-
Thyristor/SCR Parallel Control Use CardNegotiableMOQ: 1 Set
Technical Specifications
◆ Working power supply: 220/380Vac ±15%, 50/60HZ
◆ Main circuit working voltage: 50~660Vac ±15%, 50/60HZ
◆ Voltage adjustment range: 0 ~ 100%
◆ Current adjustment range: 0 ~ 100%
◆ Display methods: LCD or touch screen
◆ Phase shift range: 0~178°
◆ Adjust output resolution: 1/4000
◆ Stability accuracy: better than ±1% or 1V
◆ Trigger current: ≥ 750mA
◆ Trigger capacity: ≤ 5000A thyristor
◆ PID dynamic response time: ≤ 50mS
◆ Overshoot: ≤ 10%
◆ Input signal: DC0-5V or DC0-10V or 0-10mA or 4-20mA or 10K potentiometer adjustment (Pls express which you need)
◆ Three-phase trigger imbalance: ≤ 0.3°
◆ Applicable load: Resistive, inductive, transformer load and other loads
◆ Alarm relay contact capacity: 250Vac/10A
◆ Dielectric strength(voltage isolation): 3500 Vac for 1 minute
◆ Ambient (working) temperature: -20°C~ 60°C
◆ Working Relative humidity: ≤ 90% RH (no frost)
◆ Indoor installation requirements: no flammable, no explosive, no corrosive gas, no conductive dust, and vibration should be less than 0.5G
◆ Dimensions: 240 * 160 * 50mm
◆ Dimensions between install holes: 225 * 145mm
◆ Weight: 1.3 KG
ST36 meets the standard:
IEC60947-4-2: Low-voltage switchgear and controlgear. Part 4-2: Contactors and motor-starters. AC semiconductor motor Controllers and starters.
GB14048.6-1998: Low-voltage switchgear and controlgear Part 4-2: Contactors and motor starters AC semiconductor motor controllers and starters.
GB3797-89: Electronic Control Equipment Part II - Electronic Control Equipment with Electronic Devices.
IEC61000-4: Electromagnetic compatibility, test and measurement technology.
IEC65: Safety of household and similar general purpose electronic and related equipment powered by grid power.

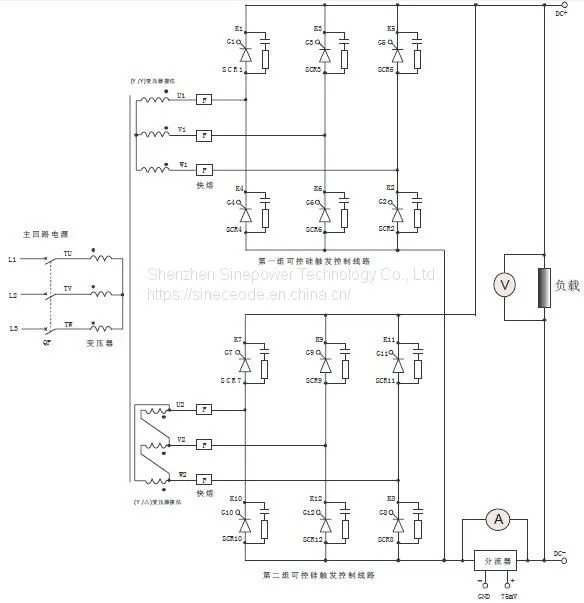

ST36 12 pulse thyristor control board wiring diagram
