Technical specifications：
◆ Working power: 380Vac ±15% 50/60HZ
◆ The main circuit working voltage: 50 ~ 380Vac ± 15% 50 / 60HZ
◆ Voltage adjustment range: 1 ~ 300V (Can be open to higher voltage)
◆ Current adjustment range: 1 ~ 300A (Can be open to higher current)
◆ Phase shift range: 0 ~ 178 °
Adjust the output resolution: 1 / 4000
Stability accuracy: better than ± 1%
◆ Trigger current: ≥ 750mA trigger capacity: ≤ 1000A one-way thyristor
◆ PID dynamic response time: ≤ 50mS overshoot: ≤ 10%
◆ Input signal: DC0-5V, DC0-10V, 0-10mA, 4-20mA, 10K potentiometer adjustment
◆ Three-phase trigger imbalance: ≤ 0.3 °
◆ Applicable load: battery charge and discharge control
◆ Alarm relay contact capacity: 250Vac/10A
◆ Dielectric strength: 3500 VRMS
◆ Working environment conditions:
Ambient temperature: -20°C~ 60°C
Relative humidity: ≤ 90% RH (no frost)
Indoor installation: no flammable, no explosive, no corrosive gas, no conductive dust, vibration less than 0.5G
Altitude should be under 3000m, otherwise need to reduce the capacity level.2.14.

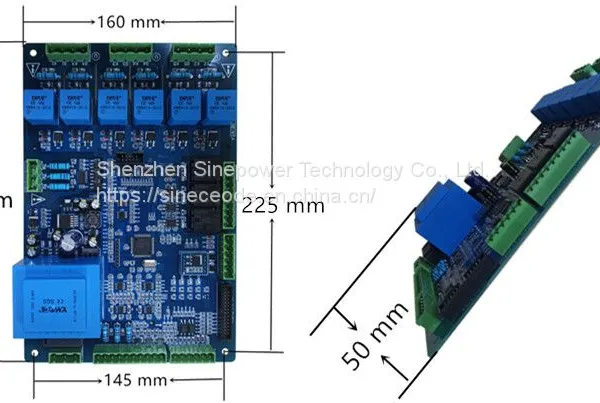

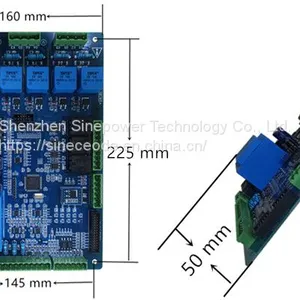

◆ Dimensions: 240 * 160 * 50mm
◆ Dimension between install holes: 225 * 145mm
◆ Weight: 1KG
