Rated Working Pressure: 5000psi～15000psi
Temperature Range for Metallic Materials: -59℃～+177℃
Temperature Range for Nonmetallic Sealing Materials: -26℃～+177℃
Performance Requirement: PR1、PR2
Product Description

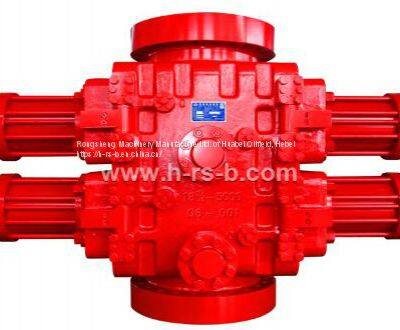

RS Ram BOP Nominal Bore Size Designation: 18 3/4″
Model | Gals to Open (1 set) | Gals to Close (1 set) | Closing Ratio | Assembly Dimension (in) | Approx Weight（lb） | ||||||
Length (L) | Width (W) | Height (H) | |||||||||
Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
18 3/4″-5,000psi（Single RS-CS） | 11.66 | 13.64 | 6.8 | 134.57 | 52.17 | 48.90 | 28.35 | 40.00 | 20657 | 18563 | 19390 |
18 3/4″-5,000psi（Double RS-CS） | 11.66 | 13.64 | 6.8 | 134.57 | 52.17 | 70.75 | 50.20 | 59.88 | 37302 | 35208 | 35814 |
18 3/4″-10,000psi（Single RS-FS） | 17.60 | 19.14 | 7.2 | 183.43 | 49.21 | 56.30 | 28.15 | 42.52 | 32304 | 26735 | 29299 |
18 3/4″-10,000psi (Double RS-FS) | 17.60 | 19.14 | 7.2 | 183.43 | 49.21 | 86.61 | 58.27 | 72.32 | 65050 | 59481 | 62045 |
※ RS- CS: Casting Shear
※ RS-FS: Forging Shear
