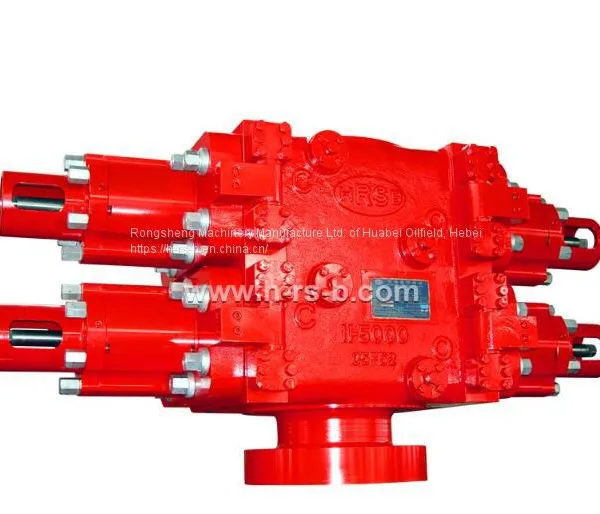

Ram BOP Bore Size: 11"
- 1000 Set / Sets per Month
- Tianjin,Shanghai,Qingdao
- T/T L/C
Product Details
Brand Name: | HRSB | Place of Origin: | China | Use: | Well Drilling |
Product Description
Rated Working Pressure: 3000psi~20000psi
Temperature Range for Metallic Materials: -59℃~+177℃
Performance Requirement: PR1、PR2
Product Description
RS Ram BOP Nominal Bore Size Designation: 11″
Model | Gals to Open (1 set) | Gals to Close (1 set) | Closing Ratio | Assembly Dimension (in) | Approx Weight(lb) | ||||||
Length (L) | Width (W) | Height (H) | |||||||||
Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
11″-3,000psi(Single RS-C) | 2.80 | 3.17 | 6.0 | 81.50 | 29.72 | 27.17 | 15.98 | 22.60 | 4057 | 3594 | 3825 |
11″-3,000psi(Double RS-C) | 2.80 | 3.17 | 6.0 | 81.50 | 29.72 | 44.09 | 31.50 | 37.68 | 8289 | 7826 | 8058 |
11″-3,000psi(Single RS-CS) | 5.81 | 6.34 | 11.1 | 84.41 | 28.54 | 29.21 | 15.98 | 22.60 | 5093 | 4123 | 4603 |
11″-3,000psi(Double RS-CS) | 5.81 | 6.34 | 11.1 | 84.41 | 28.54 | 44.29 | 31.06 | 37.68 | 9844 | 8885 | 9539 |
11″-3,000psi(Single RS-FS) | 6.87 | 7.13 | 11.9 | 123.70 | 30.87 | 30.16 | 18.90 | 24.53 | 6622 | 6160 | 6391 |
11″-3,000psi(Double RS-FS) | 6.87 | 7.13 | 11.9 | 123.70 | 30.87 | 49.84 | 37.01 | 43.23 | 14827 | 13935 | 14370 |
11″-5,000psi(Single RS-C) | 2.72 | 3.12 | 6.0 | 83.46 | 34.06 | 35.43 | 17.13 | 26.38 | 5483 | 4482 | 4982 |
11″-5,000psi(Double RS-C) | 2.72 | 3.12 | 6.0 | 83.46 | 34.06 | 51.18 | 32.68 | 44.93 | 9899 | 8896 | 9396 |
11″-5,000psi(Single RS-CS) | 5.81 | 6.34 | 11.1 | 87.87 | 34.06 | 35.43 | 17.13 | 26.38 | 6296 | 5252 | 5774 |
11″-5,000psi(Double RS-CS) | 5.81 | 6.34 | 11.1 | 87.87 | 34.06 | 51.18 | 32.68 | 44.93 | 11552 | 10507 | 11030 |
11″-5,000psi(Single RS-FS) | 6.87 | 7.13 | 11.1 | 122.91 | 32.80 | 38.27 | 23.70 | 30.98 | 8840 | 7850 | 8331 |
11″-5,000psi(Double RS-FS) | 6.87 | 7.13 | 11.1 | 122.91 | 32.80 | 57.95 | 41.14 | 48.23 | 16085 | 15050 | 15543 |
11″-10,000psi(Single RS-C) | 3.43 | 3.88 | 7.7 | 88.58 | 40.16 | 40.94 | 22.28 | 31.61 | 9733 | 8480 | 9105 |
11″-10,000psi(Double RS-C) | 3.43 | 3.88 | 7.7 | 88.58 | 40.16 | 57.87 | 39.21 | 48.54 | 17042 | 15850 | 16446 |
11″-10,000psi(Single RS-CS) | 7.93 | 8.72 | 9.6 | 96.26 | 40.16 | 40.94 | 22.28 | 31.61 | 9800 | 8541 | 9171 |
11″-10,000psi(Double RS-CS) | 7.93 | 8.72 | 9.6 | 96.26 | 40.16 | 57.87 | 39.21 | 48.54 | 17174 | 15906 | 16536 |
11″-10,000psi(Single RS-FS) | 9.25 | 10.57 | 15.9 | 127.64 | 35.43 | 39.96 | 20.67 | 30.31 | 10370 | 8933 | 9656 |
11″-10,000psi(Double RS-FS) | 9.25 | 10.57 | 15.9 | 127.64 | 35.43 | 60.83 | 41.14 | 50.79 | 19786 | 18298 | 19003 |
11″-15,000psi(Single RS-FS) | 7.93 | 8.45 | 9.6 | 130.47 | 39.41 | 49.80 | 28.54 | 37.91 | 16331 | 13488 | 14810 |
11″-15,000psi(Double RS-FS) | 7.93 | 8.45 | 9.6 | 130.47 | 39.41 | 75.20 | 53.94 | 62.99 | 28827 | 25983 | 27305 |
※ RS-C: Casting RS- CS: Casting Shear
※ RS-F: Forging RS-FS: Forging Shear
RS Ram BOP With Tandem Boosters Nominal Bore Size Designation: 11″
Model | Gals to Open (1 set) | Gals to Close (1 set) | Closing Ratio / Shearing Ratio | Assembly Dimension (in) | Approx Weight(lb) | ||||||
Length (L) | Width (W) | Height (H) | |||||||||
Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
11″-3,000psi(Single RS-CS) | 5.81 | 6.34 | 11.1/18.4 | 142.68 | 28.54 | 29.96 | 16.73 | 23.35 | 6955 | 6493 | 6724 |
11″-3,000psi(Single RS-FS) | 6.87 | 7.13 | 11.9/24.5 | 155.28 | 30.87 | 49.84 | 37.01 | 43.23 | 9520 | 8925 | 9220 |
11″-5,000psi(Single RS-CS) | 5.81 | 6.34 | 11.1/18.4 | 142.68 | 34.06 | 35.43 | 17.13 | 26.38 | 7685 | 6645 | 7165 |
11″-5,000psi(Single RS-FS) | 6.87 | 7.13 | 11.1/20.4 | 169.53 | 32.80 | 38.27 | 23.70 | 30.98 | 10565 | 9376 | 9862 |
11″-10,000psi(Single RS-FS) | 9.25 | 10.57 | 15.9/23.7 | 173.43 | 35.43 | 39.96 | 20.67 | 30.31 | 11735 | 10305 | 11020 |
11″-15,000psi(Single RS-FS) | 7.93 | 13.21 | 9.6/14.2 | 176.54 | 39.41 | 49.80 | 28.54 | 37.91 | 17759 | 14915 | 16237 |
※ RS- CS: Casting Shear
※ RS-FS: Forging Shear
