High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads

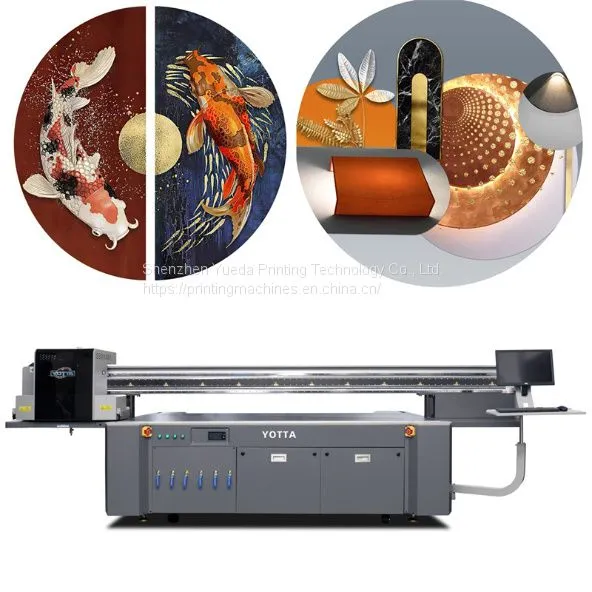

High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads photo-1
High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads photo-2
High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads photo-3
High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads photo-4

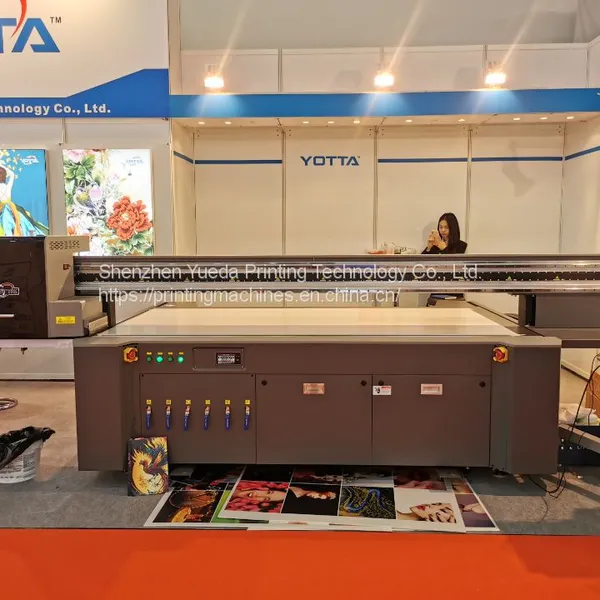

High-End 2513 UV Flatbed Printer With Kyocera Ricoh Konica Heads photo-5
US$ 20000 - 25000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yotta
Place of Origin:
China
Model Number:
P20KJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Brand Name Yotta
Place of Origin China
Model Number P20KJ
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Weight 1250 KG
Voltage 220V
Usage Other, flatbed printer
Condition New
Dimensions(L*W*H) 4.55m * 2.05m * 1.50m
Gross Power 4.8W
Color & Page Multicolor
Plate Type Flatbed Printer

High-End 2513 UV Flatbed Printer with Kyocera Ricoh Konica heads

1. Industrial Kyocera print heads

The P20KJ uv led flatbed printer adopts 3-8pcs industrial Kycorea printheads, delivering exquisite results with 4pl ink droplet and 600 × 2400dpi. The printer head we adopted has powerful internal heating function to keep the constancy of ink viscosity. It jets 40,000 droplet per second with one nozzle, and overall one printhead can print over 1 billion droplet per second, specially suitable for large-area panel and fast production.

2. Direct to substrate printing

YOTTA's P20KJ uv led flatbed printer delivers direct inkjet printing to substrate, no need to transfer, convenient and quick. When printing, printhead keeps 2mm distance with materials.

3. High print speed and optional print mode

P20KJ uses kyocera printhead, which is a high speed industial printhead and can satisfy mass productive with high speed mode. Three printing modes can be chosen by customers according to actual production requirements.

4. UV LED curing system

Our digital UV printers employ UV LED curing technology, which won't generate excessive heat, allowing fast UV ink curing and direct-to-substrate printing on almost anything, heat-sensitive materials included.

5. 6+2 colors printing

In addition to creating bright and colorful prints with standard 6 color, P20KJ printer also support direct-to-substrate UV white ink and varnish printing. White ink can be printed in a variety of ways with this machine to produce vivid prints. Just enjoy your imaginative design and it will help you achieve.

6. User-friendly functions for easy operation

a. Media positioning device, more convenient to position the substrates being printed, to achieve more accurate positioning and printing easily.
b. Anti-collision device. When colliding with obstacles, the carriage will stop automatically to protect the print heads, as well as human safety.
c. Four zone independent control absorption platform, delivering high accuracy printing for various sizes of flexible materials.
d. Intelligent and user-friendly RIP software. YOTTA's printers are equipped with multifunctional and and user-friendly RIP software, to improve designed image output efficiency.

7. Double negative pressure system in secondary ink cartridge

P20KJ LED UV flatbed printer has two negative pressure system in secondary ink cartridge to control white ink and color ink separately, so to ensure a smooth printing process and outstanding printing effect. The pressure value can be checked and adjusted according to production environment.

8. Environmental-friendly printing

Our machines use environmental-friendly UV curable ink and UV LED lamps for ink curing, no VOC, operator-friendly, less heat waste and saving energy.

Specifications

Model YD-F2513KJ
Print Size 2500 × 1300 mm (8×4 ft)
Printhead Kyocera KJ4A grey level Piezo printhead
Printhead Quantity 2-8 pcs (4-7 colors optional)
Print Resolution 635×2400 DPI
Material Thickness Up to 100mm (4in)
UV Curing System LED UV lamp
Ink Type Original imported UV curable ink
Ink Color C, M, Y, K, Lc, Lm, White ink (optional)
Interface Mode High Speed USB
RIP Software Onyx
Color Management International standard ICC
Input Format PDF, JPEG, TIFF, EPS, AI
Printer Weight 1300KG
Printer Size 4550mm[L] × 2150mm[W] × 1300mm[H] (14.6ft×7ft×4.3ft)
Package Size 4750mm[L] × 2340mm[W] × 1500mm[H] (15.6ft×7.7ft×5ft)
Power Requirement 220V/AC(±10%), 50/60 HZ, 6KW
Working Environment

Separate, little sunlight, ventilated workshop,

Temperature: 18ºC~30ºC(64ºF~86ºF);

Humidity: 30%~70% (Non-condensing);

Ventilation equipment:

suggest overhead exhaust fan, displacement 600cfm.



High End 2513 UV Flatbed Printing Machine Printer with Kyocera HeadsMachine details

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

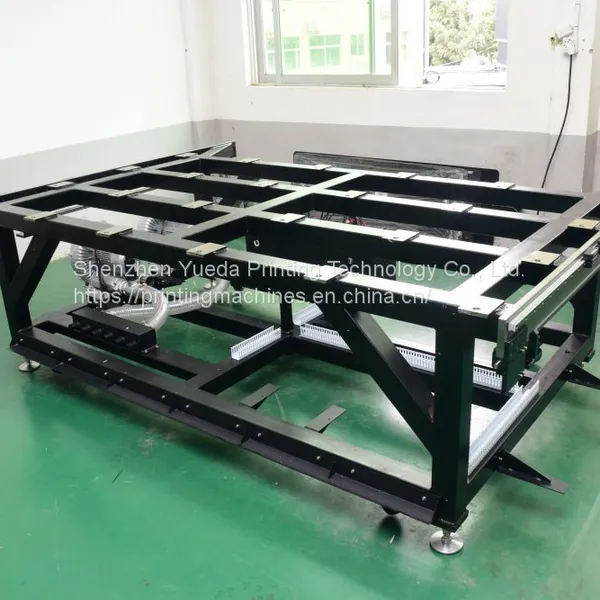

Integrated steel frame structure

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

1.5kw vortex type high pressure air pump fan

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

Ink circuit negative pressure control system



High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads Intelligent ink mixing system
High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads Ink shortage alarm system and double negative pressure independent system
High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads Import Germany IUGS towline

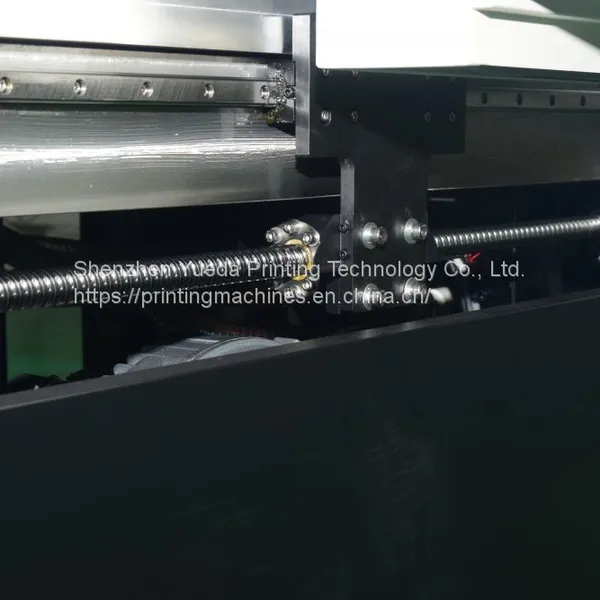

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads Transmission beam guide with linear motor
High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

suction areas

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

The suction and blowing platform.

High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

Anti crash and automatically measure the height



Samples Show:





Company Information

Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.


With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.



High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads
High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads




Certificates


Packaging & Shipping

Package details:

1. Export standard wooden package.

2. By ocean freight.

Delivery time: 5~7 working days(Except customized model)



High End 2513 UV Flatbed Printing Machine Printer with Kyocera Heads

FAQ


Q: What's the application of UV printer?


A: Extensively applied on various materials for all kinds of industries. For applied industry, see our solutions.

Q: How to buy yueda Printer?


A: List your detailed requirements and email to us,our sales representative will contact you soon. Or you can come to visit us at our plant in Shenzhen.

Q: How to get your service support?


A: Yueda offers easy and on time online service support to our customers.You can also get service through our Branch office in your local side.
