wood drying kiln kiln dryer wood drying camera
- 30 Unit / Units per Month
- Dalian
- T/T
- 100m3 top quality energy saving kiln dryer for wood KD dryer
- wood drying camera wood drying kiln
- Kiln drying wood equipment, China timber drying kiln
- Top quality attractive price steam drying kiln, wood dryer, timber dryer wood kiln for sale
- High performance Wood drying kiln how to build a wood kiln
- kiln dryer for drying electric poles wood drying kiln for log poles
Product Details
Brand Name: | HILDEBRAND | Place of Origin: | China | Model Number: | LDFJ-120 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Specification:
1. Suitable for hardwood and softwood drying.
2. Economical and energy efficient.
3. Reliable performance.
4.New kilns for refurbishing existing ones.
5. Quick delivery times. Within 2 weeks.
6. Tailored solutions.
Technical Information:
Maximum drying temperature | 110°C |
Kiln Housing | Stainless Steel or All Aluminum or Masonry |
Insulation | Fiber Giass 100mm to 200mm |
Gate System | Sliding lifting kiln door |
Control System | LIGNOMAT Fully Automatic Control System |
Wood Probes | Wirebound and Wireless |
Fans | Axial Fans 800mm/1200mm,Reversible |
Heating Source | Hot Water or Steam or Thermal Oil |
Type of door: | Lift-sliding door |
Way of loading: | Forklift |
Performance Data: Model LDFJ-0.5-400 | |
Bearing structure: | Aluminum alloy |
Heating medium: | Hot water 90C |
Humidification medium: | Water 20C |
Number of fans: | depending on the size of chamber |
Diameter of fan: | 800mm |
Volume of circulating air: | 30,000 m3 /h |
Motor: | 3kw, class IP55 |
Electricity demand: | 18kw |
Voltage & Frequency: | 380v, 50Hz |
Snow Loading: | 150 Kg/m2 |
Wind loading: | 120 km/h |
Dimension:
Capacity m3 Model | Kiln Inner dimensions W×D×H(m) | Stack Dimensions W×D×H(m) | Number of Fans |
LDFJ-40 | 4.23×4.68×5.7 | 4.0×4.5×4.5 | 2 |
LDFJ-50 | 4.32×7.7×5.7 | 4.0×5.8×4.5 | 3 |
LDFJ-60 | 4.32×8.64×5.7 | 4.0×6.6×4.5 | 3 |
LDFJ-80 | 6.48×7.7×5.7 | 6.2×5.8×4.5 | 3 |
LDFJ-100 | 8.64×7.7×5.7 | 8.4×5.8×4.5 | 5 |
LDFJ-120 | 8.64×8.64×5.7 | 8.4×6.6×4.5 | 6 |
LDFJ-150 | 12.96×7.7×5.7 | 12.5×5.8×4.5 | 8 |
LDFJ-180 | 12.96×8.64×5.7 | 12.5×6.6×4.5 | 9 |
LDFJ-200 | 12.96×9.37×5.7 | 12.5×6.8×4.5 | 10 |
LDFJ-250 | 12.96×9.37×6.4 | 12.5×8.0×5.0 | 12 |
LDFJ-300 | 21.4×9.3×5.7 | 21.0×7.3×4.5 | 15 |
LDFJ-400 | 25.68×9.3×5.7 | 25.0×7.3×4.5 | 20 |
LDFJ-NS135 | 9.72×8.64×5.4 | 9.4×6.6×4.3 | 7 |
LDFJ-NS150 | 10.80×8.64×5.4 | 10.5×6.6×4.3 | 8 |
LDFJ-NS160 | 11.88×8.64×5.4 | 11.5×6.6×4.3 | 9 |

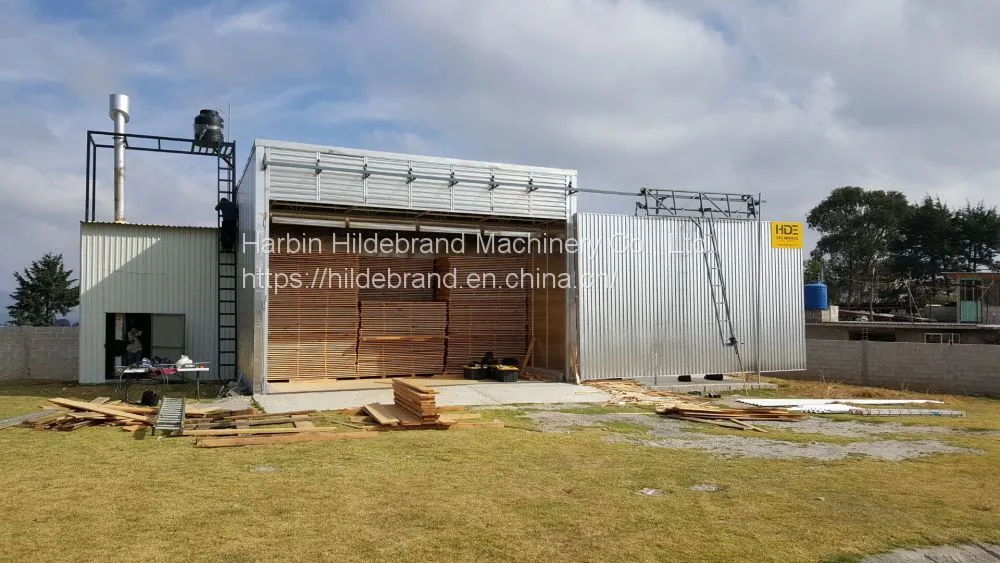

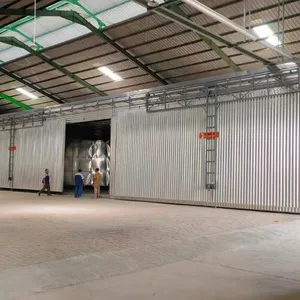

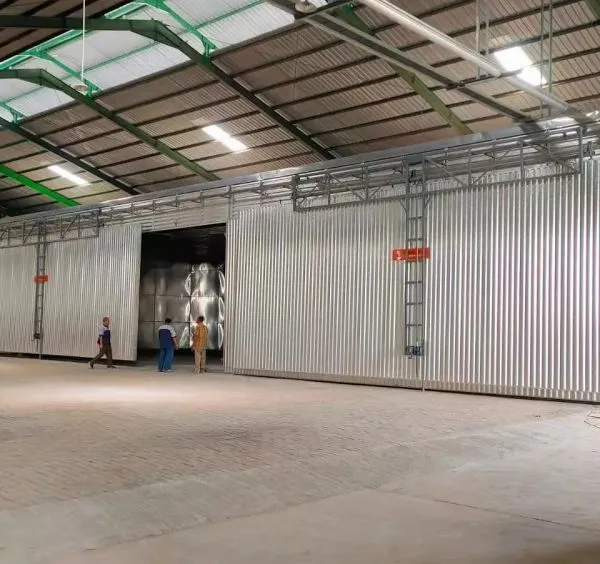

Photos of Kilns:
We have six productions lines:
Kiln Building Structure:
The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.
Door and Door Carriage:
International popular one-piece kiln door is in all aluminum suspension rail style. The whole kiln door is prefabed with fiber glass insulation to thoroughly prevent thermal bridge effect and to optimize inslulation performance. Particular high temperature resistant PVC insulation gasket strips are not aging in high temperature condition for a long time and will keep kiln door closely sealed. Door carriage adopts international popular style, stable movement, convenient to lift. Single wheel main door bracket is easy to operate, stable lifting and dropping, flexible slide, 13m main door can be handled by only one single person.
LIGNOMAT Fully Automatic Control System
-All the products and technology from Lignomat are on asis of German HILDEBRAND drying techology.
-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.
-Most advanced self-detect and alarm system.
-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.
-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.
-Fast drying time, less energy consumption, high lumber quality.
-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no moise problem.

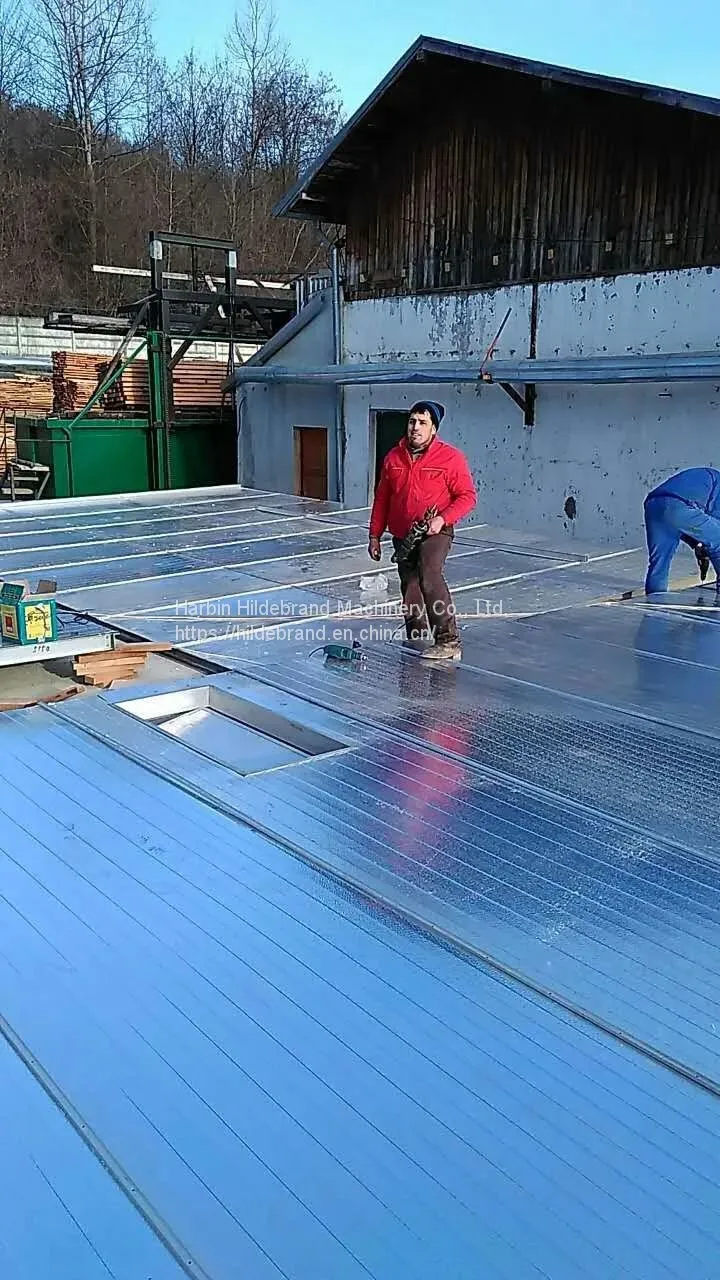

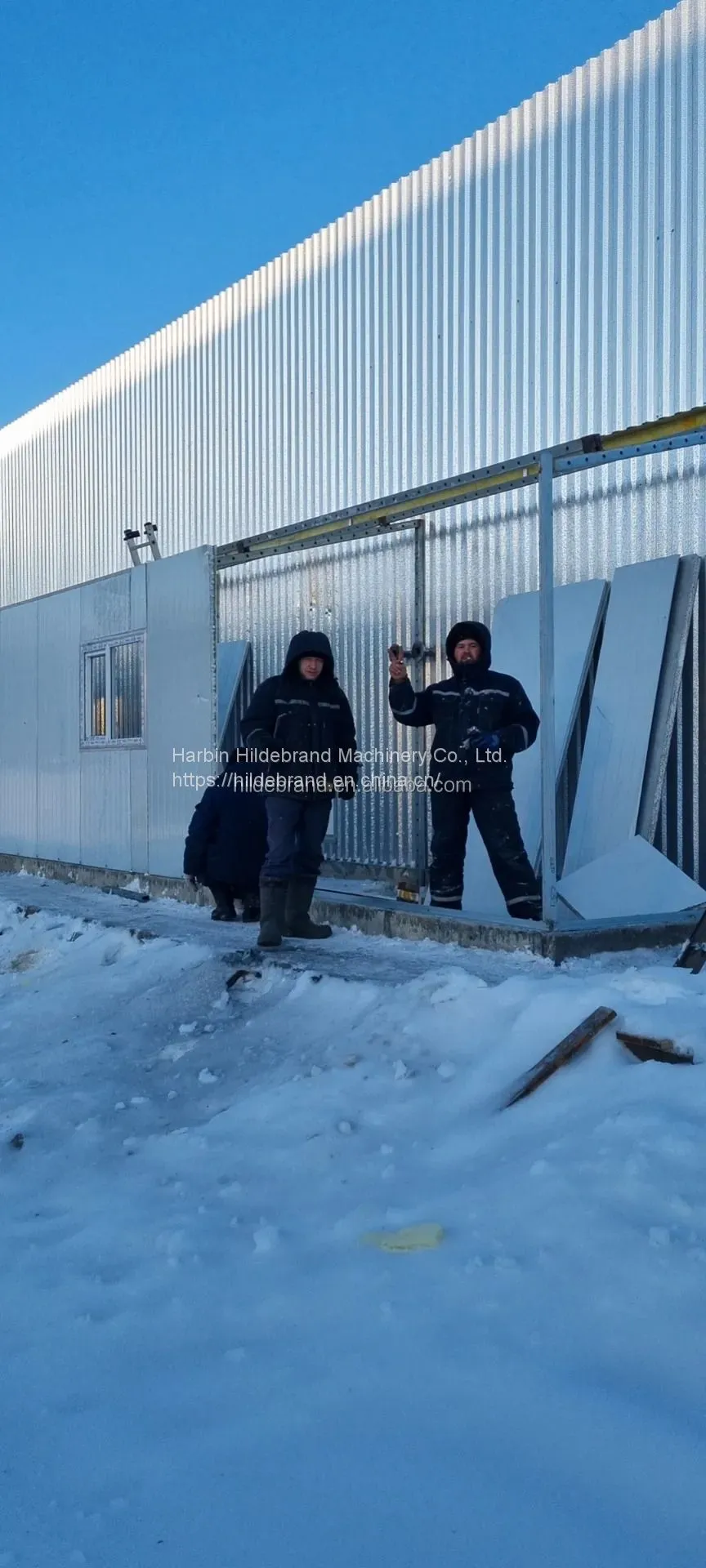

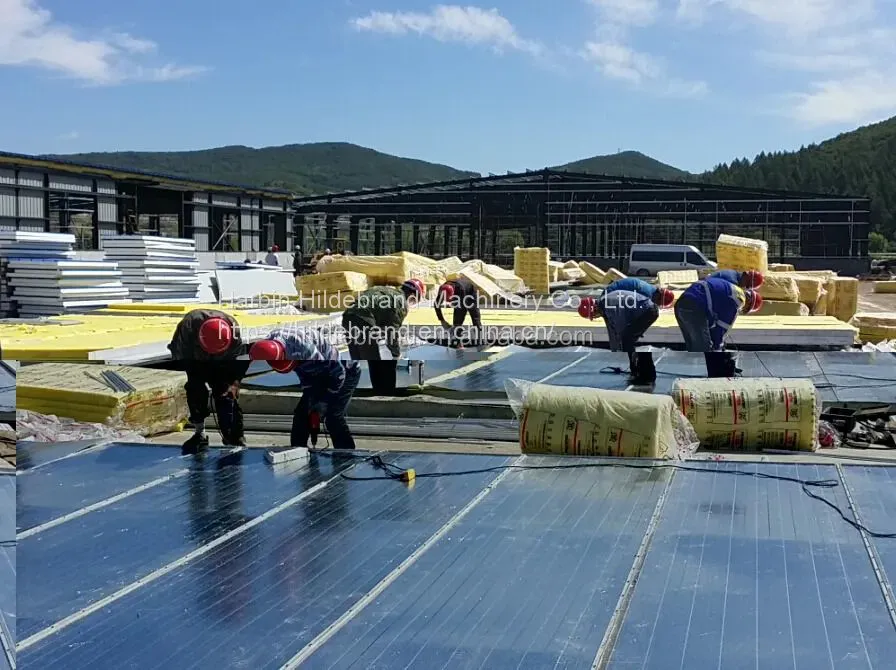

Installation Photos:
Harbin Hildebrand Machinery Co.,ltd is a Sino-German joint venture, the first and biggest manufacturer of wood drying kiln in China, china wood drying kiln, timber drying kilns, kiln dryer for firewood, wood drying kiln for hard wood, softwood, firewood. Sino-Germany joint venture, professional provide kiln drying for wood.
Contact Lisa:
Email: sales@hlgzsb.com
Whatsapp: 8615846586548
When cusomer choose a wood drying kiln, the points need to be pay attention:
(1) The loading according of the lumber need to be loaded and dried in each chamber. According to the wood species, thickness, initial and final Moisture content of the lumber, determine the required number of the wood drying kin.
(2) The heating medium of the kiln customer want to choose, for the conventional wood drying kiln, the common heating medium can be steam, hot water, thermal oil, electricty. All these types of heating medium, Harbin Hildebrand are available to provide the relevant kilns.
(3) From the process performance, using performance, technology and material, comprehensive consider to choose drying kiln.
The aluminum and stainless steel wood drying kiln is anti-corrosion and have a long using life. Harbin Hildebrand with Germany pateneted technology power vent heat recovery system, recovery the heat energy, can save 10% energy. The high density of fiber glass insulation wool which ensure the good warm-keep function of the kiln. Full automatic control system with all kinds of wood species drying schdule in the software.
(4) The reliable supplier with long time history, good reputation, who understand not only the technology of wood drying kiln but also can provide professional drying technicial support. The supplier can be responsible for equipment installation, commisioning, technical traing and after-sales service. Harbin Hildebrand Machinery Co.,ltd was founded in 1985, the first and biggest manufacturer of wood drying kiln in China, always enjoy a high reputation, put customer's satisfaction as our commission.
1, The first professional timber dry kilns manufacturer in China ( established in 1985). Our kilns are made of all aluminum alloy and stainless steel, anti-corrosion with service life over 30 years.
2, Joint venture enterprise with world famous enterprise Hildebrand's (the first modern timber drying kiln manufacturer founded
in1948) engineer, the hildebrand Germany technology.
3, You don't need worry technology or quality problems happened, as they have been solved in these 30 years. Patented technology
power vent heat exchanger can shorten the drying time, energy saving and improved the drying quality.With inverter can adjust the
fan speed and save energy.
4, You don't need worry about installation as our supervisor and installation workers will be on site to instruct the installtion
of all equipment for the commissioning untill all equipment is properly functioning.
5, You are not able to find other supplier in China with fully automatic Lignomat control system, because we are the exclusive
agent for Lignomat control system. Lignomat kiln control system agency in China, and Lignomat only cooperated with the most
trustworthy manufacturer.
6, Most advanced self-detected amd alarm system for wood drying kiln. After over fifty years of improvement and renovation, Lignomat has received great
support and reliance from European, North American, South American, Southeast Asian and African clients. More than 5000 kilns are
running safty and efficiently under control system of Lignomat KCS.
7, Lignomat control system enable one computer control up to 32 units of kiln, Access and remote control of any smart phone, Pad,
Labtop or destop computer, like Ipad, phone or Android device.
8, You will enjoy the professional before- in- and after- service we provide, and have a pleasant cooperation with us.a
