We have six productions lines:
Features:
1. Suitable for drying both hardwood and softwood.
2. Economical and energy efficient.
3. Reliable performance
4.New kilns for refurbishing existing ones.
5. Quick delivery times.
6. Tailored solutions.
Technical Information:
| Maximum drying temperature | 110°C |
| Kiln Housing | Stainless Steel or All Aluminum or Masonry |
| Insulation | Fiber Giass 100mm to 200mm |
| Gate System | Sliding lifting kiln door |
| Control System | LIGNOMAT Fully Automatic Control System |
| Wood Probes | Wirebound and Wireless |
| Fans | Axial Fans 800mm/1200mm,Reversible |
| Heating Source | Hot Water or Steam or Thermal Oil |
| Kiln inner dimensions: | Width 12.96m |
| Depth 7.7m | |
| Height 5.7m | |
| Stack dimensions: | Width 12.5m |
| Depth 5.8 m | |
| Height 4.5m | |
| Kiln capacity: | Approx 150m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers |
| Type of door: | Lift-sliding door |

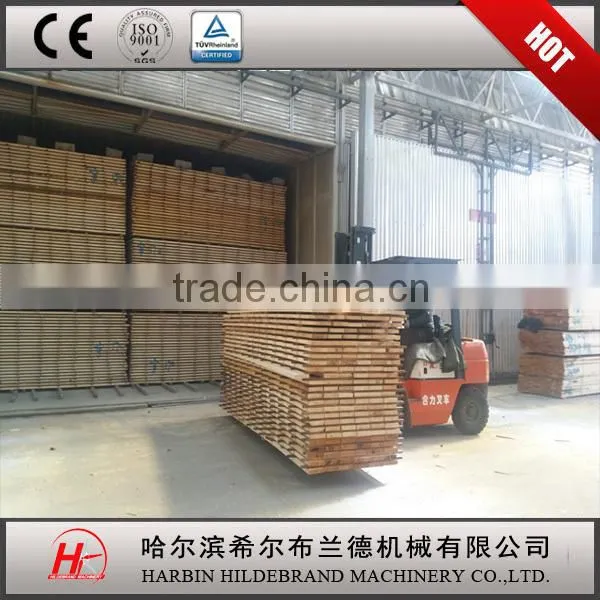

| Way of loading: | Forklift |
| Performance Data: Model LDFJ-150 | |
| Bearing structure: | Aluminum alloy |
| Heating medium: | Hot water 90C |
| Humidification medium: | Water 20C |
| Number of fans: | 8 units |
| Diameter of fan: | 800mm |
| Volume of circulating air: | 30,000 m3 /h |
| Motor: | 3kw, class IP55 |
| Electricity demand: | 18kw |
| Voltage & Frequency: | 380v, 50Hz |
| Snow Loading: | 150 Kg/m2 |
| Wind loading: | 120 km/h |
Measurement:
|
Capacity m3 Model |
Kiln Inner dimensions W×D×H(m) |
Stack Dimensions W×D×H(m) |
Number of Fans |
LDFJ-40 |
4.23×4.68×5.7 |
4.0×4.5×4.5 |
2 |
LDFJ-50 |
4.32×7.7×5.7 |
4.0×5.8×4.5 |
3 |
LDFJ-60 |
4.32×8.64×5.7 |
4.0×6.6×4.5 |
3 |
LDFJ-80 |
6.48×7.7×5.7 |
6.2×5.8×4.5 |
3 |
LDFJ-100 |
8.64×7.7×5.7 |
8.4×5.8×4.5 |
5 |
LDFJ-120 |
8.64×8.64×5.7 |
8.4×6.6×4.5 |
6 |
LDFJ-150 |
12.96×7.7×5.7 |
12.5×5.8×4.5 |
8 |
LDFJ-180 |
12.96×8.64×5.7 |
12.5×6.6×4.5 |
9 |
LDFJ-200 |
12.96×9.37×5.7 |
12.5×6.8×4.5 |
10 |
LDFJ-250 |
12.96×9.37×6.4 |
12.5×8.0×5.0 |
12 |
LDFJ-300 |
21.4×9.3×5.7 |
21.0×7.3×4.5 |
15 |
LDFJ-400 |
25.68×9.3×5.7 |
25.0×7.3×4.5 |
20 |
LDFJ-NS135 |
9.72×8.64×5.4 |
9.4×6.6×4.3 |
7 |
LDFJ-NS150 |
10.80×8.64×5.4 |
10.5×6.6×4.3 |
8 |
LDFJ-NS160 |
11.88×8.64×5.4 |
11.5×6.6×4.3 |
9 |

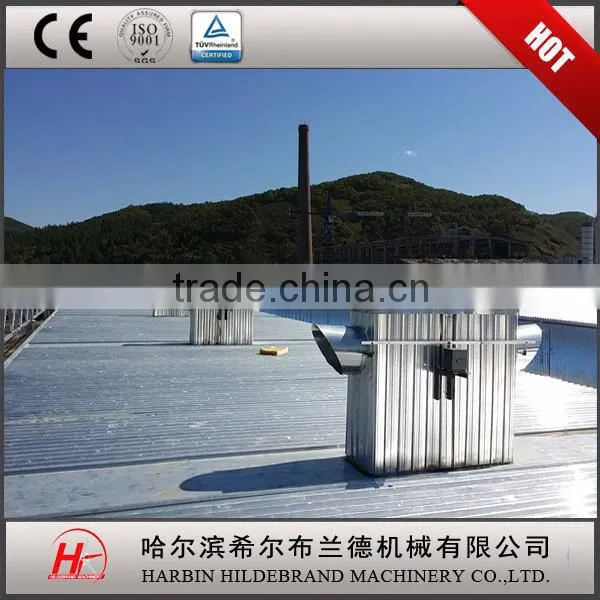

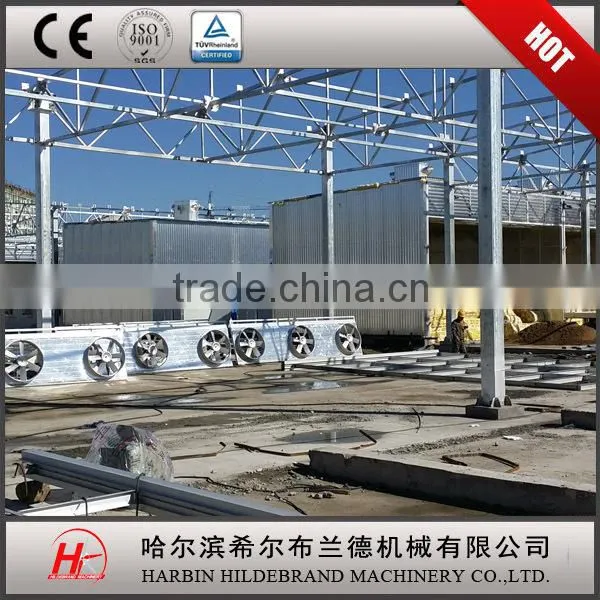

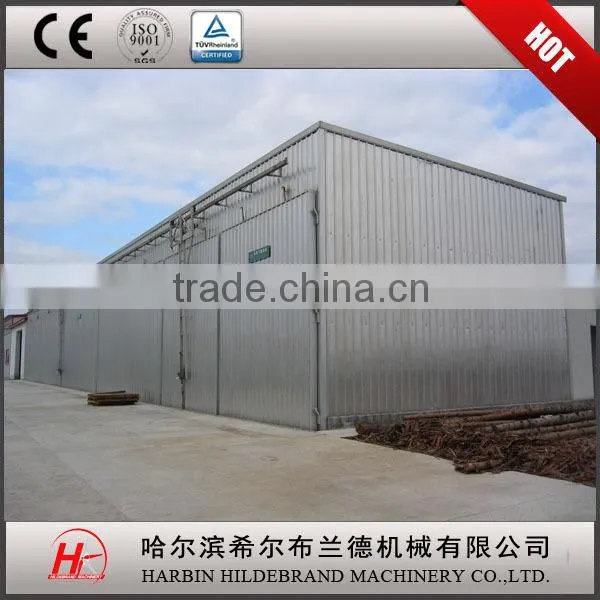

Kiln Building Structure
The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.

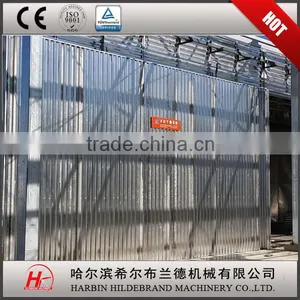

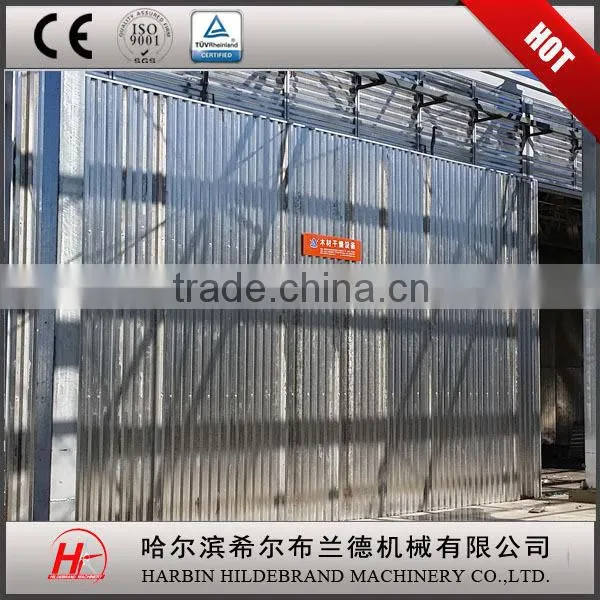

Door and Door Carriage
International popular one-piece kiln door is in all aluminum suspension rail style. The whole kiln door is prefabed with fiber glass insulation to thoroughly prevent thermal bridge effect and to optimize inslulation performance. Particular high temperature resistant PVC insulation gasket strips are not aging in high temperature condition for a long time and will keep kiln door closely sealed. Door carriage adopts international popular style, stable movement, convenient to lift. Single wheel main door bracket is easy to operate, stable lifting and dropping, flexible slide, 13m main door can be handled by only one single person.
Heat Exchanger
Patented technology, enegy conservation.
LIGNOMAT Fully Automatic Control System
-All the products and technology from Lignomat are on asis of German HILDEBRAND drying techology.
-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.
-Most advanced self-detect and alarm system.
-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.
-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.
-Fast drying time, less energy consumption, high lumber quality.
-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no moise problem.

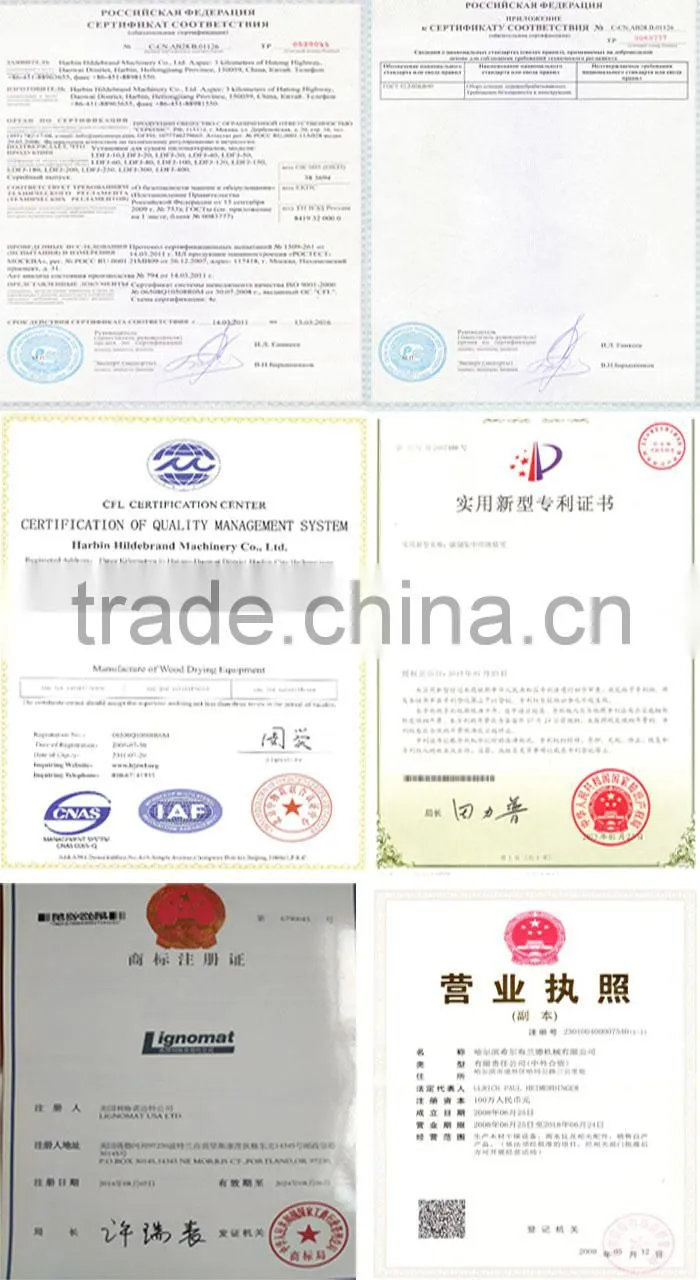

CU-RT For Russia, Belarus, Kazakhstan:
Authorization Certifcate from Lignomat
