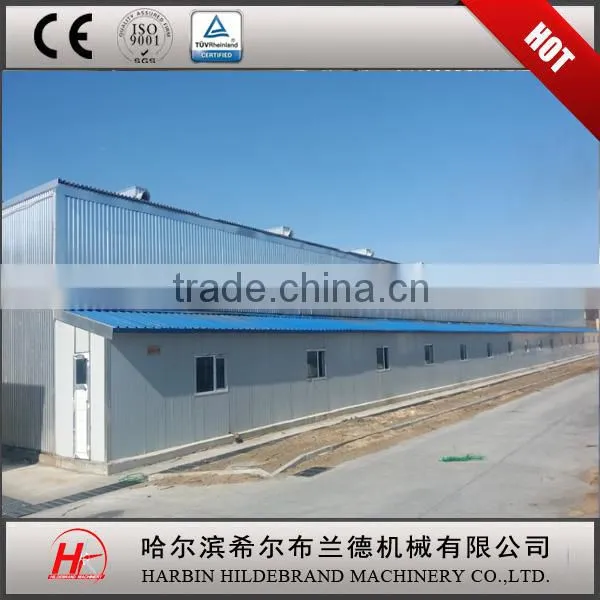

Help Center40m3 Factory Sell Directly Wood Dry Kiln, Timber Drying, Kiln Dried Lumber Quality Choice
Related Products
-
Enegry Saving 50m3 Drying Kiln, Lumber Drying Kilns, Timber Drying Kiln, Wood Drying RoomUS$ 8,000 - 100,000MOQ: 1 Unit -
Whole Sale High Quality Woodworking Machine for Sale, Drying Kiln, Timber Drying Kiln, Wood Drying ChamberUS$ 8,000 - 100,000MOQ: 1 Unit
-
120m3 Factory Sell Timber Drying Kiln for Sale, Timber Drying Kiln, Timber Dryer Quality ChoiceUS$ 8,000 - 100,000MOQ: 1 Unit
-
150m3 Factory Sell Dryer Chamber, Kiln Dry, Wood Dry KilnUS$ 8,000 - 100,000MOQ: 1 Unit
-
180m3 Kiln Dring for Wood, Kiln Dry, Wood DryingUS$ 8,000 - 100,000MOQ: 1 Unit
Features:
1. Suitable for drying both hardwood and softwood.
2. Economical and energy efficient.
3. Reliable performance
4.New kilns for refurbishing existing ones.
5. Quick delivery times.
6. Tailored solutions.
Technical Information:
| Maximum drying temperature | 110°C |
| Kiln Housing | Stainless Steel or All Aluminum or Masonry |

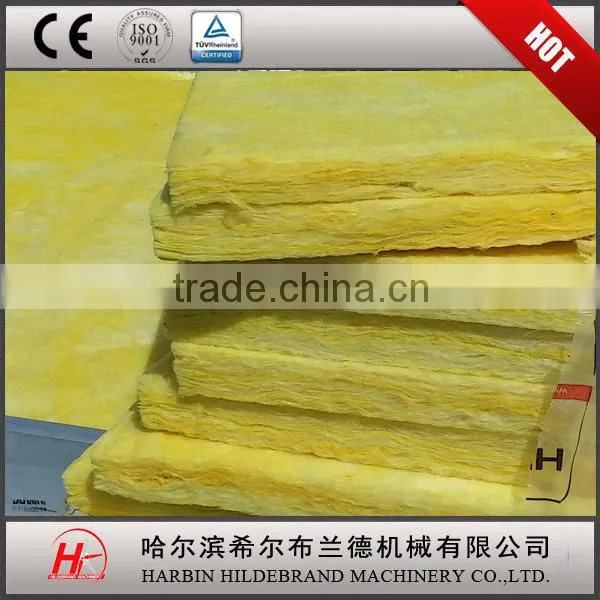

| Insulation | Fiber Giass 100mm to 200mm |
| Gate System | Sliding lifting kiln door |
| Control System | LIGNOMAT Fully Automatic Control System |
| Wood Probes | Wirebound and Wireless |
| Fans | Axial Fans 800mm/1200mm,Reversible |

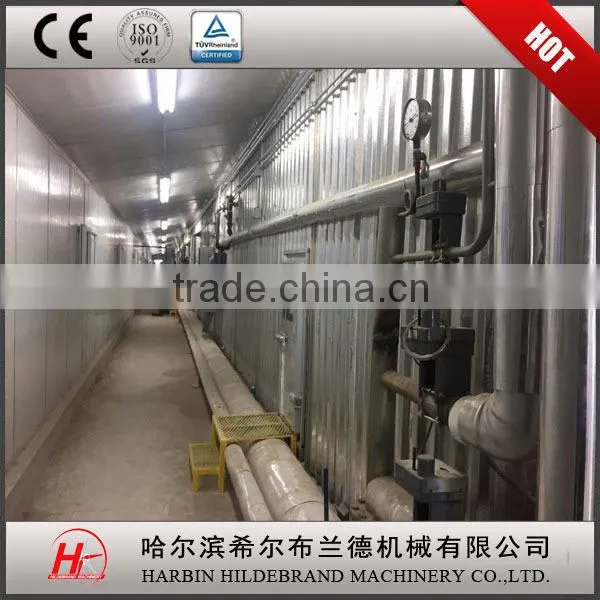

| Heating Source | Hot Water or Steam or Thermal Oil |
| Kiln inner dimensions: | Width 4.32m |
| Depth 6.48m | |
| Height 5.7m | |
| Stack dimensions: | Width 4.0m |
| Depth 4.5m | |
| Height 4.5m | |
| Kiln capacity: | Approx 40m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers |

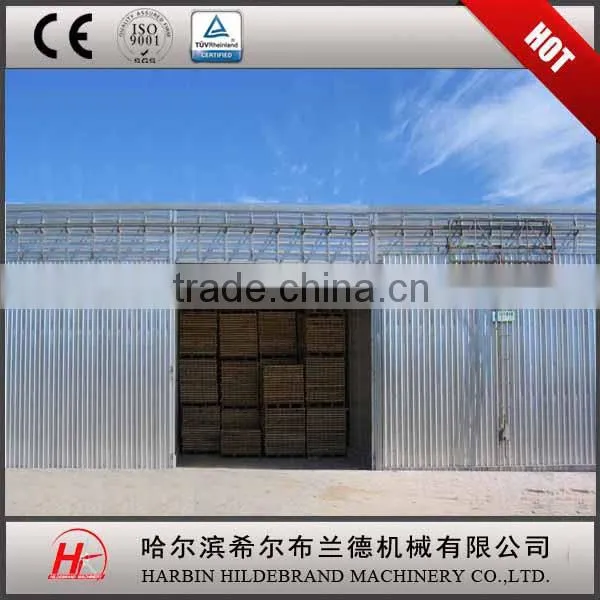

| Type of door: | Lift-sliding door |

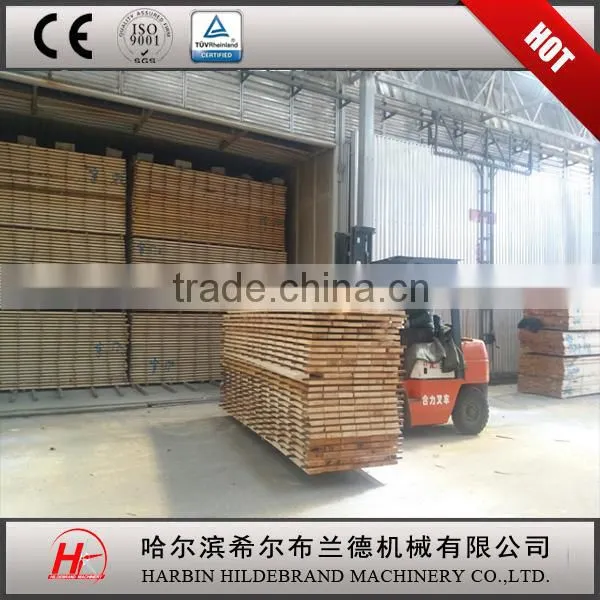

| Way of loading: | Forklift |
| Performance Data: Model LDFJ-40 | |
| Bearing structure: | Aluminum alloy |
| Heating medium: | Hot water 90C |
| Humidification medium: | Water 20C |
| Number of fans: | 2 units |
| Diameter of fan: | 800mm |
| Volume of circulating air: | 30,000 m3 /h |

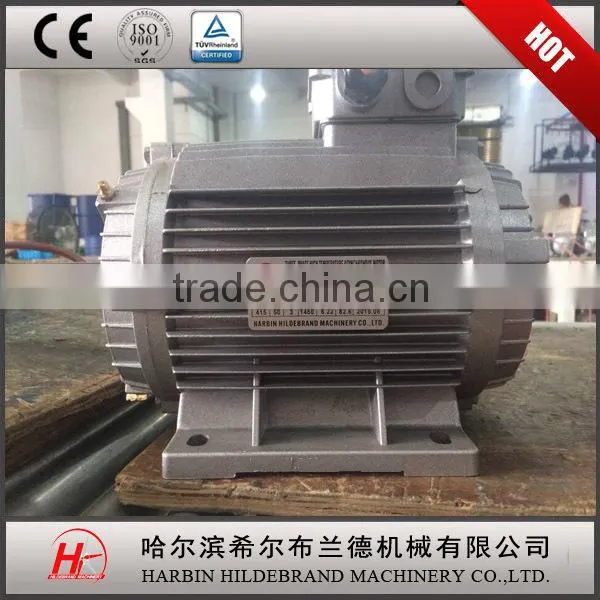

| Motor: | 3kw, class IP55 |
| Electricity demand: | 18kw |
| Voltage & Frequency: | 380v, 50Hz |
| Snow Loading: | 150 Kg/m2 |
| Wind loading: | 120 km/h |
Measurement.:
|
Capacity m3 Model |
Kiln Inner dimensions W×D×H(m) |
Stack Dimensions W×D×H(m) |
Number of Fans |
LDFJ-40 |
4.23×4.68×5.7 |
4.0×4.5×4.5 |
2 |
LDFJ-50 |
4.32×7.7×5.7 |
4.0×5.8×4.5 |
3 |
LDFJ-60 |
4.32×8.64×5.7 |
4.0×6.6×4.5 |
3 |
LDFJ-80 |
6.48×7.7×5.7 |
6.2×5.8×4.5 |
3 |
LDFJ-100 |
8.64×7.7×5.7 |
8.4×5.8×4.5 |
5 |
LDFJ-120 |
8.64×8.64×5.7 |
8.4×6.6×4.5 |
6 |
LDFJ-150 |
12.96×7.7×5.7 |
12.5×5.8×4.5 |
8 |
LDFJ-180 |
12.96×8.64×5.7 |
12.5×6.6×4.5 |
9 |
LDFJ-200 |
12.96×9.37×5.7 |
12.5×6.8×4.5 |
10 |
LDFJ-250 |
12.96×9.37×6.4 |
12.5×8.0×5.0 |
12 |
LDFJ-300 |
21.4×9.3×5.7 |
21.0×7.3×4.5 |
15 |
LDFJ-400 |
25.68×9.3×5.7 |
25.0×7.3×4.5 |
20 |
LDFJ-NS135 |
9.72×8.64×5.4 |
9.4×6.6×4.3 |
7 |
LDFJ-NS150 |
10.80×8.64×5.4 |
10.5×6.6×4.3 |
8 |
LDFJ-NS160 |
11.88×8.64×5.4 |
11.5×6.6×4.3 |
9 |

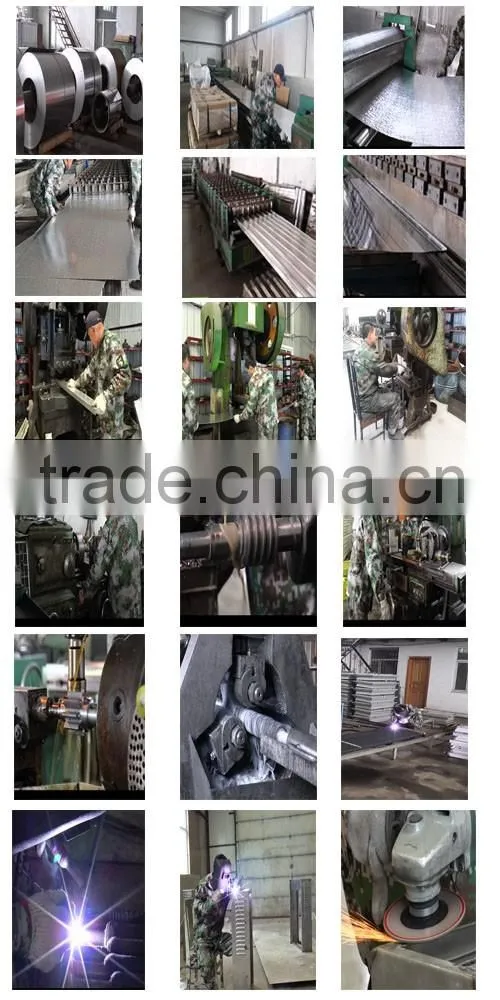

We have six productions lines:

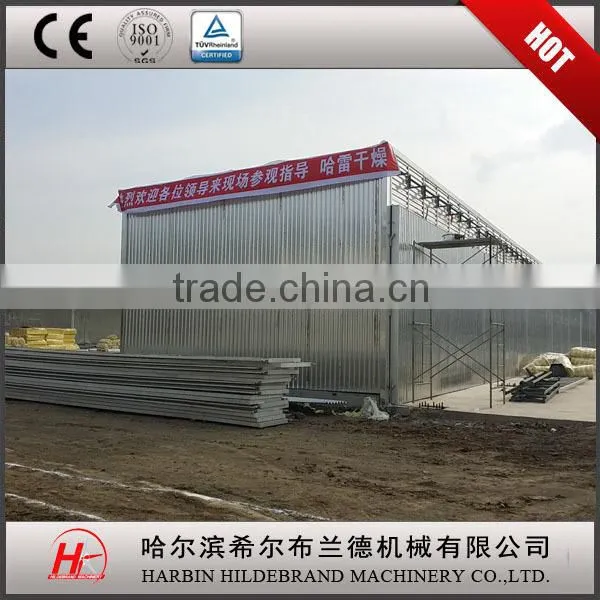

Kiln Buidling Structure:

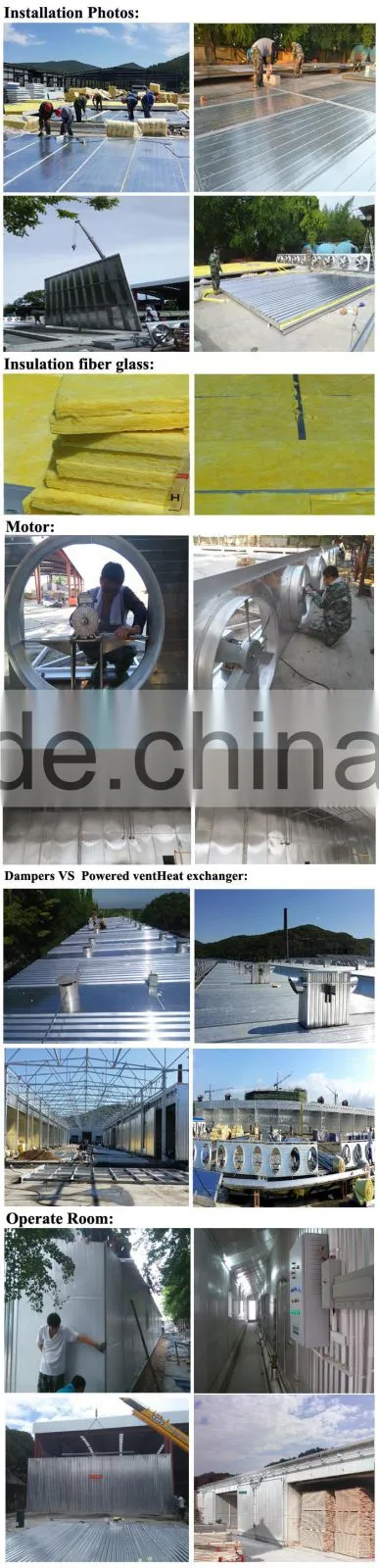

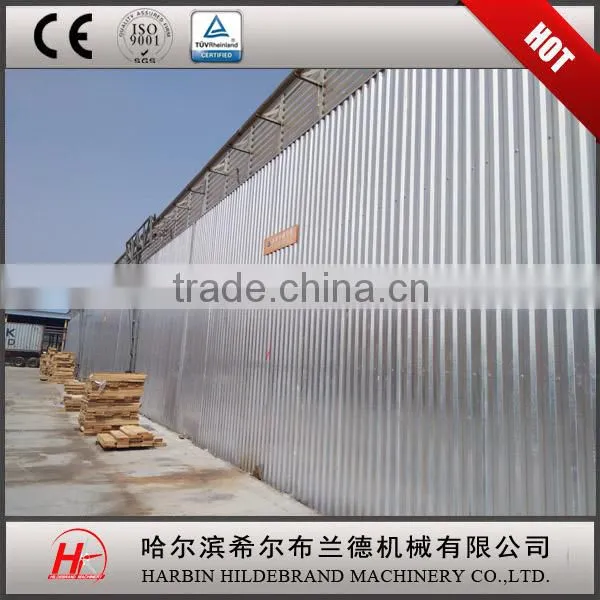

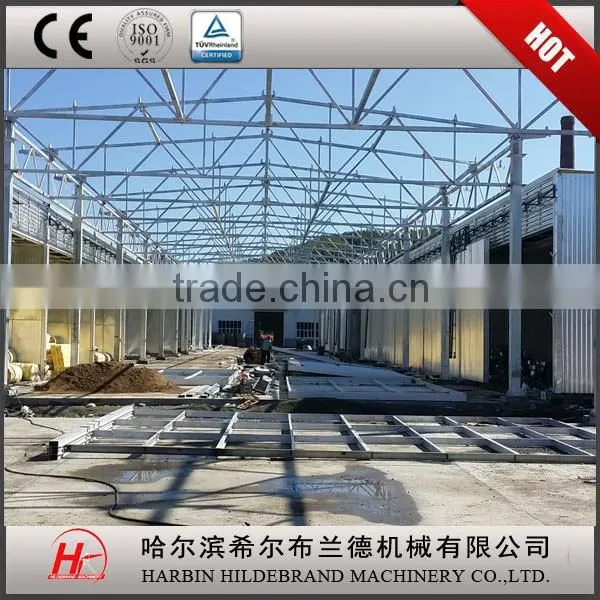

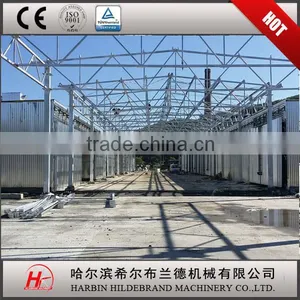

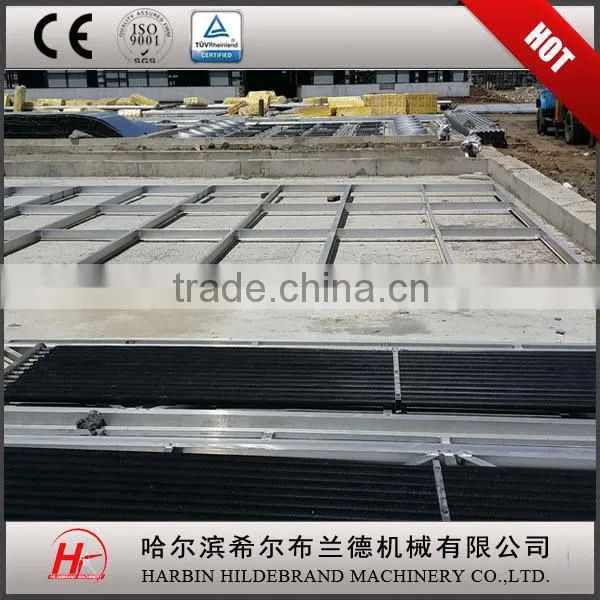

The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.
LIGNOMAT Fully Automatic Control System
-All the products and technology from Lignomat are on asis of German HILDEBRAND drying techology.
-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.
-Most advanced self-detect and alarm system.
-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.
-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.
-Fast drying time, less energy consumption, high lumber quality.
-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no noise problem.
About Our Company:
HARBIN HILDEBRAND MACHINERY CO.,LTD is a joint venture enterprise between HARBIN HA LEI DRYING, the first timber dry kilns manufacturer in China ( established in 1985)
and Mr. Ulrich Heimerdinger, Mr.Hildebrand's descendant and used to work as HILDEBRAND's
engineer. We are dedicated to manufacture the high quality, hightech timber dry kilns for
the world market. Hildebrand Machinery Co., Ltd. passed ISO9001 quality management system
certification. Our joint venture adopts advanced drying equipment, drying technology and manufacturing
methods from German, and we have introduced allaluminum ramproof dry kilns, energy saving heat
exchanger , stainless steel assembly dry kilns, for hardwood and softwood dry kilns, and we use LIGNOMAT fully automatic control system with most advanced and exclusive wireless probes in the world. The high quality of our products enjoy a high reputation among home and abroad market.
