Kiln drying wood equipment, China timber drying kiln

Specification:

1. Suitable for hardwood and softwood drying.

2. Economical and energy efficient.

3. Reliable performance.

4.New kilns for refurbishing existing ones.

5. Quick delivery times. Within 2 weeks.

6. Tailored solutions.

Technical Information:

 Dimension:

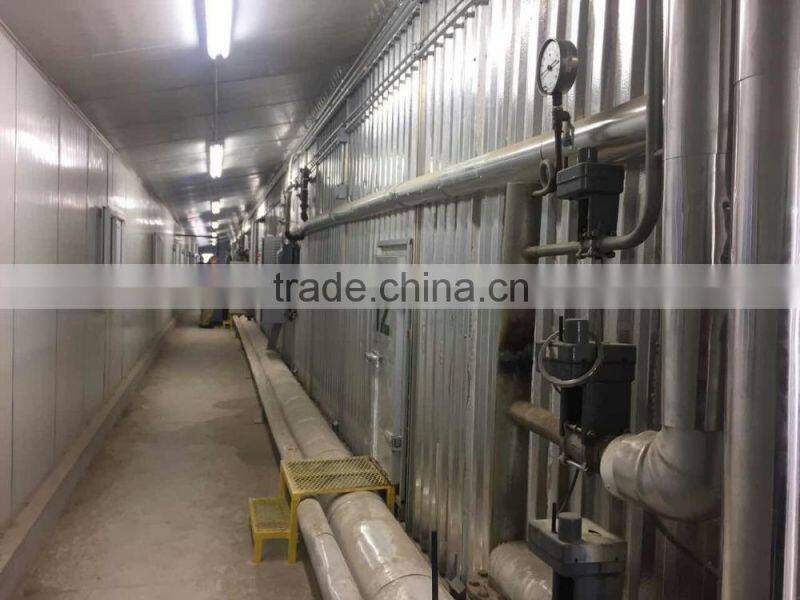

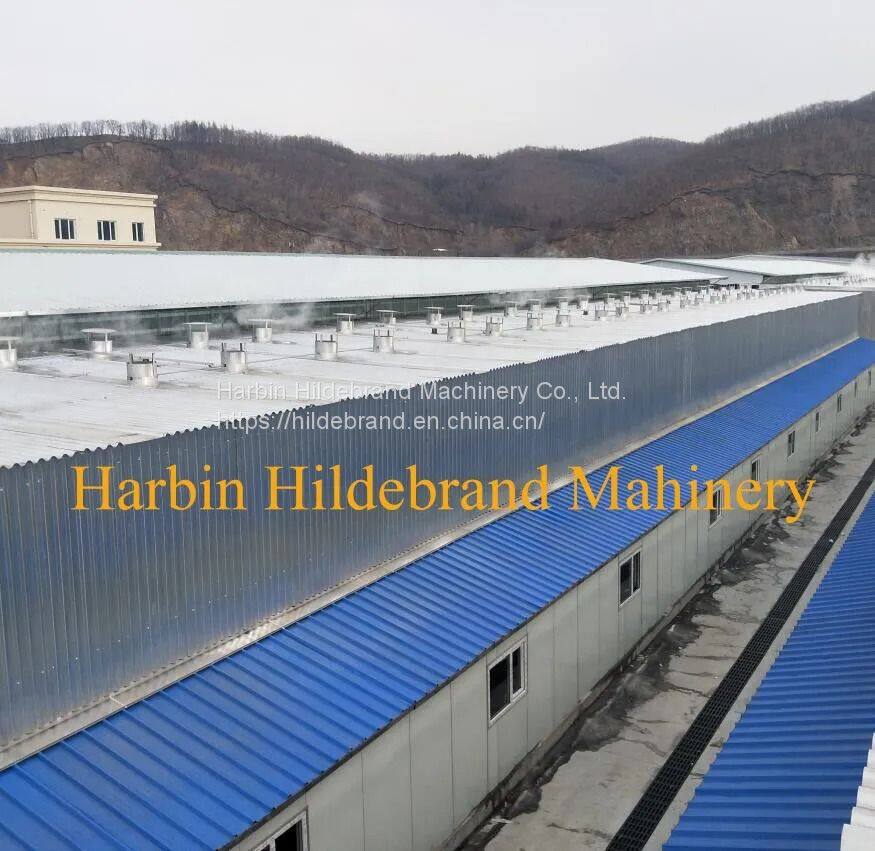

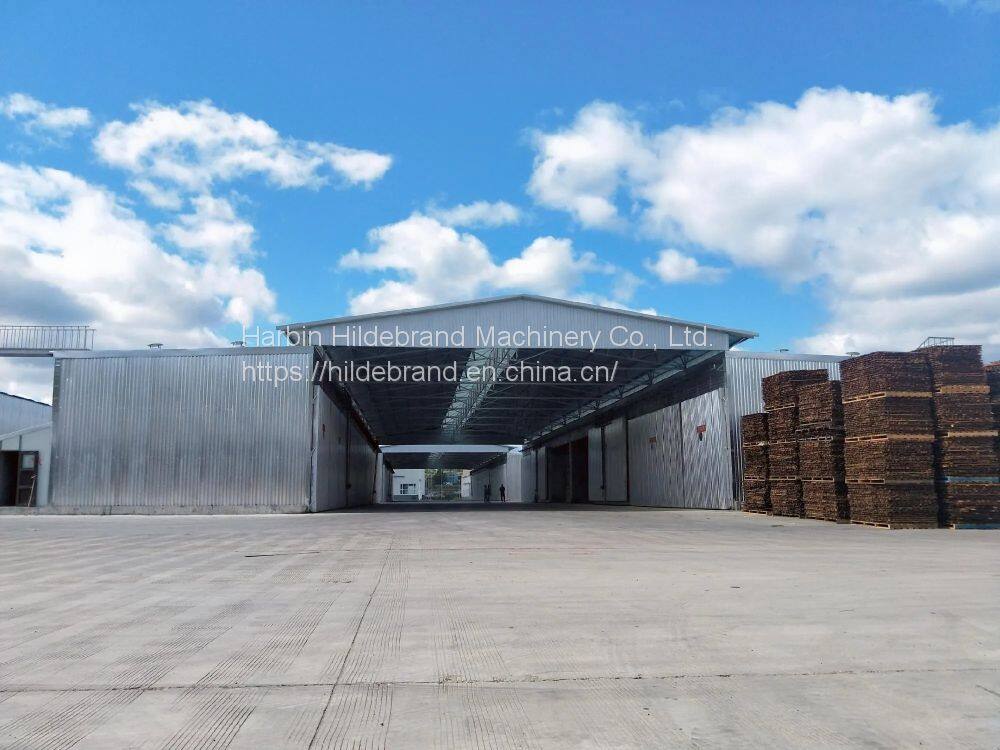

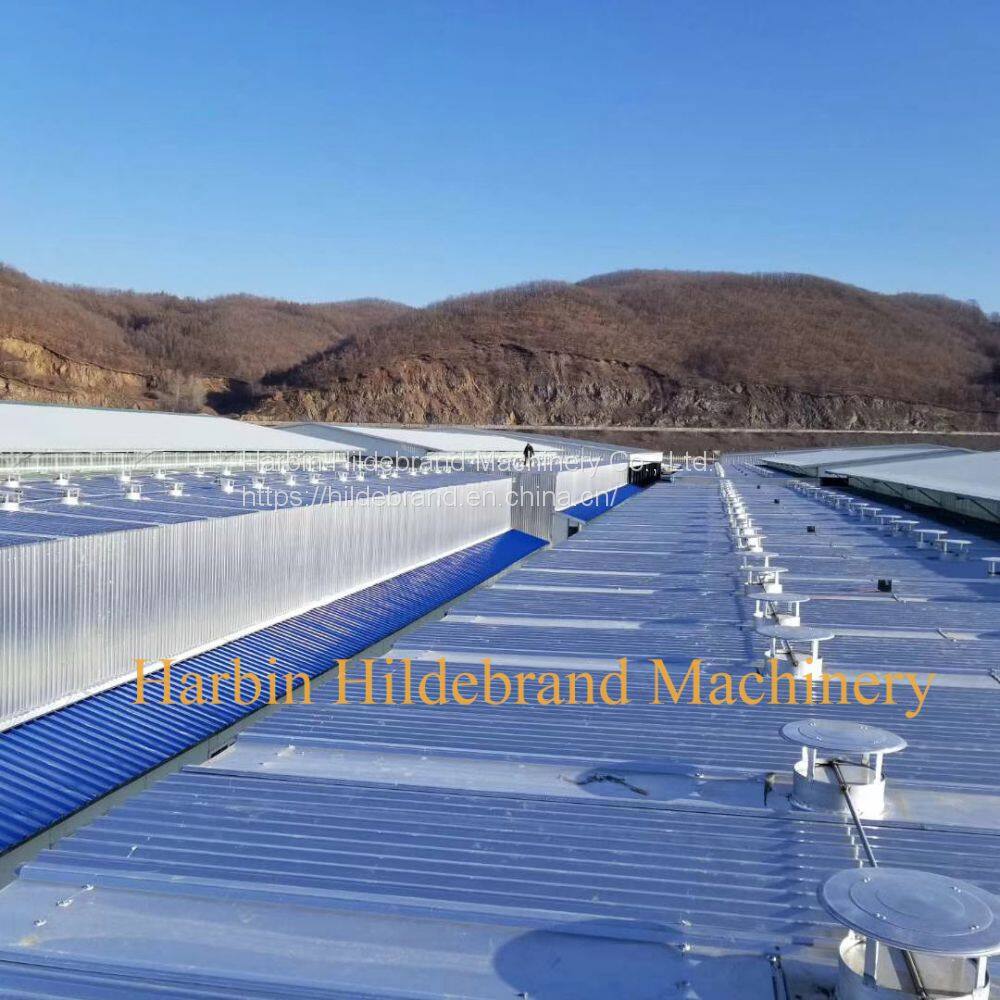

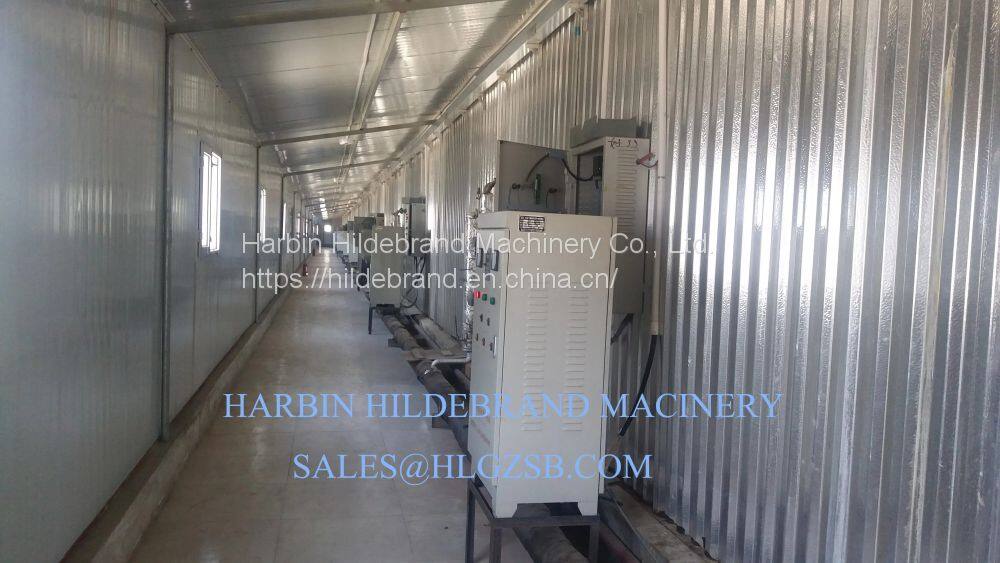

 Photos of Kilns:

Kiln Building Structure:

The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction  consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.

Door and Door Carriage:

International popular one-piece kiln door is in all aluminum suspension rail style. The whole kiln door is prefabed with fiber glass insulation to thoroughly prevent thermal bridge effect and to optimize inslulation performance. Particular high temperature resistant PVC insulation gasket strips are not aging in high temperature condition for a long time and will keep kiln door closely sealed. Door carriage adopts international popular style, stable movement, convenient to lift.  Single wheel main door bracket is easy to operate, stable lifting and dropping, flexible slide, 13m main door can be handled by only one single person.

LIGNOMAT Fully Automatic Control System

-All the products and technology from Lignomat are on asis of German HILDEBRAND drying techology.

-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.

-Most advanced self-detect and alarm system.

-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.

-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.

-Fast drying time, less energy consumption, high lumber quality.

-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no moise problem.

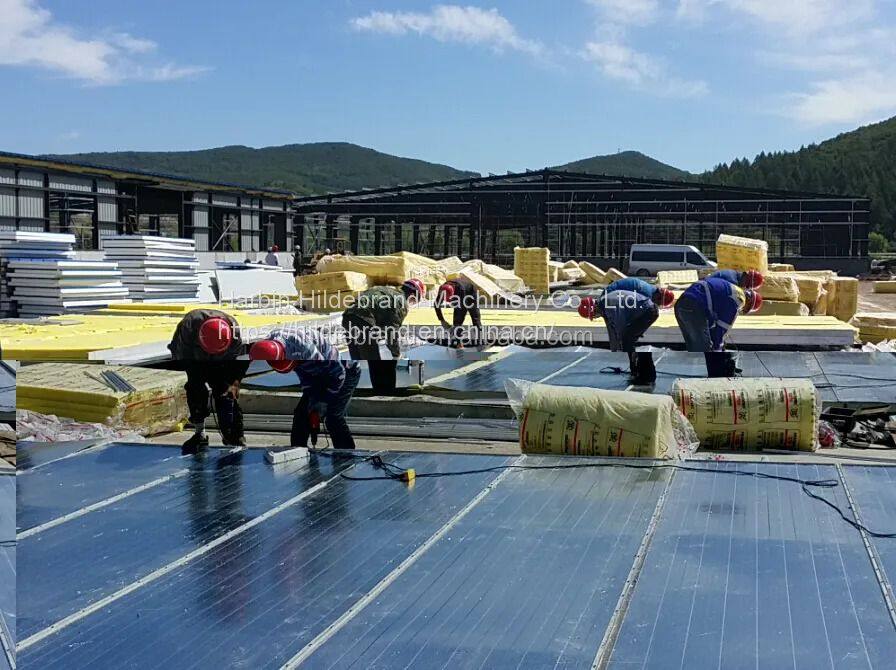

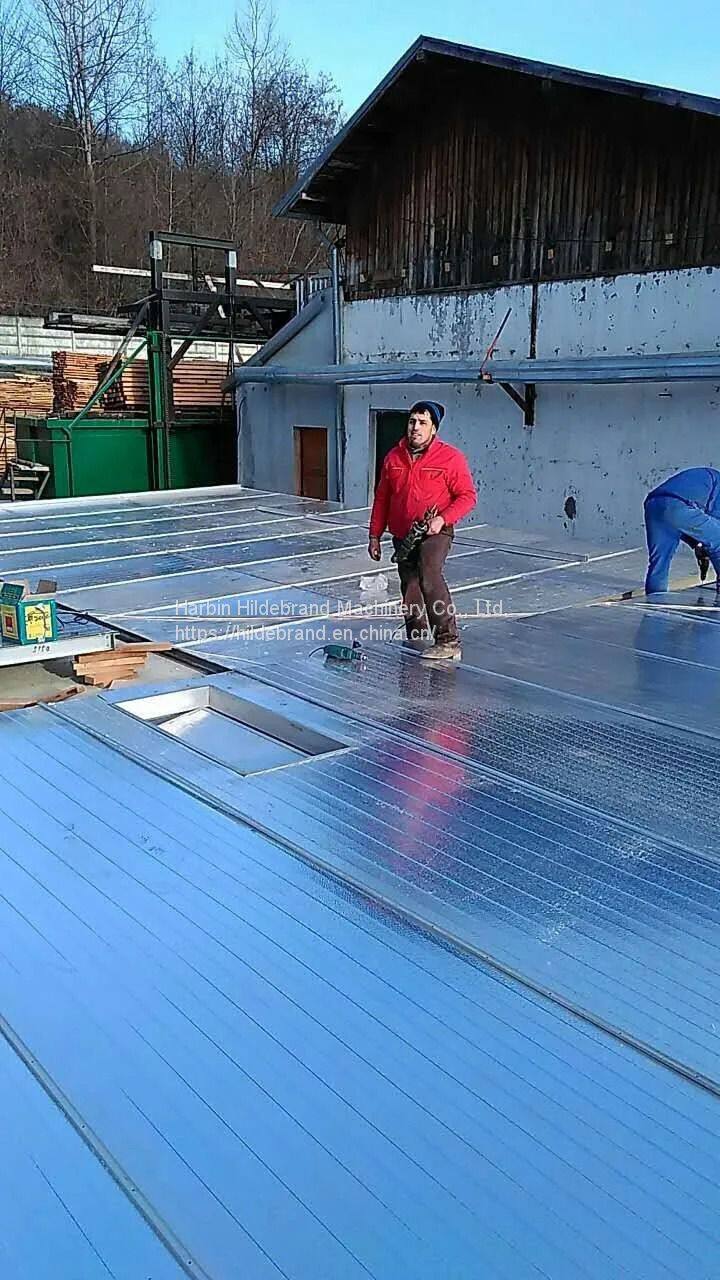

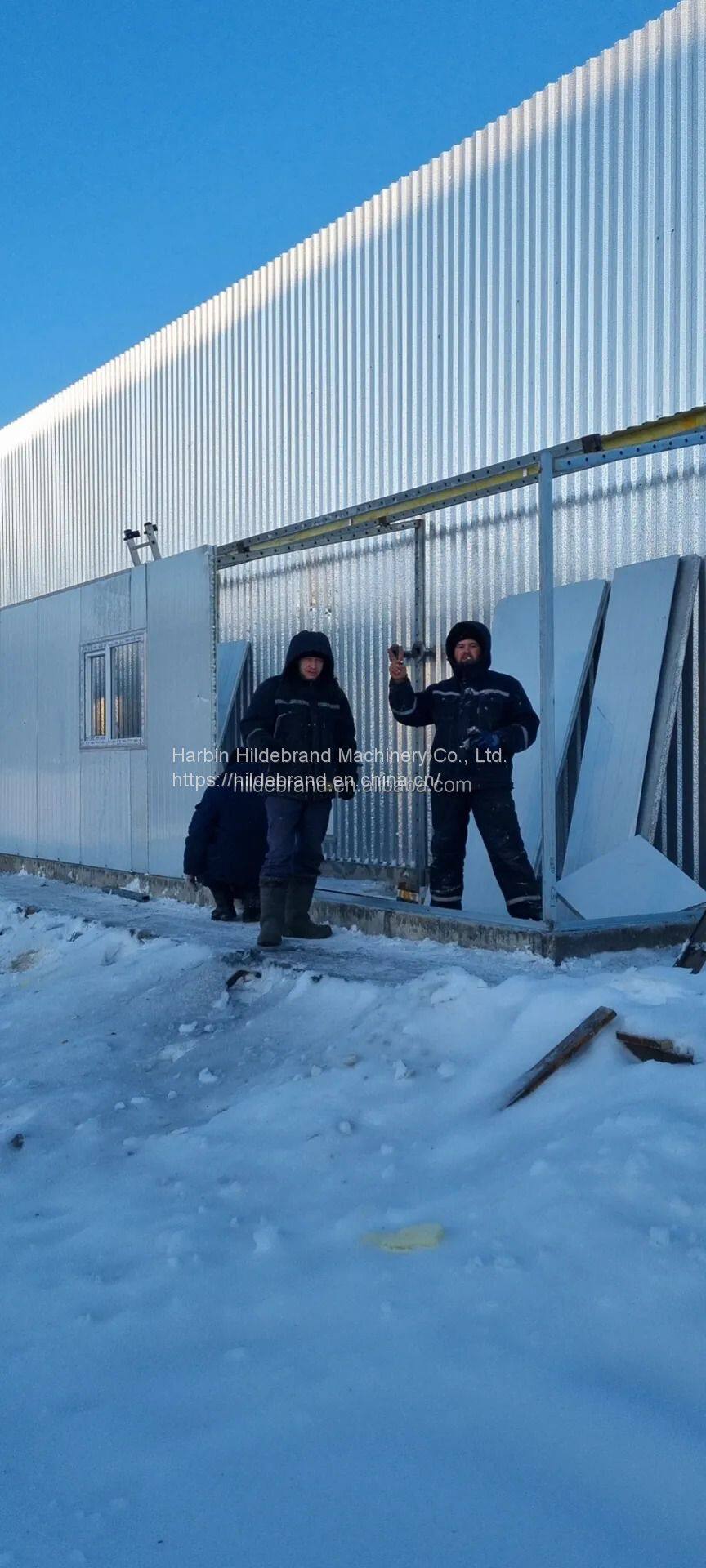

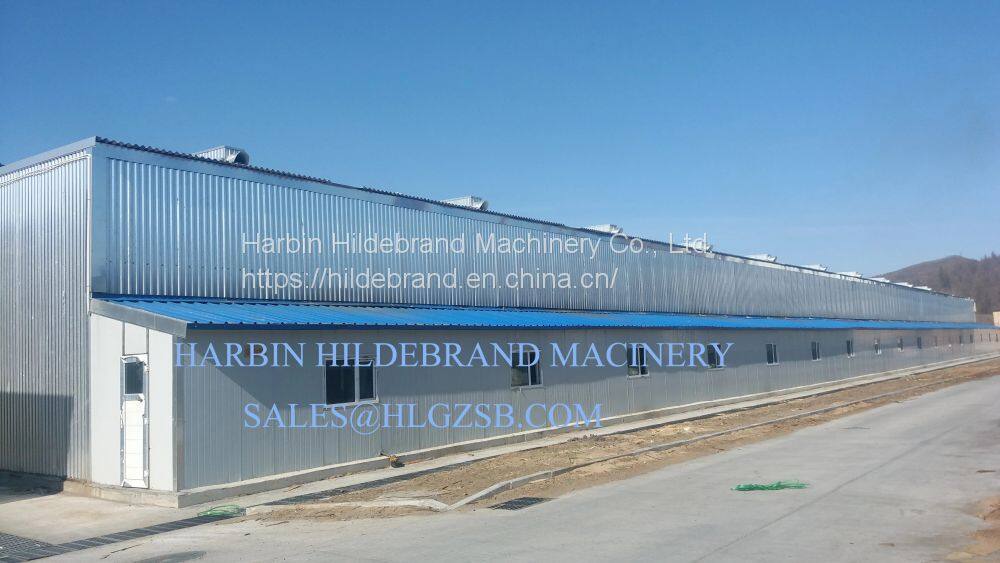

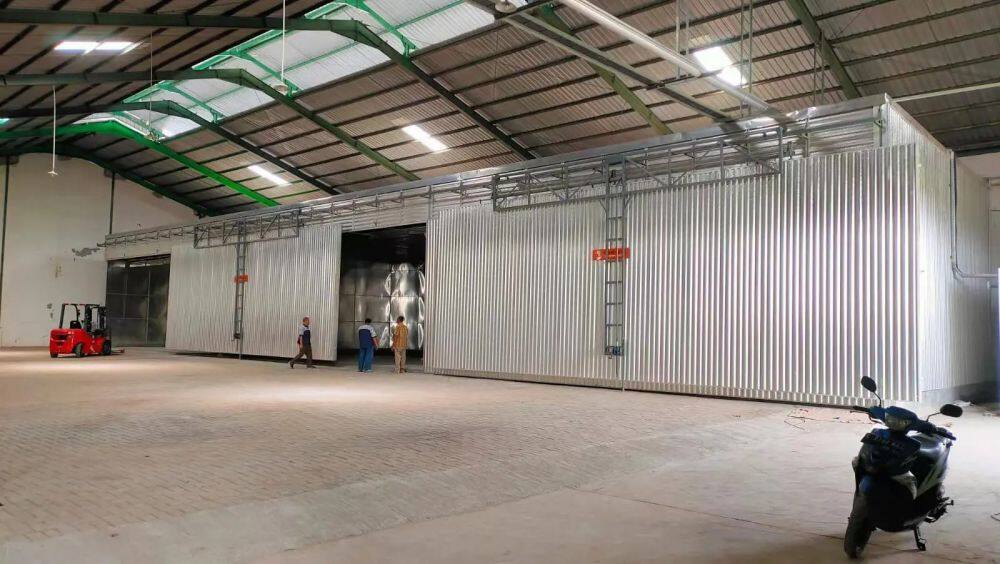

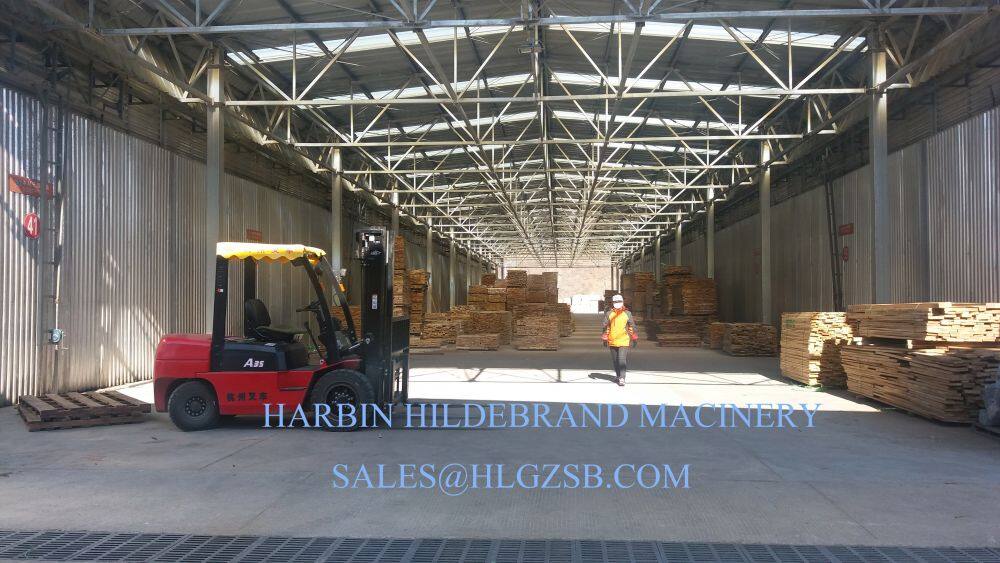

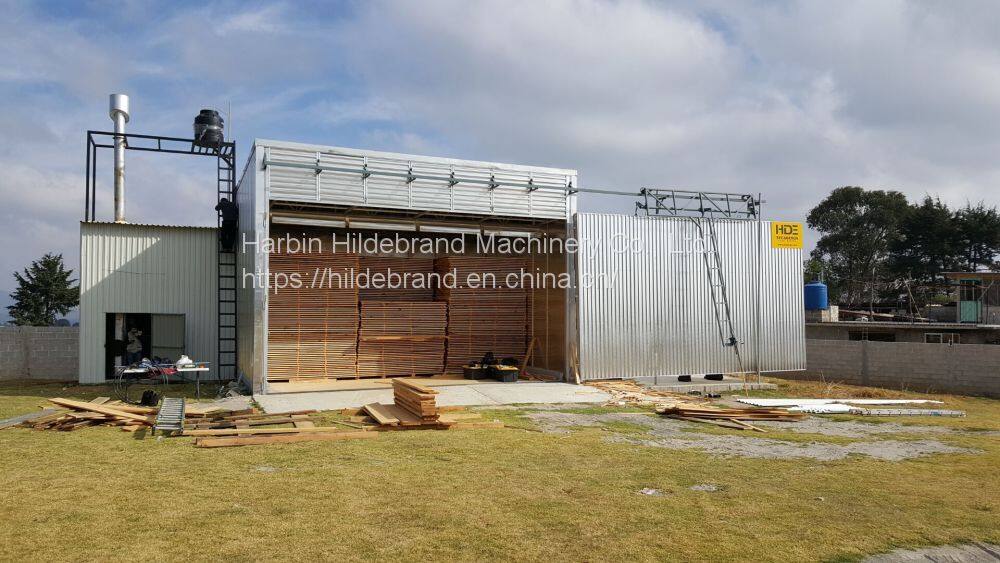

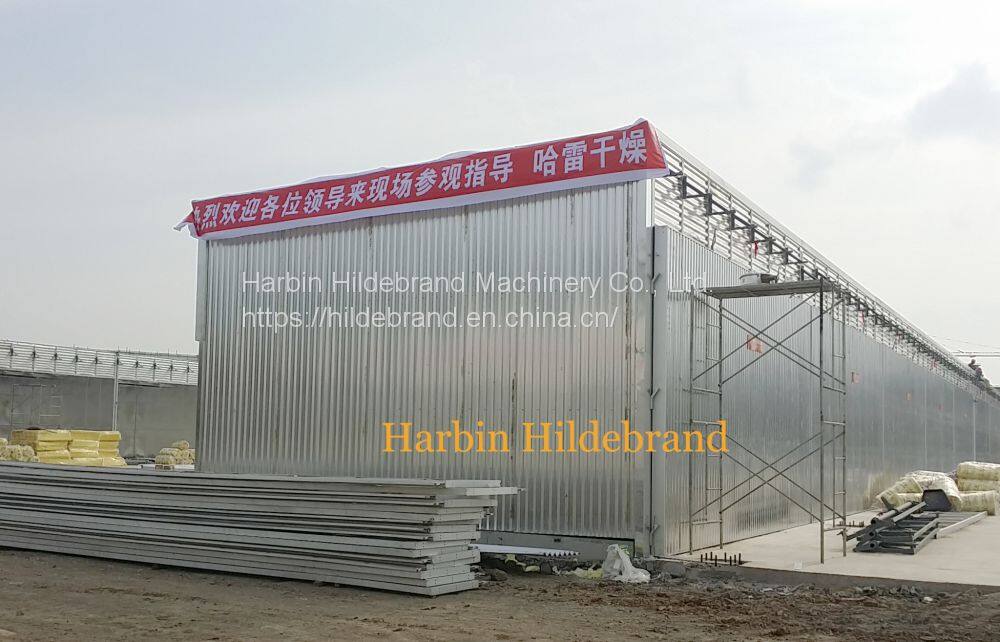

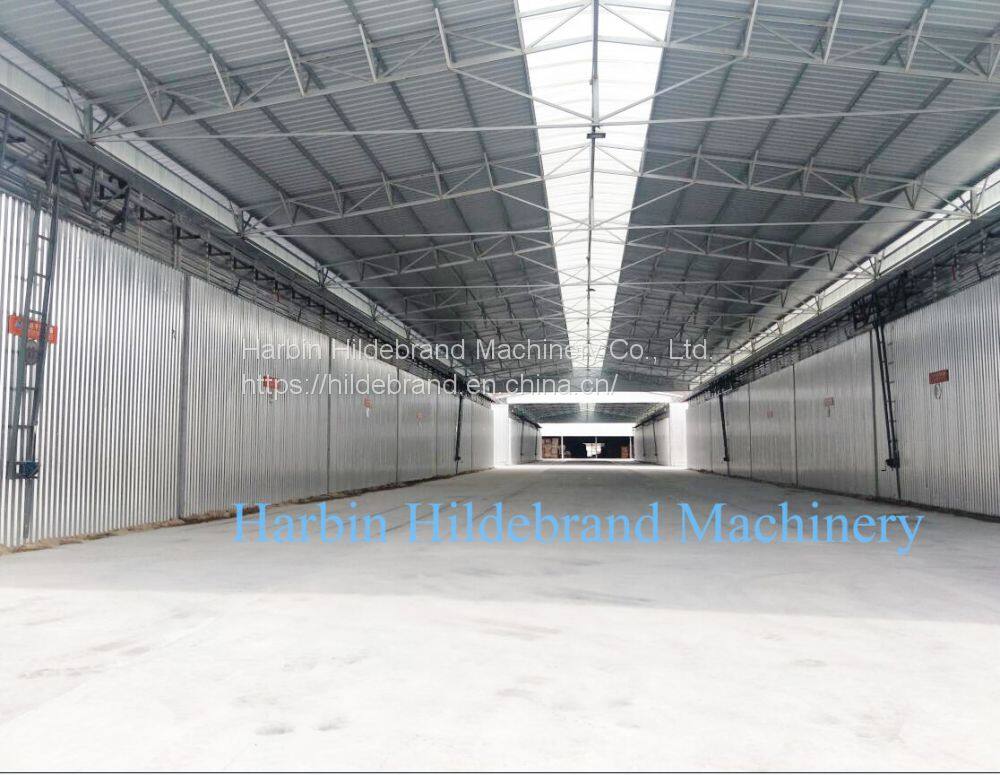

 Installation Photos:

Harbin Hildebrand Machinery Co.,ltd is a Sino-German joint venture, the first and biggest manufacturer of wood drying kiln in China, china wood drying kiln, timber drying kilns, kiln dryer for firewood, wood drying kiln for hard wood, softwood, firewood. Sino-Germany joint venture, professional provide kiln drying for wood.

Contact Lisa:

Email: sales@hlgzsb.com

Whatsapp: 8615846586548

When cusomer choose a wood drying kiln, the points need to be pay attention:

(1) The loading according of the lumber need to be loaded and dried in each chamber. According to the wood species, thickness, initial and final Moisture content of the lumber, determine the required number of the wood drying kin.

(2) The heating medium of the kiln customer want to choose, for the conventional wood drying kiln, the common heating medium can be steam, hot water, thermal oil, electricty. All these types of heating medium, Harbin Hildebrand are available to provide the relevant kilns.

(3) From the process performance, using performance, technology and material, comprehensive consider to choose drying kiln.

The aluminum and stainless steel wood drying kiln is anti-corrosion and have a long using life. Harbin Hildebrand with Germany pateneted technology power vent heat recovery system, recovery the heat energy, can save 10% energy. The high density of fiber glass insulation wool which ensure the good warm-keep function of the kiln. Full automatic control system with all kinds of wood species drying schdule in the software.

(4) The reliable supplier with long time history, good reputation, who understand not only the technology of wood drying kiln but also can provide professional drying technicial support. The supplier can be responsible for equipment installation, commisioning, technical traing and after-sales service. Harbin Hildebrand Machinery Co.,ltd was founded in 1985, the first and biggest manufacturer of wood drying kiln in China, always enjoy a high reputation, put customer's satisfaction as our commission.
