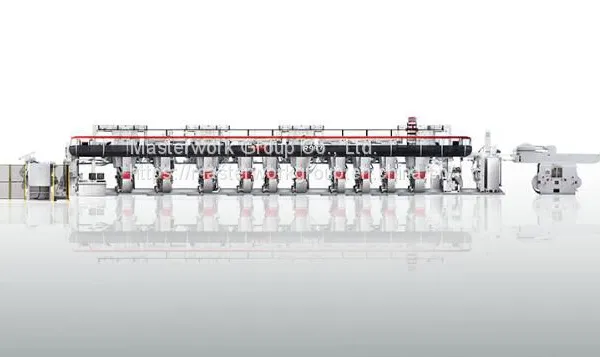

High Speed Gravure Printing Machine - MK R983
The Web-fed gravure printing MK R983 provided by MK is of high cost-performance. With the mature modular architecture, the customer can optimize the configuration of the unwinder unit, printing unit and sheeter depending on the diversified requirements.
Product Features

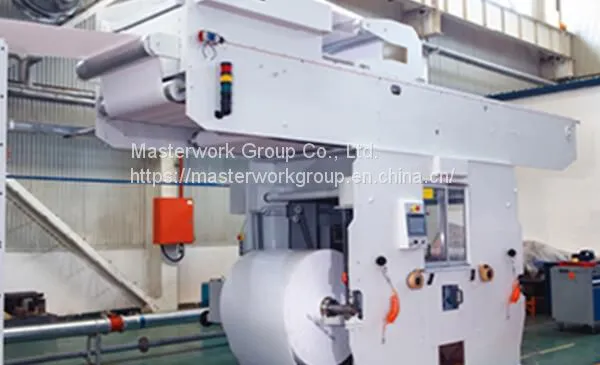

Unwinder
Two unwinding stations with the motorized reel braking
"Zero speed" non-stop auto web splicing
Butt-to-butt splicing with pneumatic expandable shaft
Splice web width from 400-850mm, available for various products
Doctor Blade
Sliding on ball-bushings applied to eliminate the stick-slip problem
Independently adjustable in height, parallelism and angle
Doctor blade can tilt backwards to facilitate replacement
Ink Trolley
Overall Stainless steel
Immersion type inking system with gathering pan and level pan
adjust height by handwheel
30-liter ink tank capacity
Demountable electrical ink pump
A.C Motors with Electronic Line-shaft
Independent drive, stable printing and accurate register
Minimize waste for start-up and transient conditions
Motor-driven lateral auto-adjustable stroke ±10mm

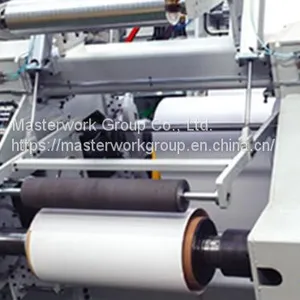

Rewinder
Reel fixing with expandable shaft
Independent drive for rewinding bracket
Worm type central rotary reducer with reel core locking
Register Device
Automated sidelay register control system
Special screened cable and remote control panel
High-speed register with less waste.
Register accuracy ± 0.1mm
Dancing Roller
Adjust Web tension by high precision motor
Rapid response and quick adjusting
Technical Parameter
Substrate |
80-300g/m2 |
web widths |
500-820mm |
Standard printing cylinder repeat range |
450-920mm |
Max.reel outer diameter -Unwinder |
1800mm |
Max. reel outer diameter -Rewinder |
1800mm |
Reel core inner diameter |
6"(152.4mm) |
Max. mechanical speed |
350m/min |
Register accuracy |
≤±0.10mm |
Web tension range |
10-100 daN |
Ink tank capacity |
30L |
Motor rated power -Printing unit |
13KW |
Motor rated power -Unwinder |
34KW |
Motor rated power -Rewinder |
28KW |
Air Supply |
Pressure Min.6bar,flow rate 20m³/h |
Machine Total weight |
≈85T |
Reel core inner diameter |
3"(76.2mm)/12"(304, 8mm) |
Max. sheeting speed |
24,000 sheets/hour |
Cutting tolerance |
≤±0. 08mm |
High-Speed Gravure Printing Machine
Throughout the use of a central control system, including PLC control, touch screen interface, technical operators can easily and accurately monitor the required printing quality.
This high speed rotogravure press can reach printing speed up to 350m/min. For clients who have requirement for frequent mass production, this high speed rotogravure press can be your perfect choice.
