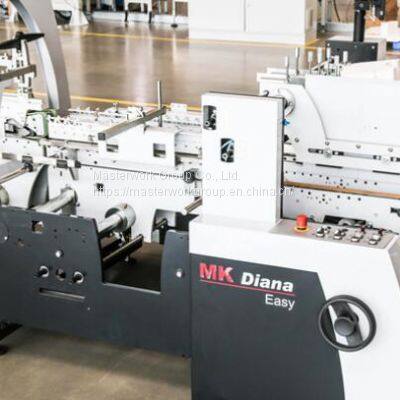

MK Diana Easy 65/85/115
Besides the excellent genes on Diana Easy from Diana series, more energy-saving is available due to optimized driving system, shorter time for commission is needed and higher productivity can be reached due to the easier work on optimized modular units. Lower maintenance cost can be assured due to its easier work. Upgrading work can be done at any time necessary due to the reserved interface for extension. It fits for 3 formats, i.e. 65/85/115.
Product Features
(1)Machine Interface and Automations

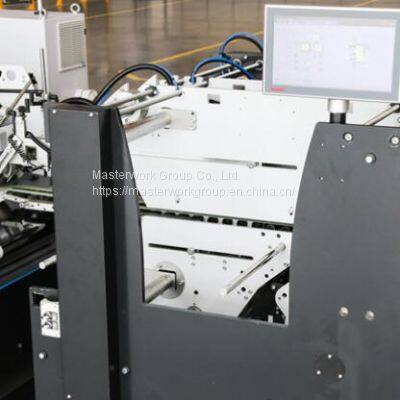

Touch-screen for machine operations
Easy, intuitive handling of machine interface with self-explanatory navigation menu
SmartSet: positioning of all carriers can be stored for repeat jobs (optional)
DigiSet: automatic first set-up calculation for the positions of all carriers (optional)
(2)Compression Section For the formats 85 and 115 cm
600 mm wide compressing belt
2,4 m pressing section
Softrubber belt for precise pressure balance
Optional Start/Stop function
(3)Transfer Section
Two upper and lower carriers
Manual adjusting of upper carriers, motorized adjusting of lower carriers
Inline ejector optional or easy retrofitting
Touch-screen control panel for comfortable machine operation
(4)Folding Station
Telescopic upper right and left roller bar
Left before right folding and right before left folding as standard
Central carriers as option or easy retrofitting
Upper roller bar tiltable, easy manual assembly and dissembly of lower carriers due to light -weight construction
Belt fold down to 45 mm open carton width are possible (optional)
(5)Lockbottom Module
Left, middle and right transmission belt as standard configuration
Glue flap prefolder device at DS could be installed as optional
Reserved installation position for the second unit back folding shaft
Lockbottom box is equipped with gluing system optionally
(6)Prefolding Module
Low side frame design gives perfect accessibility for the operator
Prebreaking for crease lines 1 and 3
Prepared for code reader
Upper and lower central carriers (option and retrofitting)
Technical Parameter
Technical Data |
|
Max. carton width |
650mm(Diana Easy 65); |
Min .carton width |
75mm(Mini cartons as optional:45mm) |
Max.carton length |
600mm |
Sheet size |
200-600(g/m2) N/E/F micro-currugated board |
Sheet size corresponds as follows |
|
ing speed |
350m/min |
Full load power |
40KVA |
Dimensions |
Length:standard configuration is 15.5 m |
(Diana Easy 65/85/115) |
Width:2.36m/2.56m/2.86m |
Air source requirements |
6-10 bar,the maximum flow rate is 0.6m3/min |
