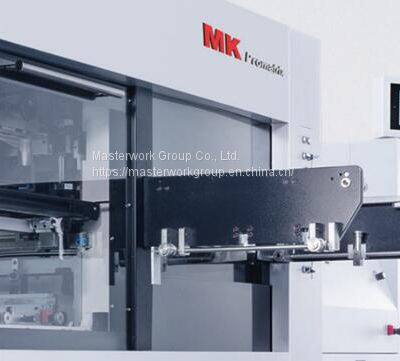

Promatrix 106CS
Promatrix 106CS is the new developed rotary gripper opening die-cutter with speed of 8,000s/h. It fits in both paper or cardboard of 90-2000g/m² and corrugated board less than 4mm. Promatrix 106CS can ensure your efficiency and productivity and is the best option for your cutting due to its high precision work.
Product Features
(1)Non-stop Feeder
Suction head for paper, board and corrugated board
Suction head with quick positioning function
Pile platform with motorized side pile adjustment
Mechanical double-sheet detection
(2)Feed Table
Register system
Pull/Push side lay on both sides
Suction belt table
Central adjustment system for rollers and brushes
Four front lays with active optical monitoring
Gripper opening for misaligned sheets
Ultrasonic double-sheet detector
(3)Cutting Station
Register system
Motorized cutting pressure adjustment
Pneumatic locking device for die-cutting chase and cutting plate
Cutting plate fine adjustment
Air cushion for easy cutting plate handling
Quick lock chase
Chase Changer (optional)
(4)Stripping Station
Register system
Integrated quick lock systems for all tools (top, middle, bottom)
Fine adjustment of tools with position indicators
Test sheet removal
Electronic sheet monitoring
Pre-make-ready table (optional)
(5)Systems Engineering
Touch-screen for machine operation
Local operation panels
CE Conformity
GS Certificate

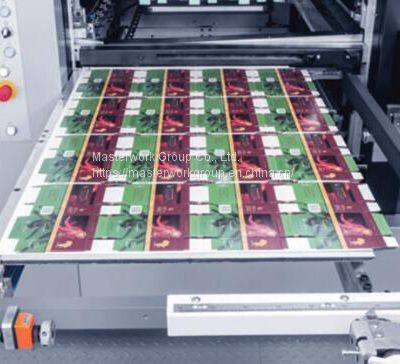

(6)Delivery
Non-stop rolling carpet
Pneumatic flap for test sheet removal
Sheet size adjustment with position indicators
Sheet brake brush with motorized brake force adjustment
Tape inserter (optional)
Gripper edge removal system(optional)
Technical Parameter
Suitable material: |
|
Paper (min.) |
90g/m2 |
Carton Board (max.) |
2,000 g/m2 |
Corrugated Board (max.) |
4 mm |
Performance data: |
|
Sheet size (max.) |
760x 1,060 mm |
Sheet size (min.) |
300 X 350 mm |
Cutting pressure (max.) |
2.6 MN / 260 t |
Machine speed (max.) |
8,000 s/h |
Pile heights (incl. Pallet): |
|
Feeder pile height (max.) |
|
- w/o non-stop |
1,500mm |
- in non-stop operation |
1,200mm |
Delivery pile height (max.) |
1,400 mm |
