DFASY600-1000 Series High Speed Gravure Printing Machine

DFASY600-1000 Series High Speed Gravure Printing Machine photo-1
US$ 1 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
GUOTAI
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name GUOTAI
Model Number DFASY
Usage Paper Printer
Automatic Grade Automatic
Voltage as required
Gross Power 18kw
Dimensions(L*W*H) 8800*1400*2000mm
Certification CE,SGS,ISO9001:2000
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

DFASY600-1000 Series High speed Gravure Printing Machine
1.Suitable for various soft packages
2.Controled by computer

DFASY600-1000 Series High speed Gravure Printing Machine

1.Suitable for various soft packages
2.Controled by computer



Configeration

Model of machine

DFASY-600

DFASY-800

DFASY-1000

Width of Printing

600mm

800mm

1000mm

Printing Speed

10-120m/min

10-120m/min

10-120m/min

Version Accuracy

<0.15mm

<0.15mm

<0.15mm

Length of Printing

200-1250mm

200-1250mm

200-1250mm

Diameter of Roll

600mm

600mm

600mm

Total Power

18kw

21kw

24kw

Outline Dimension

8800×1400×2000mm

8800×1600×2000mm

8800×1800×2000mm



Performance and Features
1.Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.
2.Main motor equipped with frequency converter for speed regulation
3.Unwinding tension automatic tension controller and magnetic powder brake.
4.Rewinding adopts torque motor,double-station automatic turret.
5.Closed oven and independent heating hot air blowing system, automatic constant temperature system.
6.Pneumatic impressing system and pneumatic doctor blade system
7.Diaphragm-type pneumatic ink auto circulating system

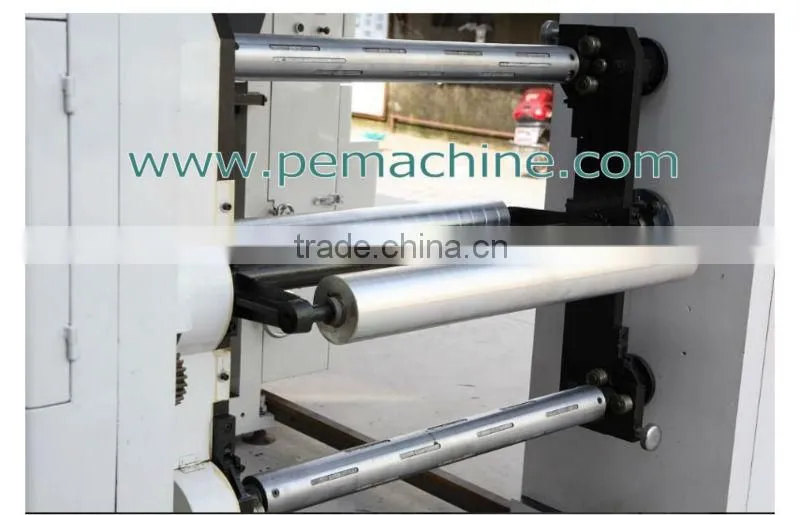

8.Inflatable air shaft for unwinding/rewinding material loading
9.Printing linear speed and meter counting display

10.Shaft less printing cylinder loading device,printing cylinder is fixed by shaft-less air chuck.

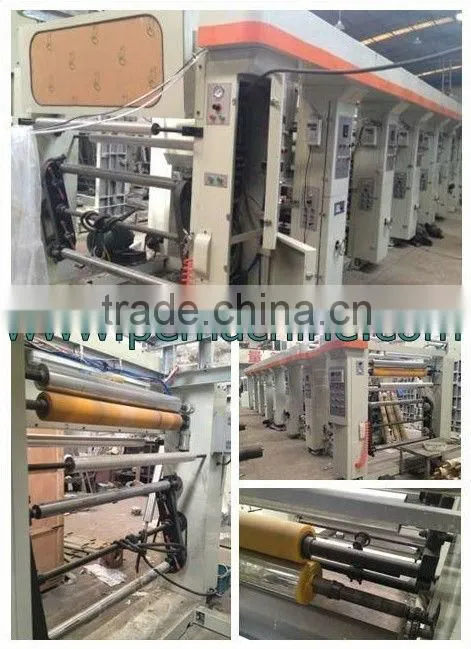

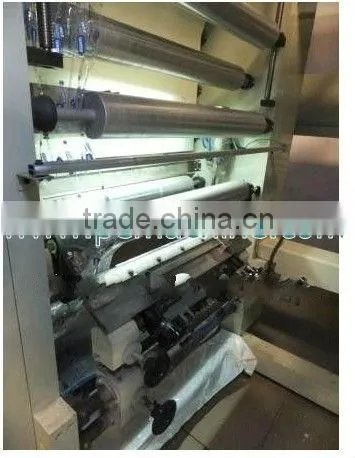

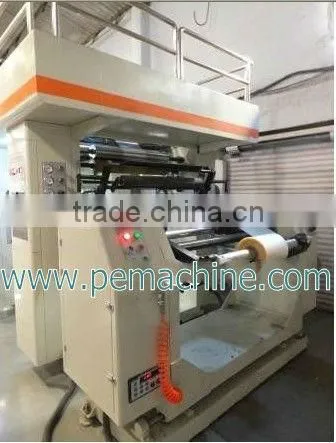

DFASY600-1000 Series High speed Gravure Printing Machine













































DFASY600-1000 Series High speed Gravure Printing MachineDFASY600-1000 Series High speed Gravure Printing MachineDFASY600-1000 Series High speed Gravure Printing MachineDFASY600-1000 Series High speed Gravure Printing MachineDFASY600-1000 Series High speed Gravure Printing Machine



 DFASY600-1000 Series High speed Gravure Printing Machine
