K Series K12 Needle Roller Cage Assembly K14 Needle Bearing

K Series K12 Needle Roller Cage Assembly K14 Needle Bearing thumbnail-1
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing thumbnail-2
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing thumbnail-3
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing thumbnail-4
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing thumbnail-5
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing photo-1
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing photo-2
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing photo-3
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing photo-4
K Series K12 Needle Roller Cage Assembly K14 Needle Bearing photo-5
US$ 0.6 - 1.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLUEN
Place of Origin:
China
Model Number:
K12/K14
Contact Supplier Request Quote Chat Now
Changzhou Bluen Bearing Co..Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLUEN
Place of Origin China
Model Number K12/K14
Number of Row Single Row
Seals Type OPEN
Precision Rating P0
Outside Diameter 5, 46
Bore Size 3, 40

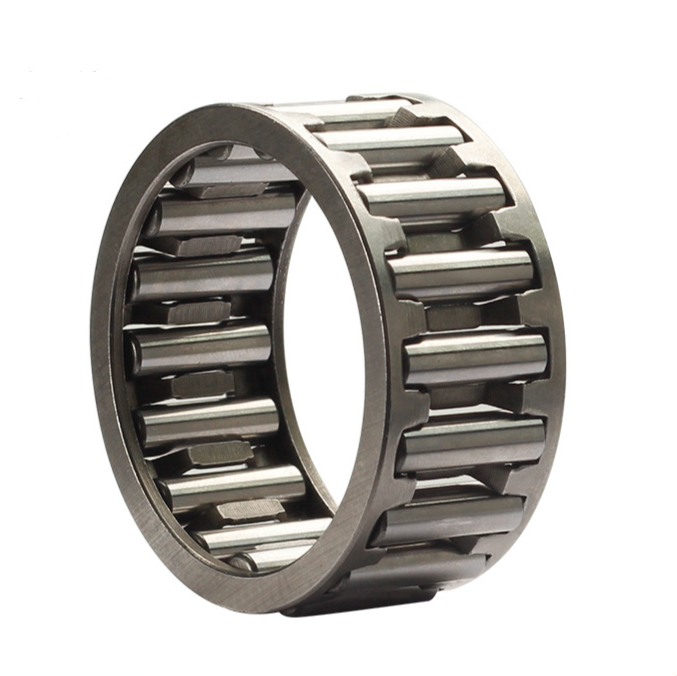

K12/K14 K Series Needle Roller Cage Assembly


K Series Radial Needle Roller and Cage Assemblies:

  • can support high radial loads

  • are suitable for applications with a very small radial design envelope, where the raceways on the shaft and in the housing are designed as rolling bearing raceways (direct bearing arrangement)

  • combine the load carrying capacity advantages of full complement needle roller bearing arrangements with the speed advantages of a cage bearing

  • allow high speed

  • have a high running accuracy

  • result in rigid bearing arrangements

  • are easy to mount

  • permit technically straightforward, economical and cost-effective designs

Dimensions and Capacities





Model Number

 Dimensions(mm) Rated load(n) Allowable revolutions(rpm)


Weight

(g)

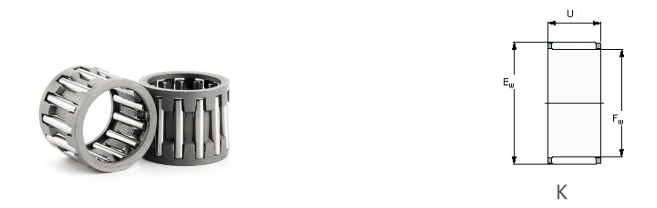

Inner race Outer race Thickness Dynamic load Static load


Oil
Fw Ew U Cr C0
K 3x 5x 6 3 5 6 1900 1500 35000 -
K 3x 6x 7 3 6 7 2000 1600 35000 -
K 4x 6x 5 4 6 5 2300 1880 36000 -
K 4x 7x 7 4 7 7 2400 2080 36000 -
K 5x 8x 8 5 8 8 2300 1880 37000 0.7
K 5x 8x10 5 8 10 2800 2450 37000 0.9
K 6x 9x 8 6 9 8 2560 2240 35000 0.8
K 6x 9x10 6 9 10 3300 3100 35000 1.0
K 6x10x13 6 10 13 3500 2800 33000 1.3
K 7x10x 8 7 10 8 2750 2550 32000 0.9
K 7x10x10 7 10 10 3350 3400 32000 1.1
K 8x11x 8 8 11 8 3000 2900 30000 1.1
K 8x11x10 8 11 10 3830 3950 30000 1.7
K 8x11x13 8 11 13 5000 5700 30000 1.8
K 8x12x10 8 12 10 4900 4600 30000 1.3
K 9x12x10 9 12 10 4200 4700 30000 1.5
K 9x12x13 9 12 13 5500 6700 30000 1.9
K10x13x10 10 13 10 4500 5250 27000 1.6
K10x13x13 10 13 13 6000 7600 27000 2.1
K10x13x16 10 13 16 6300 7800 27000 2.2
K10x14x10 10 14 10 7000 7900 27000 2.9
K10x14x13 10 14 13 8000 9100 26000 4.3
K10x16x12 10 16 12 7000 9300 27000 3.7
K12x15x 9 12 15 9 4120 5210 25000 2.7
K12x15x10 12 15 10 4320 5730 25000 1.9
K12x15x13 12 15 13 6000 8100 25000 2.4
K12x16x 8 12 16 8 4200 4700 25000 2.9
K12x16x10 12 16 10 6000 6900 25000 3.8
K14x17x10 14 17 10 5100 6800 23000 4.0
K14x17x17 14 17 17 9300 14000 23000 6.8
K14x18x10 14 18 10 6800 8300 23000 4.8
K14x18x13 14 18 13 8100 9800 23000 6.3
K14x18x14 14 18 14 9200 12000 23000 6.8
K14x18x15 14 18 15 10000 13000 23000 7.3
K14x18x17 14 18 17 10500 13900 23000 8.1
K14x20x12 14 20 12 900 10500 22000 8.6
K15x18x14 15 18 14 7500 11000 23000 5.3
K15x18x17 15 18 17 9600 15900 23000 6.4
K15x19x10 15 19 10 7200 9000 22000 5.1
K15x19x13 15 19 13 8300 9800 22000 7.0
K15x19x17 15 19 17 10300 15000 22000 8.8
K15x19x24 15 19 24 12800 20100 22000 10.5
K15x19x13 15 20 13 9700 11000 22000 8.9
K15x21x12 15 21 12 10000 13000 22000 10.0
K15x21x15 15 21 15 13800 16000 22000 13.0
K15x21x21 15 21 21 18000 24000 22000 18.2
K16x20x10 16 20 10 7600 9700 22000 5.7
K16x20x13 16 20 13 8700 11300 22000 7.1
K16x20x17 16 20 17 11200 16300 22000 9.2
K16x21x10 16 21 10 9000 12000 22000 6.7
K16x22x12 16 22 12 11000 12000 21000 10.4
K16x22x13 16 22 13 12000 13400 21000 11.9
K16x22x16 16 22 16 14300 17000 21000 13.7
K16x22x20 16 22 20 18000 22300 21000 16.7
K16x23x14 16 23 14 19000 21000 19000 20.0
K16x24x20 16 24 20 21100 23000 20000 24.9
K17x21x10 17 21 10 7900 10100 21000 5.6
K17x21x13 17 21 13 10000 14100 21000 7.5
K17x21x17 17 21 17 12000 17400 21000 9.5
K17x23x14 17 23 14 11000 15000 21000 11.5
K18x22x10 18 22 10 8200 9900 20000 6.1
K18x22x13 18 22 13 9000 12100 20000 7.7
K18x22x17 18 22 17 11900 17600 20000 10.8
K18x24x12 18 24 12 11200 12900 20000 11.6
K18x24x13 18 24 13 12900 14900 20000 12.6
K18x24x13.5 18 24 13.5 12900 14900 20000 13.0
K18x24x20 18 24 20 20000 26500 20000 19.0
K18x25x14 18 25 14 16500 18800 20000 14.9
K18x25x22 18 25 22 22900 28400 20000 24.3
K18x26x14 18 26 14 18000 20000 18000 19.0
K18x28x16 18 28 16 19000 18400 19000 24.0
K19x23x13 19 23 13 9300 13000 20000 8.2
K19x23x17 19 23 17 12000 18600 20000 11.1
K20x24x10 20 24 10 8700 12100 19000 6.5
K20X24x12 20 24 12 9600 13800 19000 8.0
K20X24x13 20 24 13 9600 13800 19000 8.9
K20X24x17 20 24 17 12400 20000 19000 11.2
K20X26x12 20 26 12 13100 15700 19000 13.2
K20X26x16 20 26 16 18000 25000 18500 17.5
K20X26x17 20 26 17 18700 25500 19000 18.2
K20X26x20 20 26 20 20600 28500 19000 22.0
K20X28x20 20 28 20 23400 28000 18000 26.8
K20X28x25 20 28 25 30000 28500 18000 36.2
K20X30x30 20 30 30 35000 41000 18000 56.0
K21x25x13 21 25 13 9600 14500 19000 9.0
K21x25x17 21 25 17 12800 21000 19000 12.0
K22x26x10 22 26 10 8700 12900 18000 7.1
K22x26x13 22 26 13 10000 15400 18000 9.4
K22x26x17 22 26 17 13100 22100 18000 12.1
K22x27x13 22 27 13 14000 23000 18000 10.8
K22x28x17 22 28 17 19000 26500 18000 19.7
K22x28x23 22 28 23 20000 27000 19000 26.0
K22x29x16 22 29 16 19500 25000 17000 22.2
K22x30x15TN 22 30 15 19600 22900 17000 14.4
K22x30x20 22 30 20 21000 23500 18900 28.0
K22x32x24 22 32 24 33500 39500 16000 43.4
K23x35x16 23 35 16 24000 23400 15000 30.0
K24x28x10 24 28 10 9400 14300 17000 8.1
K24x28x13 24 28 13 10500 17000 17000 10.1
K24x28x17 24 28 17 14000 24500 17000 13.2
K24x29x13 24 29 13 13100 19100 16000 13.5
K24x30x17 24 30 17 19000 27000 16000 21.5
K24x30x31 24 30 31 27000 43000 16000 39.1
K25x29x10 25 29 10 9700 16000 16000 8.3
K25x29x13 25 29 13 10800 16000 16000 10.4
K25x29x17 25 29 17 14500 16000 16000 13.7
K25x30x13 25 30 13 14100 16000 16000 12.9
K25x30x20 25 30 20 21100 16000 16000 20.5
K25x30x25 25 30 25 21700 15000 15000 21.0
K25x30x26 25 30 26 20100 15000 15000 21.6
K25x31x17 25 31 17 79000 16000 16000 21.8
K25x31x21 25 31 21 24100 16000 16000 26.2
K25x32x16 25 32 16 20500 15000 15000 24.5
K25x33x20 25 33 20 28000 15000 15000 32.0
K25x33x24 25 33 24 33900 15000 15000 38.7
K25x34x18 25 34 18 48000 15000 15000 32.0
K25x35x30 25 35 30 46500 14000 14000 65.5
K25x30x26 25 30 26 21000 35000 14000 27.0
K26x30x10 26 30 10 9500 15500 16000 9.0
K26x30x13 26 30 13 11100 18700 16000 11.4
K26x30x17 26 30 17 14700 27000 16000 15.0
K26x31x13 26 31 13 12400 18400 15000 9.9
K26x30x22 26 30 22 15200 28000 16000 12.3
K28x32x16.5 28 32 16.5 15000 34000 14000 18.0
K28x32x17 28 32 17 15000 32400 14000 18.2
K28x33x13 28 33 13 14800 32400 14000 15.2
K28x33x17 28 33 17 19100 23600 14000 19.5
K28x33x27 28 33 27 22800 33000 14000 19.0
K28x34x17 28 34 17 21300 40500 14000 24.2
K28x35x16 28 35 16 21000 35000 14000 29.0
K28x35x18 28 35 18 23500 29000 14000 31.0
K28x35x20 28 35 20 24000 33500 14000 35.0
K28x35x27 28 35 27 34500 34000 14000 47.0
K28x36x16 28 36 16 34000 54500 11000 40.0
K28x40x18 28 40 18 33000 47000 12000 50.0
K28x40x25 28 40 25 45000 36500 12000 71.0
K30x34x13 30 34 13 11800 54500 13000 14.6
K30x35x13 30 35 13 15100 21200 13000 16.3
K30x35x17 30 35 17 19100 25000 13000 21.3
K30x35x27 30 35 27 30000 33500 13000 33.3
K30x37x16 30 37 16 22500 58500 13000 26.4
K30x38x25 30 38 25 16000 33000 13000 43.0
K30x40x18 30 40 18 31500 39000 12000 44.0
K30x40x30 30 40 30 48500 39500 13000 78.0
K30x35x26 30 35 26 23500 68500 12000 32.0
K32x37x13 32 37 13 15000 43500 12000 18.3
K32x37x17 32 37 17 19400 25000 12000 22.4
K32x37x27 32 37 27 29500 59500 12000 36.7
K32x37x28 32 37 28 23100 43000 12000 22.3
K32x38x16 32 38 16 21000 34000 12000 25.0
K32x38x20 32 38 20 26000 44500 12000 31.0
K32x38x26 32 38 26 27000 46500 12000 25.2
K32x39x16 32 39 16 23500 35000 12000 36.7
K32x39x18 32 39 18 26000 40500 12000 37.2
K32x40x20 32 40 20 37000 40500 12000 48.0
K32x40x36 32 40 36 53500 91500 12000 73.0
K32x46x32 32 46 32 65500 82500 11000 119.0
K32x40x42TN 32 40 42 49500 83500 12000 77.1
K35x40x13 35 40 13 15800 27500 11000 18.8
K35x40x17 35 40 17 20300 38000 11000 25.3
K35x40x25 35 40 25 29000 59500 11000 31.0
K35x40x27TN 35 40 27 24500 48000 11000 23.4
K35x40x27 35 40 27 27800 621400 11000 28.0
K35x40x30 35 470 30 25000 49500 11000 43.0
K35x42x16 35 42 16 23900 37000 11000 34.0
K35x42x18 35 42 18 27000 42500 11000 39.2
K35x42x30 35 42 30 38500 67500 11000 62.4
K35x43x18 35 43 18 28000 41500 11000 38.0
K35x45x20 35 45 20 36500 49500 10000 55.5
K35x45x30 35 45 30 52500 78500 10000 80.0
K35x45x49 35 45 49 81500 13400 10000 120.0
K35x40x30 35 40 30 31500 65500 11000 48.0
K35x42x20 35 42 20 29500 48500 11000 41.0
K36x41x30 36 41 30 23000 43000 11000 52.0
K36X42X16 36 42 16 24000 42000 11000 50.0
K37x42x17 37 42 17 21900 42500 10000 25.8
K37x42x27 37 42 27 31500 67500 10000 40.7
K37x45x26 37 45 26 43500 73500 10000 60.5
K38x43x17 38 43 17 20000 38000 10000 26.1
K38x43x27 38 43 27 31000 67500 10000 43.2
K38x46x20 38 46 20 35000 56500 10000 46.0
K38x46x32 38 46 32 54500 98500 10000 72.7
K39x44x24 39 44 24 28000 58500 10000 38.0
K39x44x26 39 44 26 27000 55500 10000 29.5
K40x44x13 40 44 13 13500 28000 10000 20.0
K40x45x13 40 45 13 17100 32000 10000 21.5
K40x45x17 40 45 17 20900 41000 10000 27.4
K40x45x21 40 45 21 24400 49500 10000 36.5
K40x45x27 40 45 27 32500 72500 10000 46.0
K40x46x17 40 46 17 24500 44500 9000 30.0


Product Tags: One way bearing , One way clutch , Needle Bearing , Needle Cage Assembly , Cam clutch , Freewheel clutch , Clutch

Send Inquiry to This Supplier

* Message
0/5000

Want the best price? Post an RFQ now!
Changzhou Bluen Bearing Co..Ltd
Verified Business License
Business Type
Other
Year Established
2018
Factory Size
1,000-3,000 square meters
Annual Export Value
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Deep Groove Ball Bearing Deep Groove Ball Bearing
Cylindrical Roller Bearing Cylindrical Roller Bearing
Taper Roller Bearing Taper Roller Bearing
Spherical Roller Bearing Spherical Roller Bearing
Angular Contact Ball Bearing Angular Contact Ball Bearing
Pillow Block Bearing Pillow Block Bearing
Slewing Bearing Slewing Bearing
Bearing Accessories Bearing Accessories
Plain Bearing Plain Bearing
Spherical Plain Bearing Spherical Plain Bearing
Thrust Ball Bearing Thrust Ball Bearing
Linear Bearing Linear Bearing
Self-Aligning Ball Bearing Self-Aligning Ball Bearing
Thrust Self-aligning Roller Bearing Thrust Self-aligning Roller Bearing
Other Bearing Other Bearing
Special Bearing Special Bearing
Four Point Contact Ball Bearing Four Point Contact Ball Bearing
Thrust Needle Roller Bearing Thrust Needle Roller Bearing
Thrust Taper Roller Bearing Thrust Taper Roller Bearing
