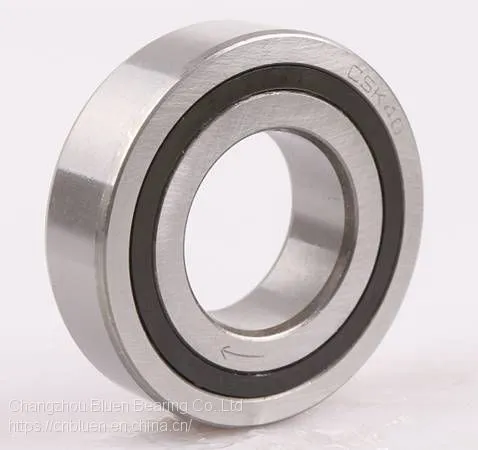

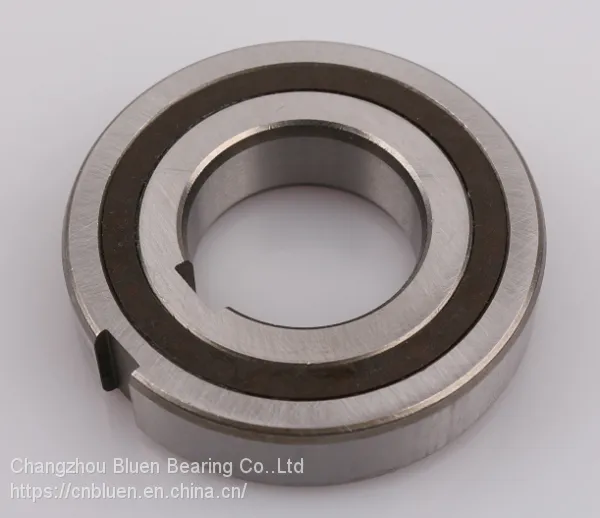

CSK8 - CSK40 Sprag Type One Way Freewheel Clutch Bearings
- 10000 Piece / Pieces per Month
- Shanghai / Ningbo / Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Other
- 1 days
- mould ,plastic mould. injection mould ,plastic injection
- plastic , plastic product, plastic injection, plastic accessory, plastic part.
- aluminium and zinc hardware sliding Windows lock for OEM
- zamak windows bolt Windows latch for OEM
- Zinc windows latch aluminium Window latch for OEM
- aluminium zamak Windows lock for OEM
Product Details
Brand Name: | Bluen | Place of Origin: | China | Model Number: | CSK8-CSK40 |
Product Description
Description of CSK series One Way Clutch Bearing
CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheel is built into the customer housing. This makes compact, space-saving fitting solutions possible.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.
The following series are available:
Parameter sheet of CSK series One Way Clutch Bearing
Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||
dynamic | static | |||||||||
CSK (KK) | d | TKN1) | N max | D | L | C | C0 | TR | ||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..2RS | 8** | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 |
MOUNTING EXAMPLE
