Home > Industrial Equipment & Components > Bearing > Needle Bearing > EWC Series One Way Needle Bearing Small One Way Clutch
EWC Series One Way Needle Bearing Small One Way Clutch
US$ 0.6 - 1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLUEN
Place of Origin:
China
Model Number:
EWC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo / Qingdao
Delivery Detail:
1 days
Related Products
-
Fishing Reel One Way Clutch Bearing OWC Series With Needle TypeUS$ 0.5 - 2MOQ: 5 Pieces -
GFK SERIES Bearing Manufacturer Clutch Release Bearing One WayUS$ 8 - 160MOQ: 1 Piece
-
K Series K6*10*13 Needle Roller Cage Assembly Needle BearingUS$ 0.5 - 20MOQ: 1 Piece
-
K Series K8 Needle Roller Cage Assembly K10 Needle BearingUS$ 0.5 - 0.8MOQ: 1 Piece
-
K Series K12 Needle Roller Cage Assembly K14 Needle BearingUS$ 0.6 - 1.2MOQ: 1 Piece
Brand Name
BLUEN
Place of Origin
China
Model Number
EWC
Number of Row
Single Row
Seals Type
NO
Precision Rating
P0
Outside Diameter
8.4, 19
Bore Size
4, 12

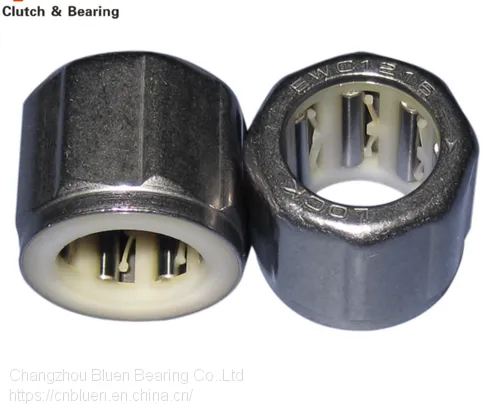

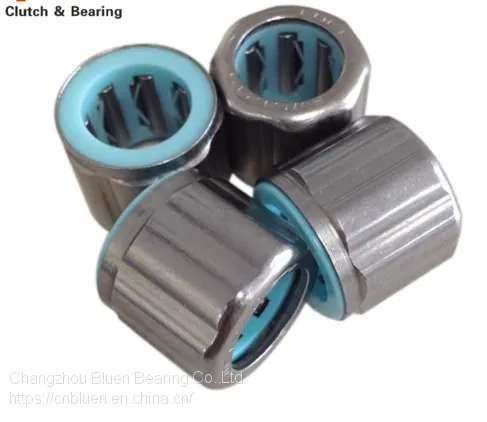

EWC One Way Needle Bearing Small One Way Clutch
Product Description
Feature
PRODUCT NAME: EWC One way clutch (outer lane has raised angles )
ID: The roller pin coupling, the addendum circle has the edges and corners, is advantageous for the localization locking, uses on the fishing equipment, the automatic money counting machine.
MODEL: EWC
MATERIAL:Outer material: ST14 stainless steelNeedle rollerStainless steel or GCr15. Keep the shelf: Strengthen nylon.
PACKING:Customize according to the needs of customer
DETAILS: EWCThis kind of clutch, the outer lane has raised angles, it is easy to make a reservation to lock, used in the fishing tackle (able to bear the sea water and corrode ), some paper money planes.

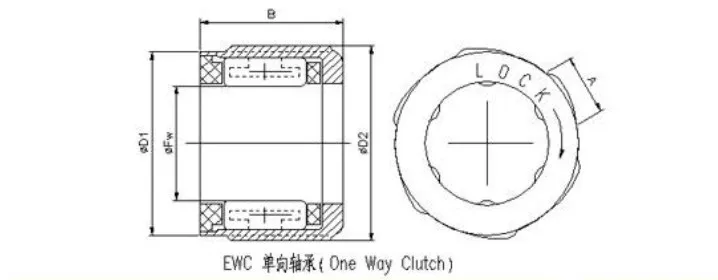

| shaft dia. | torque capacity | ||||||
| d | Fw | D1 | D2 | B | A | ||
| mm | mm | N.m (.) | Kg.cm(.) | ||||
| 4 | 4 | 8 | 8.4 | 6 | 2.6 | 0.08 | 0.82 |
| 4 | 8 | 8.4 | 6 | 2.6 | 0.15 | 1.53 | |
| 6 | 6 | 10 | 10.4 | 8 | 2.8 | 0.25 | 2.55 |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 12 | 2.8 | 0.88 | 8.98 | |
| 8 | 8 | 12 | 12.4 | 9 | 2.6 | 0.49 | 5 |
| 8 | 12 | 12.4 | 9 | 2.6 | 0.88 | 8.98 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.18 | 12.04 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 14.5 | 3.6 | 2.65 | 27.04 | |
| 10 | 10 | 16 | 17 | 10 | 5 | 1.18 | 12.04 |
| 10 | 16 | 17 | 10 | 5 | 1.96 | 20 | |
| 10 | 16 | 17 | 12 | 5 | 1.37 | 13.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 12 | 12 | 18 | 19 | 16 | 5.1 | 6.28 | 64.08 |
