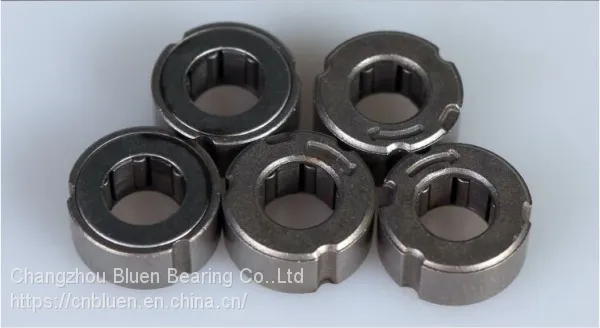

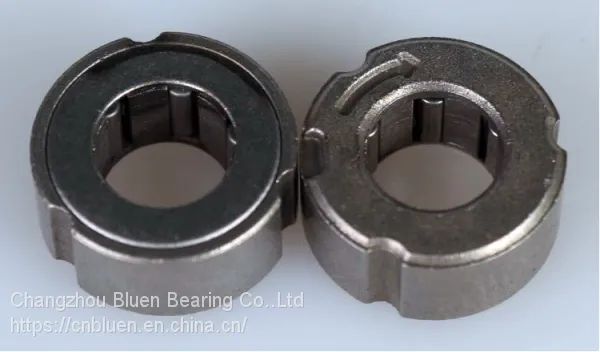

Help CenterFishing Reel One Way Clutch Bearing OWC Series With Needle Type
Related Products
-
GFK SERIES Bearing Manufacturer Clutch Release Bearing One WayUS$ 8 - 160MOQ: 1 Piece -
K Series K6*10*13 Needle Roller Cage Assembly Needle BearingUS$ 0.5 - 20MOQ: 1 Piece
-
K Series K8 Needle Roller Cage Assembly K10 Needle BearingUS$ 0.5 - 0.8MOQ: 1 Piece
-
K Series K12 Needle Roller Cage Assembly K14 Needle BearingUS$ 0.6 - 1.2MOQ: 1 Piece
-
K Series K16 Needle Roller Cage Assembly K18 Needle BearingUS$ 1 - 2MOQ: 1 Piece
Brief Indroduction
-OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and make the structure more compact as well as higher performance.
-Material:
The outer ring of OWC one-way clutch is made by sintered metal, and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by
external environment.
-Charicteristics:
1.The structure is all metal ,which gives full play to the excellent heat resistant characteristic.
2.Short in diameter and thin in depth ,which makes the miniaturization of machine become
possible.
3.Two standard : clockwise (R type) and anticlockwise (L type)
4.Because of the protection of protective layer, it can provide the performance of single functional
components.
5.The gears and pulleys (made by resin) are easily pushed ,which makes it easily to assemble.
Different Sizes for Your Reference
| Shaft Dia. mm |
Model | Weight | Size (mm) | Driving Torque | ||
| g | Inner Dia. | Outer Dia. | Height | ( Nm ) | ||
| 4 | OWC 410 | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC 511 | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC 612 | 2.3 | 6 | 12 | 5.4 | 5.2 |

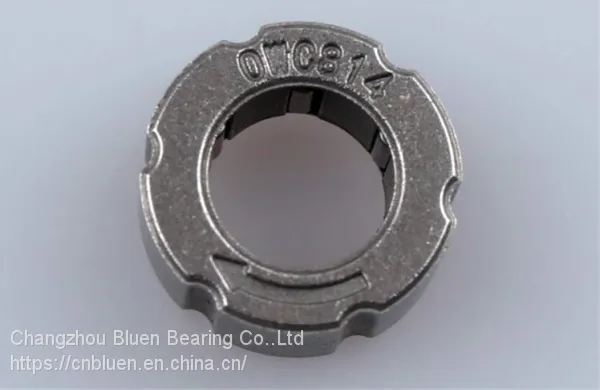

| 8 | OWC 814 | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 10 | OWC 1016 | 3 | 10 | 16 | 5.4 | 9.5 |
| 4 | OWC 406 | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC 408 | 1.8 | 4 | 8 | 8 | 3.1 |
| 6 | OWC 612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC 61407 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC 720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC 087 | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC 178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC 81607 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC 812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC 816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC 816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC 1008 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC 1019 | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC 173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC 173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC 203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED | ||||||
