Multifunction hydraulic screw nut bolt making thread rolling machine

Multifunction hydraulic screw nut bolt making thread rolling machine

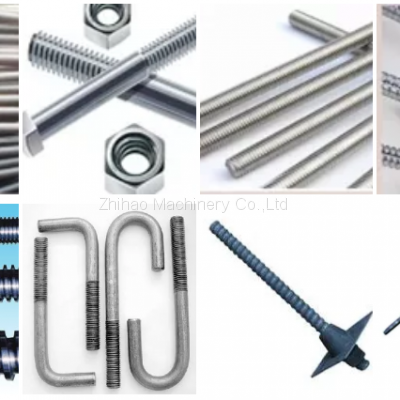

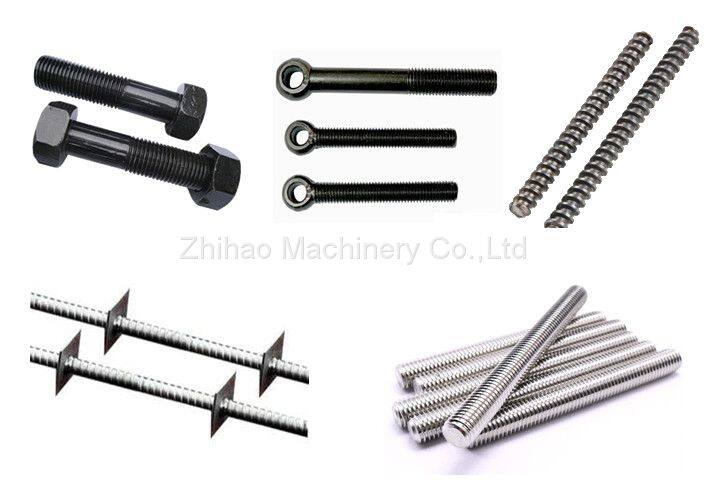

Our thread rolling machine machines ideally conformed to thread ISO, ACME, TPN and WORM threads in cold or hot forming process. Thread Rolling Machines are used in the production of bolt, screw, anchor, spline, ball joint, shaft, or support for scaffolding industry.

Features of hydraulic thread rolling machine:

1. Automatic feeding with adjuatable brackets

2. Speed is adjutable for different products

3. 54mm hole diamter for SKD11 thread rolling dies

4. Max. Rolling pressure is about 160KN

5. It is easy to operate and maintain the machine

6. CE

Technical parameter of hydraulic thread rolling machine:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg

Why choose us?

We are the manufacturer,good price for you .

We have professional sales staff to answer any questions you ask.Help you choose the most suitable models.

We have professional technicians.Solve any difficult problems about the operation of the machine for whole day.

We have joined the Trade Assurance .Ensure your financial security.

Multifunction hydraulic screw nut bolt making thread rolling machine

high quality and low price

Any more questions for hydraulic thread rolling machine, pls contact freely.
