Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > ZP28-65 Hydraulic Pipe Thread Rolling Machine for Scaffolding
US$ 7800 - 10800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZHIHAO
Place of Origin:
China
Model Number:
ZP28-65
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
5 days
Related Products
-
Hydraulic Three Roll Thread Rolling Machine Scaffolding Threading MachineUS$ 7800 - 10800MOQ: 1 Set -
Thread Rolling Machine in VietnamUS$ 3380 - 9600MOQ: 1 Set
-
Foundation Bolts u Bolts Fasteners Automatic Bolt Making Thread Rolling MachinesUS$ 3380 - 9600MOQ: 1 Set
-
Z28-200 China Hydraulic Rebar Thrufeed Thread Rolling MachineUS$ 3380 - 9600MOQ: 1 Set
-
Z28-200 Flat Die Bolt Thread Rolling Machine for ACMEUS$ 3380 - 9600MOQ: 1 Set
Brand Name
ZHIHAO
Place of Origin
China
Model Number
ZP28-65
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
18 months
Weight
3100kg
Dimension(L*W*H)
1800*2200*1800mm
Production Capacity
1m/min
Voltage
380v/50Hz
Certification
CE
Application

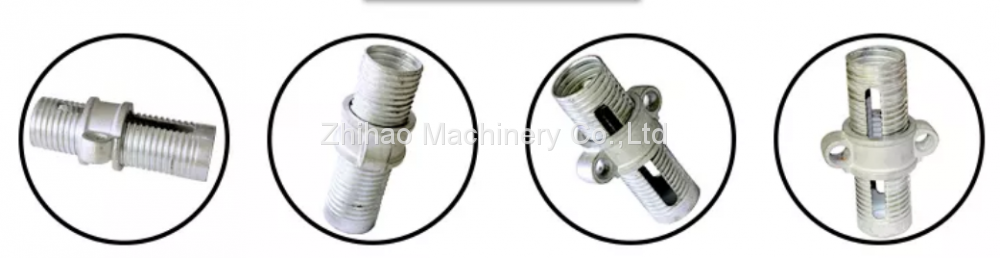

rolling thread on the rod bar or pipe
Condition
New
Power(W)
11kw

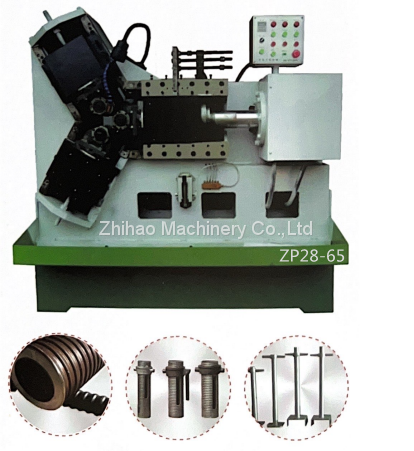

Model ZP28-65 automatic pipe thread rolling machine
Rolling thread range Diameter 80mm
Max thread pitch 8mm
Spindle angle ±6°
Max rolling pressure 250kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 180mm
Hole 54mm
Max width 100mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 11kw
Hydraulic transmission power 3.0kw
Dimension 1800*2200*1800mm
Weight 3100kg
Any more questions for thread rolling machine and thread rolling die, pls contact freely.
