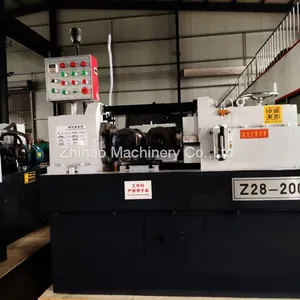

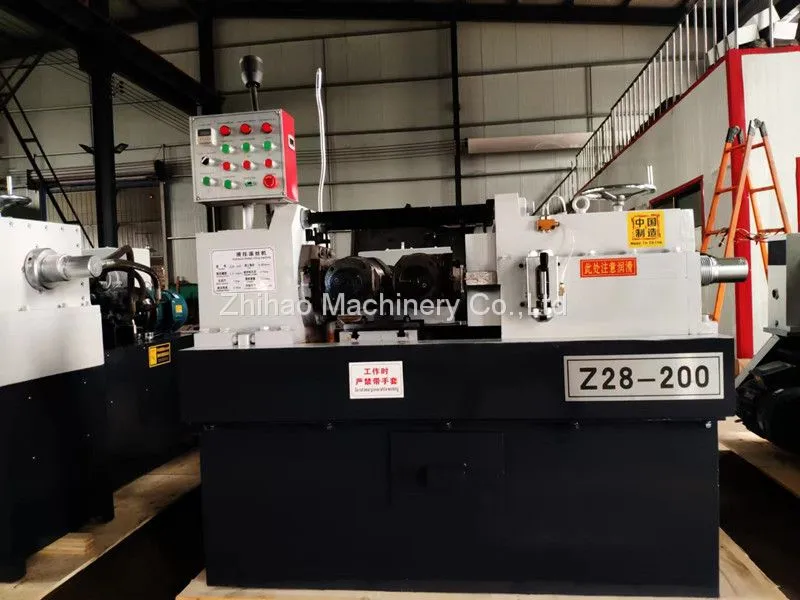

Z28-200 China Hydraulic rebar thrufeed thread rolling machine
Application of thread making machine:
1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This threading rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This threaded rod rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
Model Z28-200 China Hydraulic rebar thrufeed thread rolling machine
Rolling thread range Diameter 64mm
Max thread pitch 6mm
Spindle angle ±10°
Max rolling pressure 300kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 210mm
Hole 75mm
Max width 150mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 11kw
Hydraulic transmission power 5.5kw
Cooling pump power 90w
Dimension 1900*1700*1450mm
Weight 2500kg
Any more questions for Z28-200 China Hydraulic rebar thrufeed thread rolling machine, pls contact freely.
whatsapp +8615512868421
Email: sales@zhihaomachinery.com
