Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine

Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine thumbnail-1
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine thumbnail-2
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine thumbnail-3
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine photo-1
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine photo-2
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Type:
Gravity Separator
Contact Supplier Request Quote Chat Now
Zhengzhou VANGUARD Machinery Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Type Gravity Separator
Certification ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Gold Ore Knelson Nelson Centrifugal Concentrator Gravity Separator Machine
The centrifugal water jacket gold concentrator produced by our company is a new type of gravity mineral processing equipment which absorbs the advantages of the same type of mineral processing in Canada and South Africa and combines with the domestic reality. The machine is mainly suitable for the recovery of single gold from placer gold, vein gold and polymetallic ore. It can also separate single gold from gold bearing flotation concentrate and old tailings
Performance Characteristics:
1. High recovery rate. It has a good effect on the process of ultrafine ore slime, while the recovery rate is over 90% for 37-39 micron.
2. Large Capacity. Under the action of centrifugal force, it strengthened the process of gravity and shortened the separation time. Therefore the capacity of the centrifugal concentrator is much bigger.
3. Easy To Install. It's a full-line machine that only a small leveled place is required. Before starting it, we only need to connect the water pump and power.
4. No Pollution. This machine only consumes water and electric power and exhaust tailings and water. Low noise and no chemical agent involved.
5. Easy To Operate.
WORKING PRINCIPLE

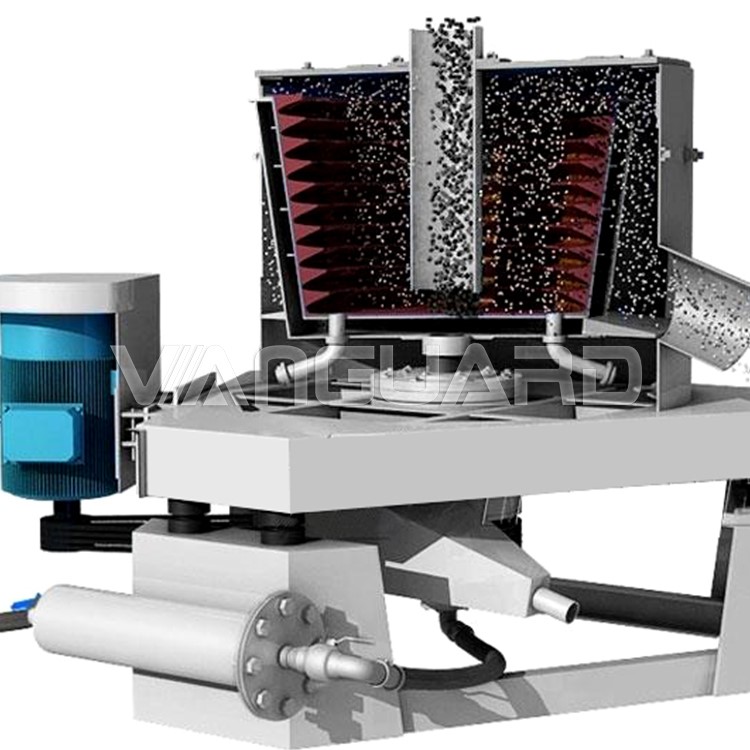

Mineral separator is a kind of gravity concentrating machine. It will produce big centrifugal force when rotating, and strengthen gravity process, to make the superfine particle effectively recover. The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
PRODUCT PARAMETERS
Model
Capacity(t/h)
Power
(kw)
Feeding Size
(mm)
Slurry Density
(%)
Backlash Water Quantity
(t/time)
Concentrates Capacity
(kg/time)
Cone Rotation Speed
(r/min)
Pressure Water Required
(mpa)
Weight
(t)
STL-30
3-5
3
0-4
0-50
6-8
10-20
600
0.05
0.5
STL-60
15-30
7.5
0-5
0-50
15-30
30-40
460
0.16
1.3
STL-80
40-60
11
0-6
0-50
25-35
60-70
400
0.18
1.8
STL-100
80-100
18.5
0-6
0-50
50-70
70-80
360
0.2
2.8
CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers aggregates crushing, industrial grinding, mineral processing, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification, European CE certification, Russian gost certification and other product quality system certification, ensuring that all the equipment is brand new, advanced and reliable.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete processing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
