Energy Saving Industrial Drying Equipment Rotary Drum Dryer

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
Energy Saving Industrial Drying Equipment Rotary Drum Dryer thumbnail-1
Energy Saving Industrial Drying Equipment Rotary Drum Dryer thumbnail-2
Energy Saving Industrial Drying Equipment Rotary Drum Dryer thumbnail-3
Energy Saving Industrial Drying Equipment Rotary Drum Dryer thumbnail-4
Energy Saving Industrial Drying Equipment Rotary Drum Dryer thumbnail-5
Energy Saving Industrial Drying Equipment Rotary Drum Dryer photo-1

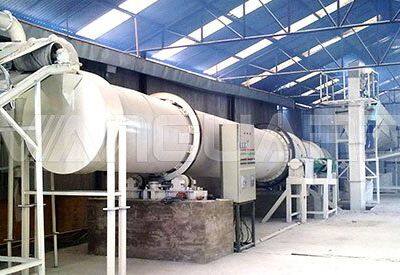

Energy Saving Industrial Drying Equipment Rotary Drum Dryer photo-2

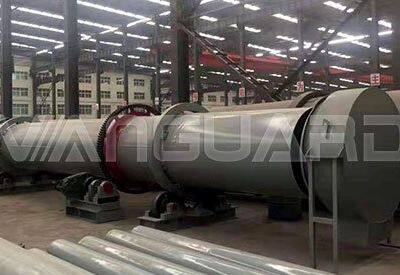

Energy Saving Industrial Drying Equipment Rotary Drum Dryer photo-3

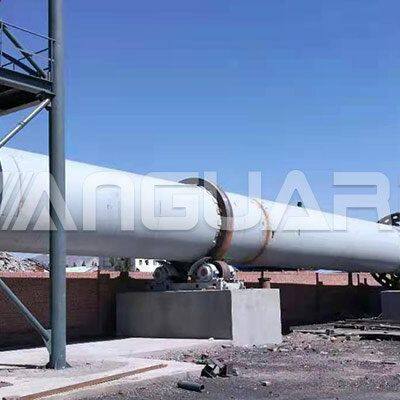

Energy Saving Industrial Drying Equipment Rotary Drum Dryer photo-4
Energy Saving Industrial Drying Equipment Rotary Drum Dryer photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Certification:
ISO9001-2008 international quality management system certification and European CE certification
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Certification ISO9001-2008 international quality management system certification and European CE certification
Type Drum Drying Equipment
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description
Rotary drum dryers have many names in the industry. They are often called drum drying equipment or drum dryers. Cylindrical drying equipment is commonly and widely used drying equipment in mining equipment which mainly suitable for drying metals and non-metals material

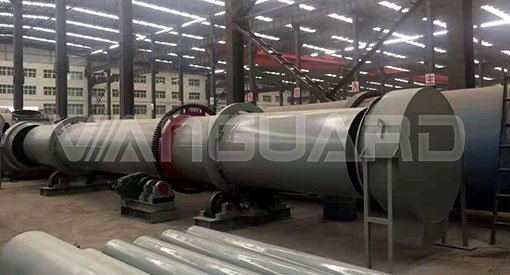

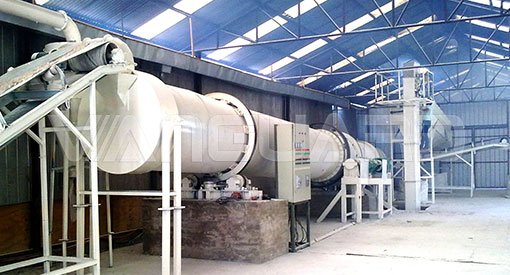

PRODUCT EXHIBITION
Performance Characteristics:
1. * High Drying Strength. The drying strength is high and the materials are highly dispersed in the gas stream, so the entire surface of the particles is dried effectively.
2.  * Easy Installation And Maintenance. The air dryer has a simple structure easy to install and maintain.
3.  * Smooth And Reliable Operation. For a large amount of processing with high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
4.  * Wear-resisting Improved. The dryer adopts an aligning roller device so that the support of the roller and the roller will always be in linear contact, reducing wear and power loss greatly.
5. * Less Wear And High-efficiency. WZ roller bearing has a military quality with first-class performance, easy maintenance, and high efficiency.
WORKING PRINCIPLE
The raw material is transported by the scraper conveyor to the inside of the sawdust dryer. and the front is equipped with a hot blast stove. The generated hot gas enters the dryer through the fire separating device, and the material is dispersed through the low-speed rotation and bending plate. So that the high-temperature airflow passes through the material and make heat exchange, the sawdust dryer has a certain angle of inclination, and sufficient air volume to drive the material forward. Finally, the dried material is discharged from the discharge port.The temperature generated by the heat source enters the long refractory lining chamber to maintain a low temperature. Adding auxiliary air to the chamber to maintain a lower temperature level.
PRODUCT PARAMETERS
Model
Cylinder Volume（m³）
Capacity（t/h）
Installation Slope （%）
Maximum Intake Air Temperature（℃）
Main Motor（kw)
Total Weight（t）
Φ0.6×8.0
2.2
0.4～0.6
3～5
700～850
3
3.2
Φ0.8×10
5
1.0～1.3
3～5
700～850
4
4.4
Φ1.0×10
7.8
1.5～2.0
3～5
700～850
5.5
5.3
Φ1.2×10
11.3
2.4～3.0
3～5
700～850
7.5
8.1
Φ1.2×12
13.5
2.7～3.4
3～5
700～850
11
9.1
Φ1.5×12
21.2
4.5～5.7
3～5
700～850
15
14.6
Φ1.5×15
26.5
5.7～7.1
3～5
700～850
15
16.5
Φ1.8×12
30.5
6.5～8.1
3～5
700～850
18.5
21.90
Φ1.8×18
45.8
9.0～11
3～5
700～850
18.5
26.6
Φ2.0×20
62.8
12～16
3～5
700～850
22
36.50
Φ2.2×22
83.6
17～21
3～5
700～850
30
43.90
Φ2.4×22
99.5
21～27
3～5
700～850
45
53.10
Φ2.5×25
122.7
24～30
3～5
700～850
45
62.00
Φ2.6×24
127.4
27～34
3～5
700～850
45
63.00
Φ2.8×28
172.4
34～43
3～5
700～850
45
85.00
Φ3.0×25
176.6
36～47
3～5
700～850
75
89.00
Φ3.2×25
201
40～54
3～5
700～850
90
95.00
Φ3.4×28
254
51～64
3～5
700～850
110
122.00
Φ3.6×28
285
57～76
3～5
700～850
160
129.00

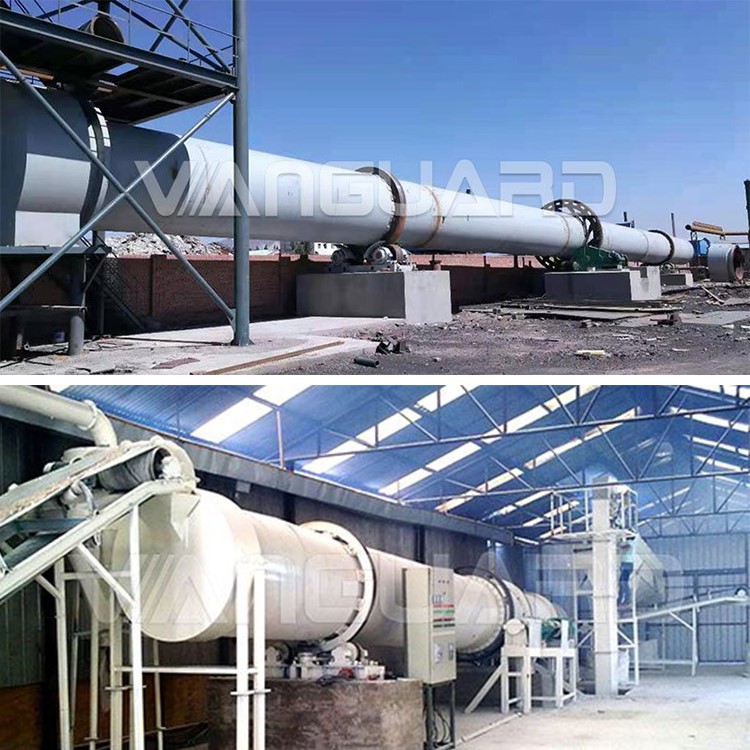

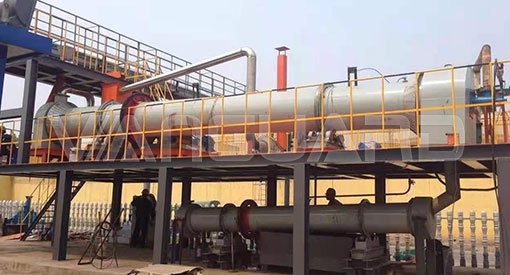

CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers aggregates crushing, industrial grinding, mineral processing, EPC general contract project, etc.. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification, European CE certification, Russian Gost certification and other product quality system certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete grinding plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
