Mineral Equipment Magnetic Separator Metal Ore Magnetic Beneficiation Equipment

Name: Mineral Equipment Magnetic Separator Metal Ore Magnetic Beneficiation Equipment
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Type:	Flotation Separator	Certification:	ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Product Description

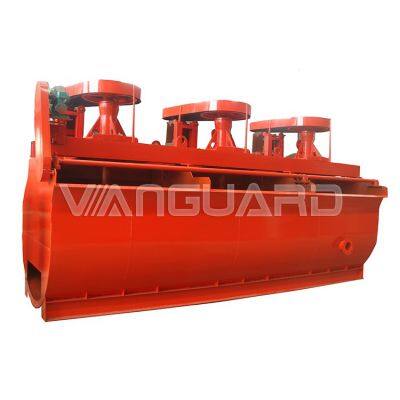

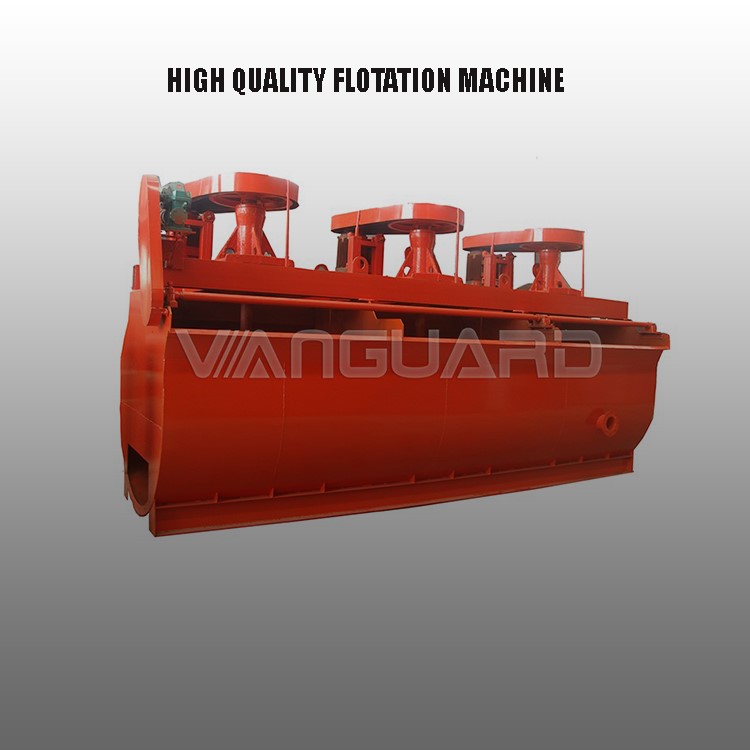

This equipment is the main equipment for sorting operations in the concentrator, and is used for roughing, concentration, scavenging, and reverse floatation. Mechanical stirring type flotation machines are divided into XJ type (A type), SF type, JF type, KYF/XCF inflatable type, etc., which is widely used in mineral separation operations in the beneficiation process of metal, nonmetal, rare metal, coal preparation and other industrial fields.

Performance Characteristics:

Large air suction volume, low power consumption.
Each cell with air suction, slurrysuction, flotation separation and flotation separation is easy to form flotation circle without any other accessory equipment, which is flexible to change process flow.
Backward type Impeller with upper and lower leaves, the upper blade generates upper circulation the lower blade generates lower
circulation.
Mechanical stirring, self- air suction, self-slurry suction.
Optimistic structure design & Excellent performance

WORKING PRINCIPLE

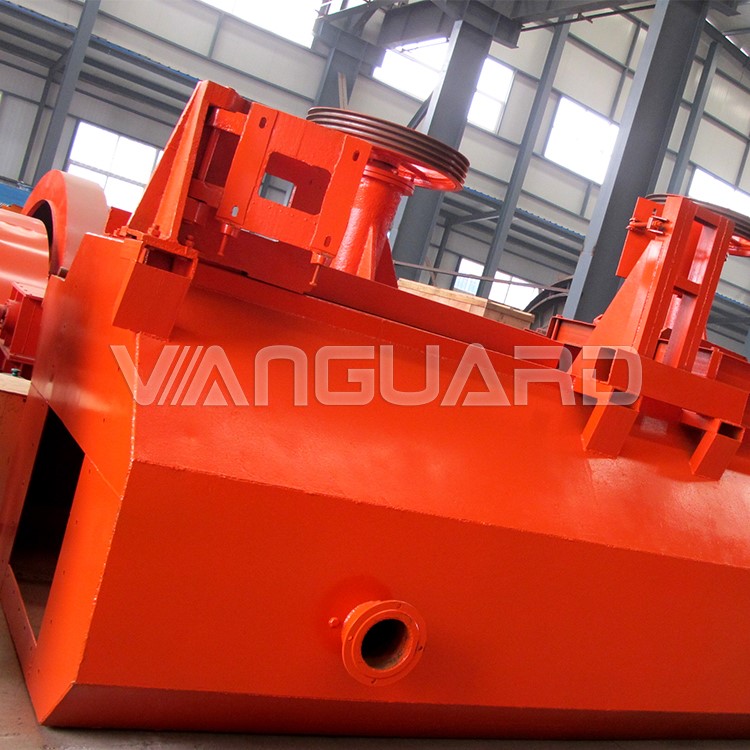

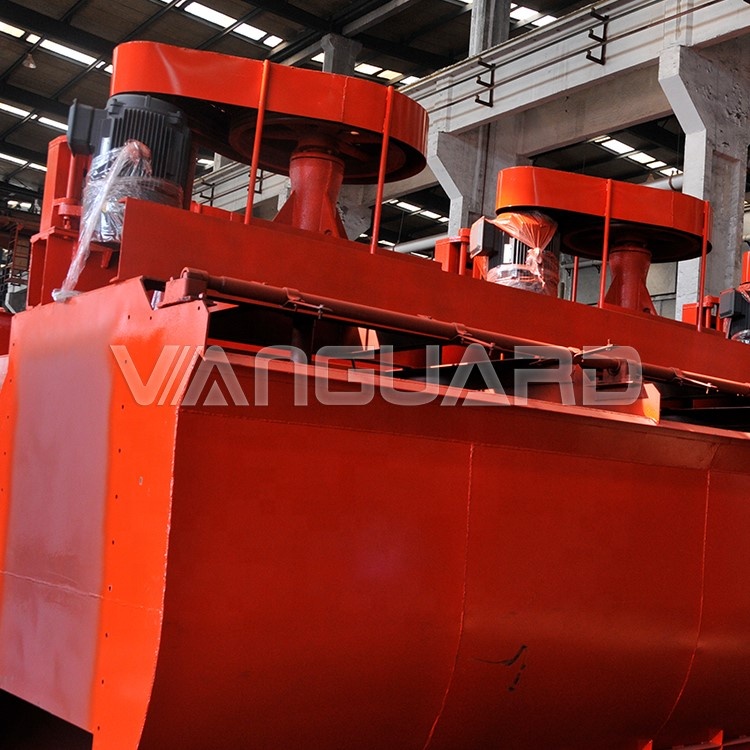

The flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device.When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. Enough air is sucked to mix slurry, and he mixed mineral slurry is mingled with additive at the same time. Mineral sticks on the bubble completely and floats on the surface of slurry to form mineralized bubbles.The useful bubble is scraped out by adjusting flashboard height and controlling the liquid surface.

PRODUCT PARAMETERS

Type	Model	Effective volume (m3)	Capacity (t/h)	Diameter of impeller (mm)	Motor power for agitation (kw)	Motor power for scraper (kw)	Weight of single tank (kg)	Single Tank Size(mm)
XJ Type Flotation Machine	XJ-0.13	0.13	0.05-0.16	200	1.5	0.55	1272	1120×1140
	XJ-0.23	0.23	0.12-0.28	250	1.5	0.55	1558	1190×1238
	XJ-0.35	0.35	0.15-0.5	300	2.2	0.55	1720	1350×1327
	XJ-0.62	0.62	0.3-0.9	350	3	1.1	3041	1535×1760
	XJ-1.1	1.1	0.6-1.6	500	5.5	1.1	5204	1970×2088
	XJ-2.8	2.8	1.5-3.5	600	11	1.1	9295	2450×2295
	XJ-5.8	5.8	5—7	750	22	1.5	13597	3250×2485
SF Type Flotation Machine	SF-0.37	0.37	0.2-0.4	300	2.2	0.75	445	700×700×750
	SF-0.7	0.7	0.3-1.0	350	3	0.75	600	900×1100×950
	SF1.0	1	0.45-1.1	400	5.5	0.75	978	1000×1000×1000
	SF-1.2	1.2	0.6-1.6	450	5.5	0.75	1240	1050×1050×1050
	SF2.0	2	1.5-3.0	550	7.5	1.1	1879	1400×1400×1150
	SF-2.8	2.8	1.5-3.5	550	11	1.1	2242	1600×1600×1150
	SF-4.0	4	2.0-4.0	650	15	1.5	2660	1900×2000×1200
	SF-8.0	8	4.0-8.0	760	30	1.5	4043	2250×2850×1400
JJF Type Flotation Machine	JJF-4	4	2.0-4.0	410	15	1.5	2303	1600×2150×1250
	JJF-5	5	2.0-6.0	410	15	1.5	2416	1120×1156
	JJF-8	8	4.0-12.0	540	22	2.2	4507	2200×2900×1400
	JJF-10	10	5.0-10.0	540	22	2.2	4820	2200×2900×1700
	JJF-16	16	5-16	700	37	2.2	7657	2850×3800×1700
	JJF-20	20	5-20	770	45	2.2	8505	2850×3800×2000

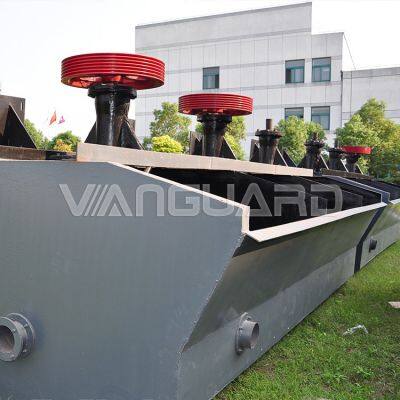

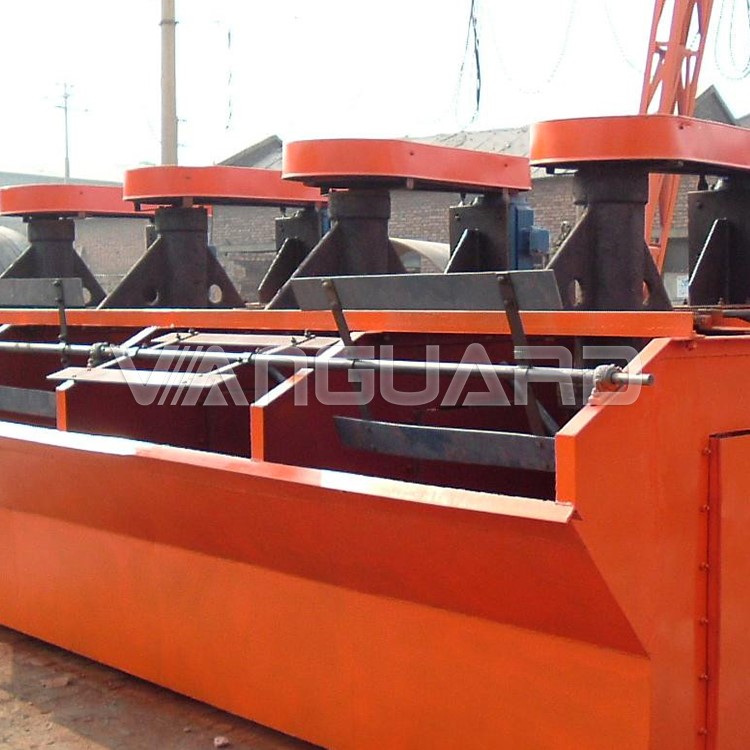

 CUSTOMER CASES

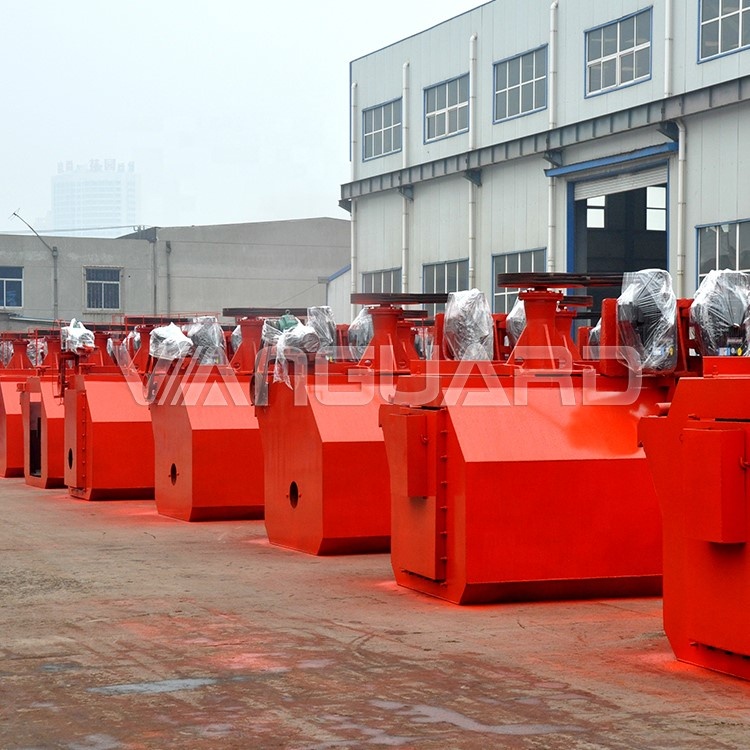

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get best service at lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
