Rebar thread rolling machine manufacturer

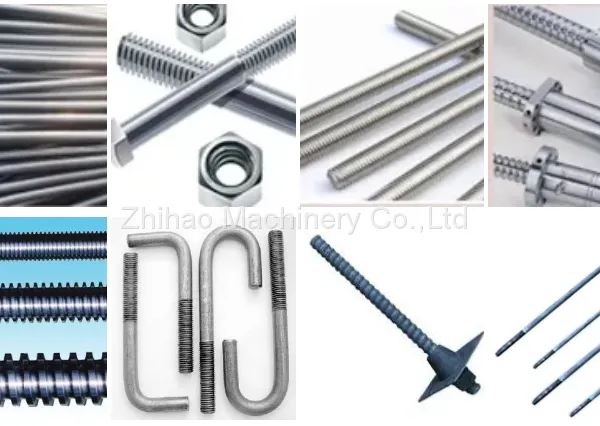

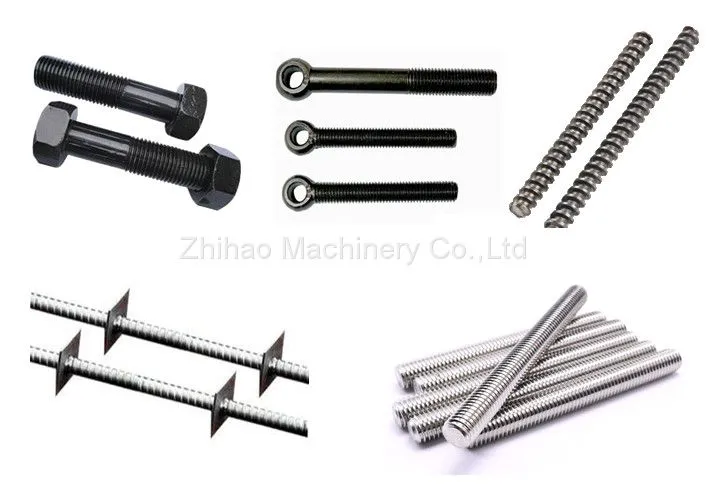

Our thread rolling machine machines ideally conformed to thread ISO, ACME, TPN and WORM threads in cold or hot forming process. Thread Rolling Machines are used in the production of bolt, screw, anchor, spline, ball joint, shaft, or support for scaffolding industry.
Features of rebar thread rolling machine:
1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11 thread rolling dies
4. Max. Rolling pressure is about 160KN
5. It is easy to operate and maintain the machine
6. CE
Technical parameter of Rebar thread rolling machine manufacturer:
Rolling thread range Diameter 64mm
Max thread pitch 6mm
Spindle angle ±10°
Max rolling pressure 300kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 210mm
Hole 75mm
Max width 150mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 11kw
Hydraulic transmission power 5.5kw
Cooling pump power 90w
Dimension 1900*1700*1450mm
Weight 2500kg
Any more questions for rebar thread rolling machine, pls contact freely.
