Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > High Quality Thread Making Machine Pipe Thread Roller Machine
US$ 7800 - 10800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZHIHAO
Place of Origin:
China
Model Number:
ZP28-65
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
5 days
Related Products
-
China 3 Rolls Thread Rolling Machine Hydraulic Thread Rolling Machine Spline Rolling MachineUS$ 7800 - 10800MOQ: 1 Set -
Hydraulic Three Roll Thread Rolling Machine Scaffolding Threading Machine ZP28-65US$ 7800 - 10800MOQ: 1 Set
-
Z28-215 Railway Spikes Thread Rolling Machine Mining EquipmentUS$ 3380 - 9600MOQ: 1 Set
-
Low Price Thread Rolling Machine, Automatic Long Steel Rod Threading MachineryUS$ 3380 - 9600MOQ: 1 Set
-
Rebar Thread Rolling Machine ManufacturerUS$ 3380 - 9600MOQ: 1 Set
Brand Name
ZHIHAO
Place of Origin
China
Model Number
ZP28-65
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
18 months
Weight
3100kg
Dimension(L*W*H)
1800*2200*1800mm
Production Capacity
1m/min
Voltage
380v/50Hz
Certification
CE
Application

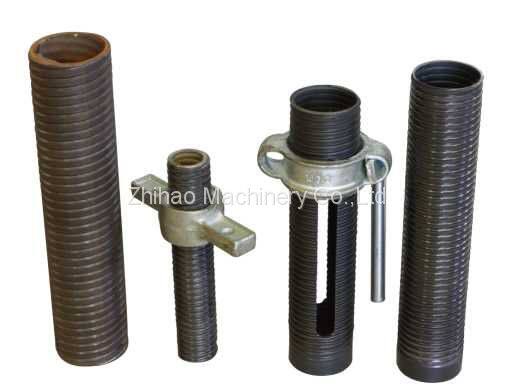

rolling thread on the rod bar or pipe
Condition
New
Power(W)
11kw

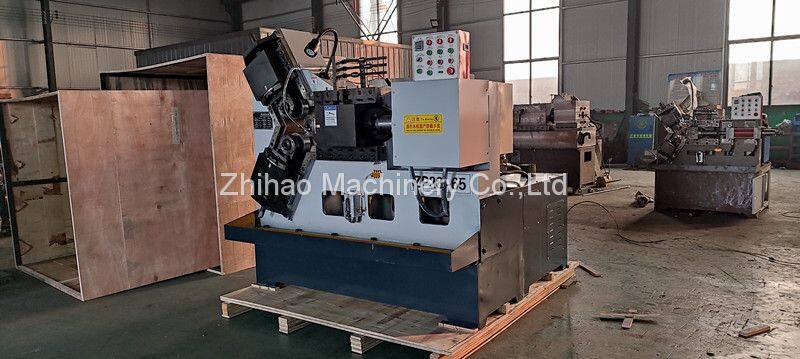

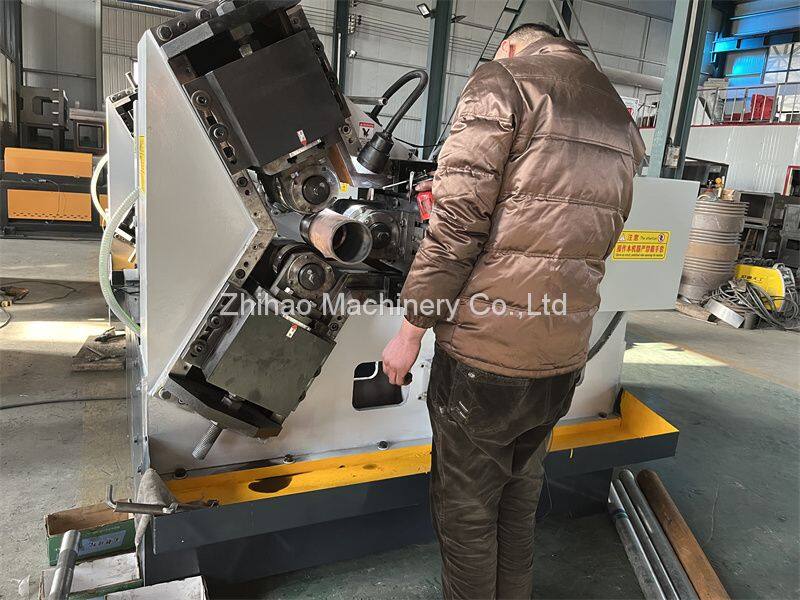

High quality thread making machine pipe thread roller machine
Technical parameter of Model ZP28-65 pipe thread roller machine:
Rolling thread range Diameter 80mm
Max thread pitch 8mm
Spindle angle ±6°
Max rolling pressure 250kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 180mm
Hole 54mm
Max width 100mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 11kw
Hydraulic transmission power 3.0kw
Dimension 1800*2200*1800mm
Weight 3100kg
Any more questions for High quality thread making machine pipe thread roller machine, pls contact freely.
whatsapp +8615512868421
Email: sales@zhihaomachinery.com
