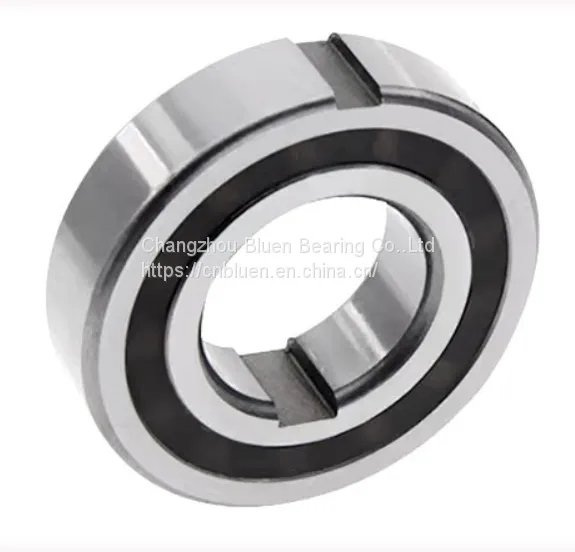

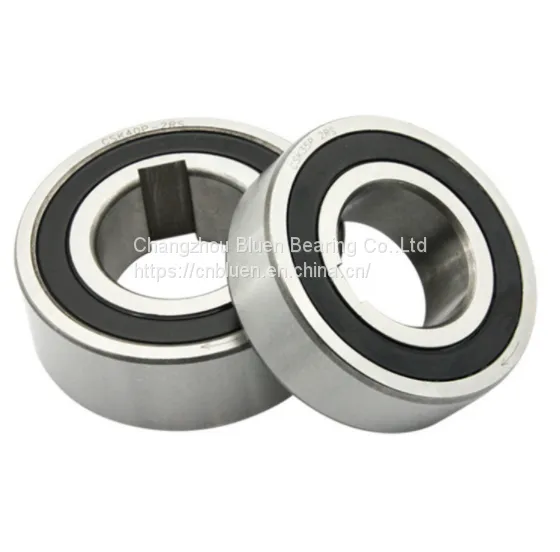

CSK CSK12 CSK15 Sprag Type One Way Bearing Freewheel Backstop Clutch/Bearings
US$ 1.8 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Bluen
Place of Origin:
China
Model Number:
CSK12 CSK15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo / Qingdao
Delivery Detail:
1 days
Related Products
-
CSK Sprag Type CSK20 One Way Bearing Freewheel CSK25 Backstop Clutch/BearingsUS$ 1.8 - 10MOQ: 1 Piece -
CSK Sprag Type CSK30P One Way Bearing Freewheel CSK35...2RS Backstop Clutch/BearingsUS$ 1.8 - 10MOQ: 1 Piece
-
CSK Sprag Type CSK40P/PP One Way Bearing Freewheel CSK402RS Backstop Clutch/BearingsUS$ 1.8 - 10MOQ: 1 Piece
-
CSK8 - CSK40 Sprag Type One Way Freewheel Clutch BearingsUS$ 1.8 - 10MOQ: 1 Piece
-
FXM Series Backstop Clutch Cam Clutch Freewheel BearingUS$ 200 - 300MOQ: 1 Piece
Brand Name
Bluen
Place of Origin
China
Model Number
CSK12 CSK15
CSK15 Description of CSK series One Way Clutch Bearing
CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheel is built into the customer housing. This makes compact, space-saving fitting solutions possible.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.
The following series are available:
Parameter sheet of CSK series One Way Clutch Bearing
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||
| dynamic | static | |||||||||
| CSK (KK) | d | TKN1) | N max | D | L | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..2RS | 8** | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
| 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
| 15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
| 17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
| 20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
| 25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
| 30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
| 35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
MOUNTING EXAMPLE
