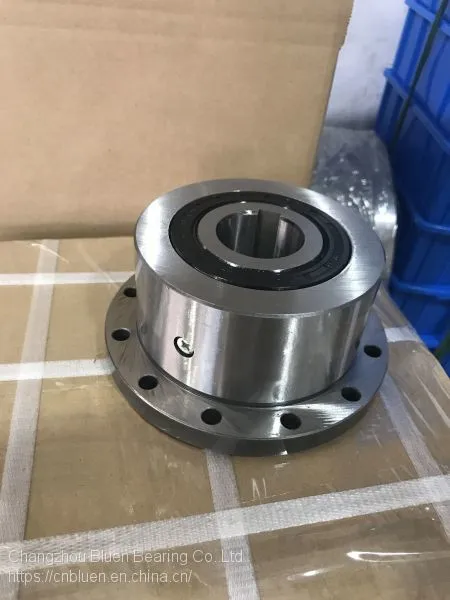

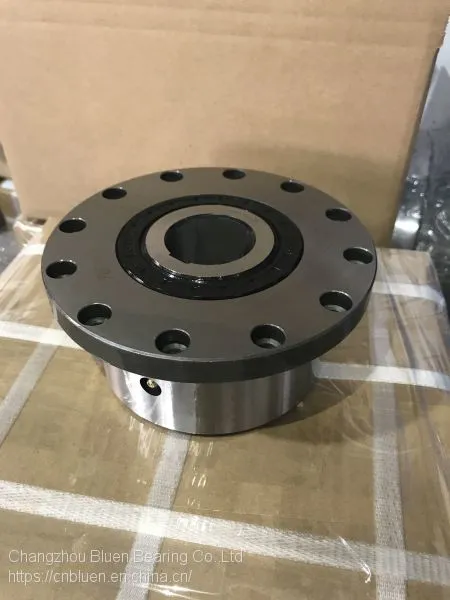

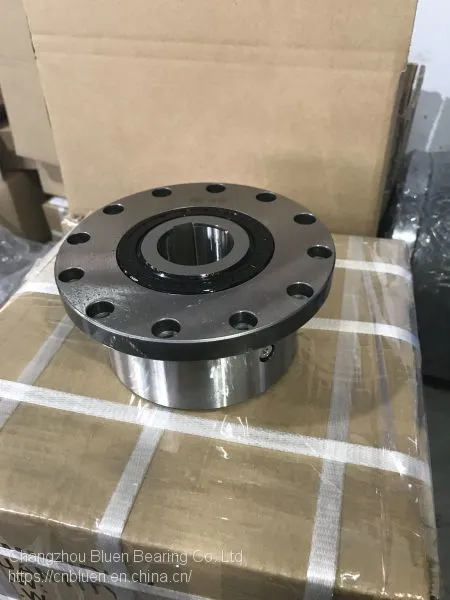

Sprag One Way Clutch Bearing Complete Freewheels with Flange FBF
Features
Complete Freewheels FBF with mounting flange are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation.
The freewheels FBF are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
In addition to the standard type, four other types are available for extended service life and indexing accuracy. Nominal torques up to 160 000 Nm. Bores up to 300 mm. Many standard bores are available.
Parameter of the FBF complete freewheels
Different Freewheels Of FBF Series You May Choose
|
Free wheel Size |
Ty pe |
Nomi nal tor que |
Max. Speed |
Ty pe |
Nomi nal tor que |
Max. Speed |
Ty pe |
Nomi nal torq ue |
Sprag |
Max. Speed |
Ty pe |
Nomi nal tor que |
Sprag | Max. Speed |
Ty pe |
Nomi nal tor que |
||||
| MN | MN | MN | lift-off at inner ring speed min-1 | MN | lift-of f at outer ring speed min-1 | MN | ||||||||||||||
| Nm |
Inner ring free wheels/ |
Outer ring free wheels/ |
Nm |
Outer ring free wheels/ |
Nm |
Inner ring free wheels/ |
Outer ring drives min-1 | Nm |
Outer ring free wheels/ |
Inner | Nm | |||||||||
|
over runs min-1 |
over runs min-1 |
Inner ring free wheels/ |
over runs min-1 |
over runs min-1 |
over runs min-1 |
ring drives min-1 | ||||||||||||||
| overruns min-1 | ||||||||||||||||||||
| FBF 24 | CF | 45 | 4 800 | 5 500 | CFT | 45 | 4 800 | 5 500 | CFP | 19 | ||||||||||
| FBF 29 | CF | 80 | 3 500 | 4 000 | CFT | 80 | 3 500 | 4 000 | CFP | 31 | ||||||||||
| FBF 37 | SF | 200 | 2 500 | 2 600 | SFT | 200 | 2 500 | 2 600 | CZ | 110 | 850 | 3 000 | 340 | SFP | 120 | |||||
| FBF 44 | SF | 320 | 1 900 | 2 200 | SFT | 320 | 1 900 | 2 200 | DX | 130 | 860 | 1 900 | 344 | CZ | 180 | 800 | 2 600 | 320 | SFP | 180 |
| FBF 57 | SF | 630 | 1 400 | 1 750 | SFT | 630 | 1 400 | 1 750 | DX | 460 | 750 | 1 400 | 300 | LZ | 430 | 1 400 | 2 100 | 560 | SFP | 310 |
| FBF 72 | SF | 1 250 | 1 120 | 1 600 | SFT | 1 250 | 1 120 | 1 600 | DX | 720 | 700 | 1 150 | 280 | LZ | 760 | 1 220 | 1 800 | 488 | SFP | 630 |
| FBF 82 | SF | 1 800 | 1 025 | 1 450 | SFT | 1 800 | 1 025 | 1 450 | DX | 1 000 | 670 | 1 050 | 268 | SFZ | 1 700 | 1 450 | 1 600 | 580 | SFP | 750 |
| FBF 107 | SF | 2 500 | 880 | 1 250 | SFT | 2 500 | 880 | 1 250 | DX | 1 500 | 610 | 900 | 244 | SFZ | 2 500 | 1 300 | 1 350 | 520 | SFP | 1 250 |
| FBF 127 | SF | 5 000 | 800 | 1 150 | SFT | 5 000 | 800 | 1 150 | SX | 3 400 | 380 | 800 | 152 | SFZ | 5 000 | 1 200 | 1 200 | 480 | SFP | 3 100 |
| FBF 140 | SF | 10 000 | 750 | 1 100 | SFT | 10 000 | 750 | 1 100 | SX | 7 500 | 320 | 750 | 128 | SFZ | 10 000 | 950 | 1 150 | 380 | SFP | 6 300 |
| FBF 200 | SF | 20 000 | 630 | 900 | SFT | 20 000 | 630 | 900 | SX | 23 000 | 240 | 630 | 96 | SFZ | 20 000 | 680 | 900 | 272 | SFP | 12 500 |
| FBF 270 | SF | 40 000 | 510 | 750 | SFT | 40 000 | 510 | 750 | UX | 40 000 | 210 | 510 | 84 | SFZ | 37 500 | 600 | 750 | 240 | SFP | 25 000 |
| FBF 340 | SF | 80 000 | 460 | 630 | SFT | 80 000 | 460 | 630 | ||||||||||||
| FBF 440 | SF | 160 000 | 400 | 550 | SFT | 160 000 | 400 | 550 | ||||||||||||
The maximum transmissible torque is 2 times the specified nominal torque.

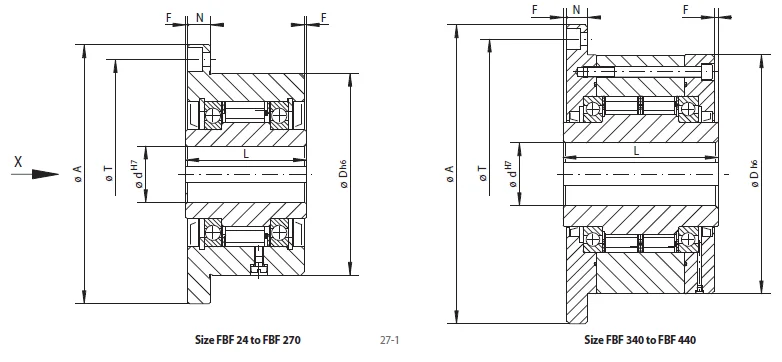

Freewheel Size |
mm |
mm |
Bored |
mm |
max. mm |
A mm |
D mm |
F mm |
G** |
L mm |
N mm |
T mm |
Z** |
Weight kg |
|
Standard mm |
mm |
||||||||||||||
FBF 24 |
12 |
14* |
14* |
85 |
62 |
1,0 |
M 5 |
50 |
10 |
72 |
3 |
1,1 |
|||
FBF 29 |
15 |
17* |
17* |
92 |
68 |
1,0 |
M 5 |
52 |
11 |
78 |
3 |
1,3 |
|||
FBF 37 |
14 |
16 |
18 |
20 |
22* |
22* |
98 |
75 |
0,5 |
M 5 |
48 |
11 |
85 |
8 |
1,5 |
FBF 44 |
20 |
22 |
25* |
25* |
118 |
90 |
0,5 |
M 6 |
50 |
12 |
104 |
8 |
2,3 |
||
FBF 57 |
25 |
28 |
30 |
32* |
32* |
128 |
100 |
0,5 |
M 6 |
65 |
12 |
114 |
12 |
3,2 |
|
FBF 72 |
35 |
38 |
40 |
42* |
42* |
160 |
125 |
1,0 |
M 8 |
74 |
14 |
142 |
12 |
5,8 |
|
FBF 82 |
35 |
40 |
45 |
50* |
50* |
180 |
135 |
2,0 |
M 10 |
75 |
16 |
155 |
8 |
7,0 |
|
FBF 107 |
50 |
55 |
60 |
65* |
65* |
214 |
170 |
2,5 |
M 10 |
90 |
18 |
192 |
10 |
12,6 |
|
FBF 127 |
50 |
60 |
70 |
75* |
75* |
250 |
200 |
3,0 |
M 12 |
112 |
20 |
225 |
12 |
21,4 |
|
FBF 140 |
65 |
75 |
80 |
90 |
95* |
315 |
250 |
5,0 |
M 16 |
150 |
22 |
280 |
12 |
46,0 |
|
FBF 200 |
110 |
120 |
120 |
370 |
300 |
5,0 |
M 16 |
160 |
25 |
335 |
16 |
68,0 |
|||
FBF 270 |
140 |
150 |
490 |
400 |
6,0 |
M 20 |
212 |
32 |
450 |
16 |
163,0 |
||||
FBF 340 |
180 |
240 |
615 |
500 |
7,5 |
M 24 |
265 |
40 |
560 |
18 |
300,0 |
||||
FBF 440 |
220 |
300 |
775 |
630 |
7,5 |
M 30 |
315 |
50 |
710 |
18 |
564,0 |
||||
** Z = Number of fastening holes for screws G (DIN EN ISO 4762) on pitch circle T.
