Product Description

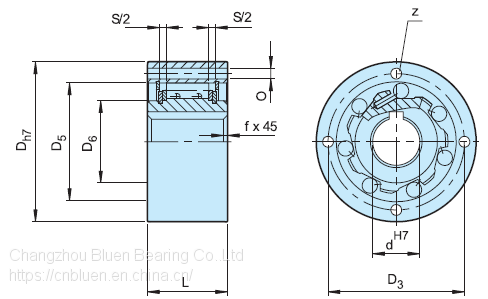

Type AA is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Standard lubrication is oil.
The inner race is keyed to the shaft. The fit for centering of the outer race must be to H7 tolerance. Connection of the outer race is via through bolts to grade 10.9 or better.
This design can accept an axial misalignment of inner and outer race of ± S/2.
Type |
Size |
Overrunning speeds |
Weight |
Drag torque |
|||||||||||
|
AA
|
dH7 (mm) |
TKN‑1 (Nm ) |
Nimax2) (min-1) |
Namax3) (min-1) |
Dh7 (mm) |
D5 (mm) |
D6 (mm) |
D3 (mm) |
Z (mm) |
O (mm) |
L (mm) |
f (mm) |
s (mm) |
(kg) |
TR (Ncm) |
12 |
17 |
3100 |
6000 |
47 |
28 |
20 |
38 |
3 |
5.5 |
20 |
0.5 |
4.5 |
0.21 |
0.7 |
|
15 |
55 |
2300 |
5400 |
55 |
37 |
26 |
45 |
3 |
5.5 |
30 |
0.8 |
4.5 |
0.44 |
3.5 |
|
20 |
146 |
2000 |
3600 |
68 |
50 |
35 |
58 |
4 |
5.5 |
34 |
0.8 |
5.5 |
0.70 |
8.4 |
|
25 |
285 |
1700 |
2600 |
90 |
68 |
45 |
7 |
6 |
5.5 |
37 |
1 |
6.5 |
1.30 |
14 |
|
30 |
500 |
1500 |
2100 |
100 |
75 |
50 |
87 |
6 |
6.6 |
44 |
1 |
6.5 |
2.00 |
23 |
|
35 |
720 |
1300 |
1950 |
110 |
80 |
55 |
96 |
6 |
6.6 |
48 |
1 |
6.5 |
2.60 |
60 |
|
40 |
1030 |
1200 |
1700 |
125 |
90 |
60 |
108 |
6 |
9 |
56 |
1.5 |
7.6 |
3.90 |
72 |
|
45 |
1125 |
1050 |
1500 |
130 |
95 |
65 |
112 |
8 |
9 |
56 |
1.5 |
7.6 |
4.00 |
140 |
|
50 |
2150 |
950 |
1300 |
150 |
110 |
75 |
132 |
8 |
9 |
63 |
1.5 |
7.6 |
6.00 |
180 |
|
55 |
2675 |
850 |
1200 |
160 |
115 |
82 |
138 |
8 |
11 |
67 |
2 |
7.6 |
7.20 |
190 |
|
60 |
3500 |
800 |
1100 |
170 |
125 |
90 |
150 |
10 |
11 |
78 |
2 |
7.6 |
9.20 |
240 |
|
70 |
5813 |
650 |
900 |
190 |
140 |
100 |
165 |
10 |
11 |
95 |
2.5 |
7.6 |
11.8 |
320 |
|
1) Tmax = 2 × TKN
2) Inner race overruns
3) Outer race overruns
