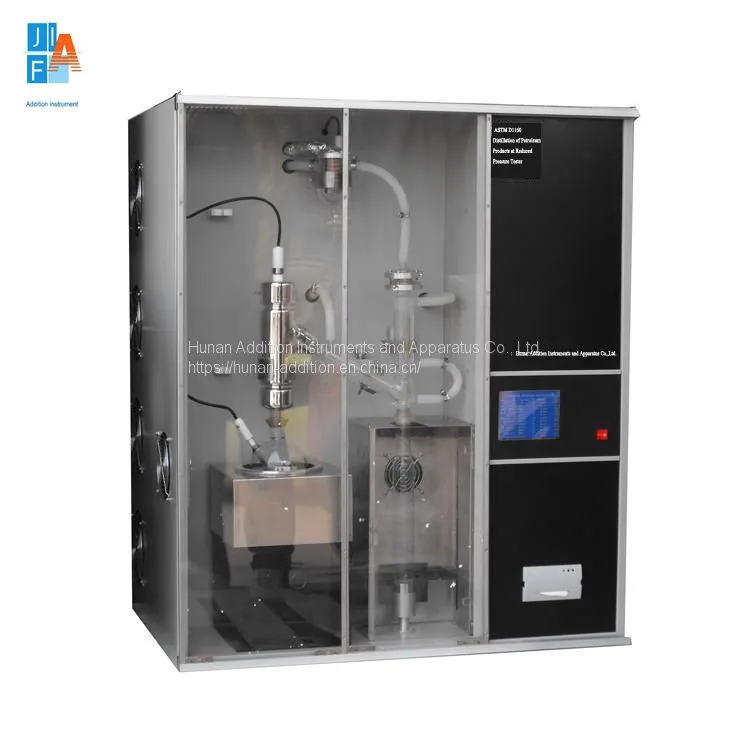

ASTM D1160 Petroleum Products Decompress Distillation Tester

Petroleum Products Decompress Distillation Tester

ASTM  D1160

Product Model: JF9168Z

Product Introduction

Technical Parameter

1. Applicable standards: ASTM D1160， ISO6616，GB/T9168

2. Thermal bath temperature: normal temperature~80℃±3℃ (set to 60℃)

3. Refrigeration temperature: - 45℃

4. Refrigeration method: compressor refrigeration

5. Pressure range: 130Pa ~ 6.7KPa

6. Pressure stability: ±0.01KPa when lower than 1KPa, 1% when higher than 1KPa

7. Pressure control: adjust the pressure knob

8. Instrument display: all instruments use digital display

9. Power of the whole machine: 3KW

10. Working power supply: AC220,240V/50,60Hz

11. Instrument size: 510*450*630mm

12. Net weight: 46KG

Main Feature

1. High-precision thin-film vacuum differential pressure gauge, instead of mercury differential pressure gauge

2. The digital meter displays the pressure, and the results are clear at a glance

3. High-precision needle valve control pressure

4. Temperature display: digital display thermostat

5. PID temperature control technology makes the temperature more accurate, with an accuracy

of ±0.1℃

6. Pressure range: 760mmHg~0.1m
