Help CenterPolyurethane PUR Mist Side Grinding Rough Sea Water Corrosion Proof Cable 4|6|8|10|12|14|16|18|20 Core Cable
Related Products
-
Orange Polyurethane PUR5 Core 2*4/6/8/10+3*0.25/0.3/0.5/0.75/1 Combined Anti-seawater CableNegotiableMOQ: 1 Meter -
Twisted-pair Shielded Signal Cable Plus Power Cord Polyurethane PUR Multi-core Combination Underwater Cable Corrosion Resistant Marine CableNegotiableMOQ: 1 Meter
-
Pu PUR Anti-seawater Cable 4/6/8/10/12 Core 14/17/20/24/23/26AWGNegotiableMOQ: 1 Meter
-
Orange Core Anti-seawater Cable 0.25/0.3/0.75/1.0 Customized Zero Buoyancy Underwater CableNegotiableMOQ: 1 Meter
-
Against Corrosion Resistance to Sea Water Hou Folding Super Flexible Control Cable Core 3 * 0.75 | 1 Add Stranded Wire CableNegotiableMOQ: 1 Meter
Technical parameter
Voltage: 0.14m㎡-0.34m㎡ : UVL/300V
≥0.5m㎡ : UVL/SCA600V
Operating voltage: 0.14m㎡-0.34m㎡ : 350V
≥0.5m㎡ : DIN VDW300/500V
Test voltage U: 0.14m㎡-0.34m㎡ : 1500V in line with DIN VDE0472
≥0.5m㎡ : 3000V in line with DIN VDE0281+HD21.2
Torsion Angle: up to ±270℃/0.5m
Minimum bending radius High flexible 10XD/ 15XD from 34 cores
Use temperature UL (0.14m㎡-0.34m㎡/≥0.5m㎡ DIN VDE
Fixed laying: up to +80/+90℃ -50/+90℃
Mobile installation: +80/+90℃ -40/+90℃
Radiation resistance: 50000000cJ/Kg
Flame retardant: 0.14m㎡-0.34m㎡:UL VW1,IEC60332-1-2+EN60332-1-2
≥0.5m㎡ : UL VW1,CSAFR1+FT2+IEC60332-1-2+EN60332-1
Oil resistance: Excellent PUR TMPU+DIN VDE0281+HD211.1
Chemical resistance: Excellent resistance to acid, alkali, solvent, all kinds of hydraulic oil, etc
Application of anti-seawater corrosion cable products
Used in different underwater applications, such as underwater robots, underwater ROVs, underwater vehicles, etc., these cables have high flexibility, wear resistance, bending resistance, oil resistance, acid and alkali resistance, and corrosion resistance. Uv resistance, aging resistance, tensile resistance, cold resistance, low temperature resistance, anti-freeze, waterproof, waterproof solution and microorganisms, oil and coolant resistance, radiation resistance, ozone resistance, weather resistance, acid alkali salt spray corrosion, solvent resistance, scratch resistance, bending resistance, bending resistance and torsion resistance. Cable structure is marked with smooth surface and fog surface frosted rough surface, smooth surface is widely used, fog surface frosted surface price is relatively high.

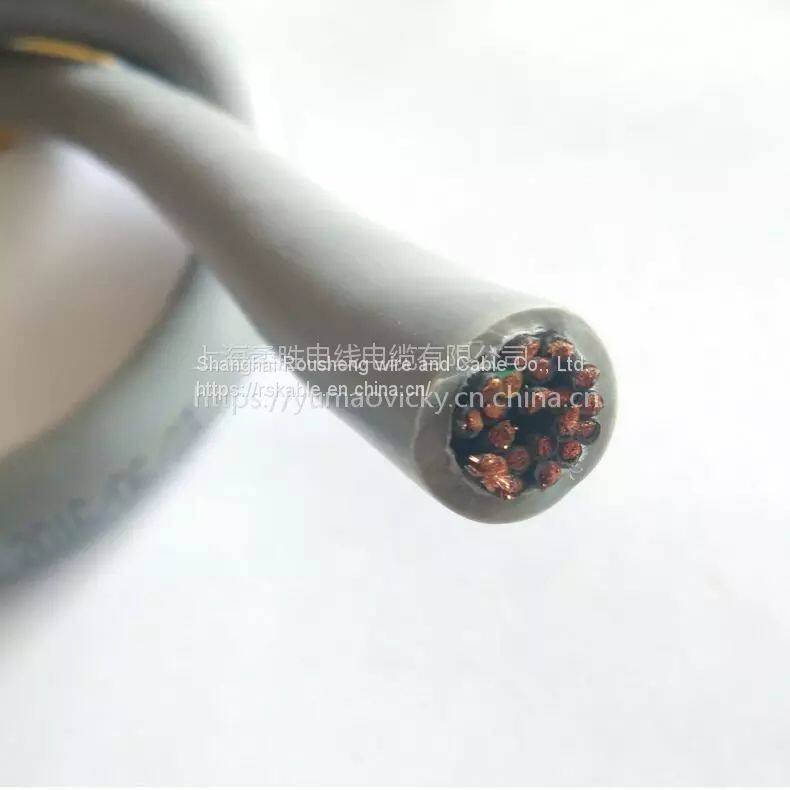

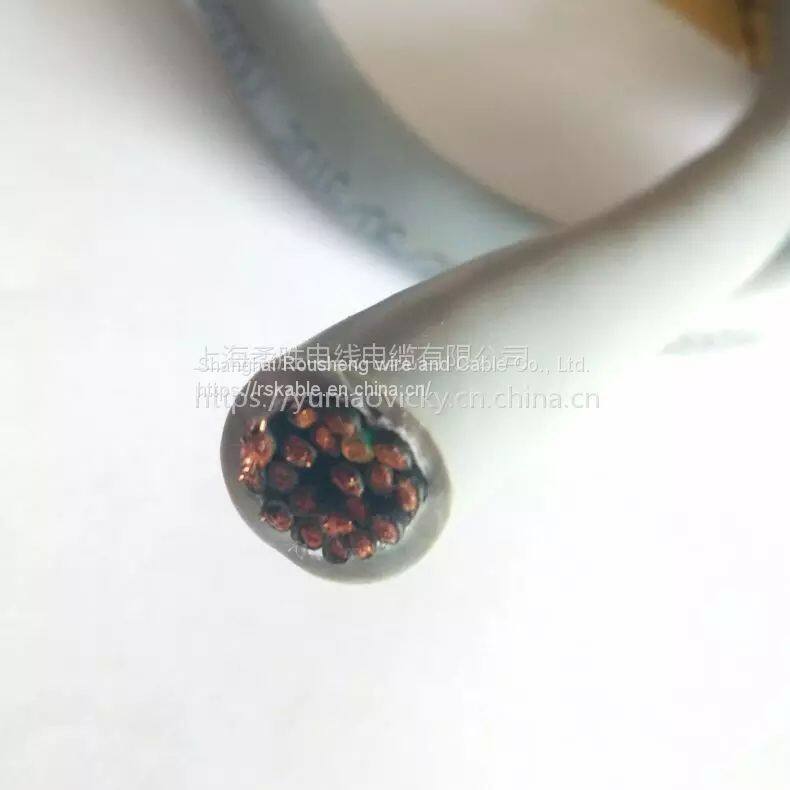

Anti-seawater corrosion cable structure
Wire: 0.14m square meters -0.34m square meters: bare copper multi-strand line, refined line
≥0.5m㎡ : bare copper multi-strand wire
Comply with IEC60228,VDE0295,6 level
Insulation: PVC TI2 conforms to DIN VDE0281+HD21.1
Color code: 0.14m㎡-0.34m㎡ : conform to the color code
≥0.5m㎡ : Black cores with serial numbers conforming to EN50334, with a yellow and green ground wire from 3 cores
Main products:
Zero buoyancy cable, anti-sea cable, underwater robot cable, floating cable, underwater photoelectric composite cable, high flexible towing chain cable, Low temperature cold resistant cable, high temperature resistant cable, oil resistant and wear-resistant cable, lift special cable, high flexible and torsion-resistant cable, polyurethane (PUR/TPU) towing chain cable, servo cable, driving handle line, video transmission cable, encoder cable, sensor signal line, robot special cable, flat cable, elevator cable, crane cable, reel cable, grab machine cable, shovel transport Machine cable, rock drill cable, gantry crane cable, spreader cable, elevator cable, coil cable, cable for tow chain, video cable for tow chain
Core structure: Each layer is specially treated and wrapped with non - woven tape
Shielding: wrapped in bare copper wire
Protector: non-woven tape
Sheath material: PVC TM5 conforms to DIN VDE0281+HD21.1
Jacket Color: Black (RAL9005)
