Application scope of anti-seawater cable:
Anti-seawater cable is widely used as power line and signal line between underwater equipment and above-water equipment. It can be used in fresh water, seawater, shallow water area and deep water area. It has a wide range of application and is widely used in warships, ships, underwater robots, submersibles, underwater unmanned gliders, Marine survey platforms, submersible motors and other fields. Shanghai Roosen Company adopts special imported anti-seawater materials and innovative anti-seawater production technology. The anti-seawater cable has excellent anti-seawater corrosion performance, and the products are widely used in various wading environment.
Display
Main products:
Zero buoyancy cable, anti-sea cable, underwater robot cable, floating cable, underwater photoelectric composite cable, high flexible towing chain cable, Low temperature cold resistant cable, high temperature resistant cable, oil resistant and wear-resistant cable, lift special cable, high flexible and torsion-resistant cable, polyurethane (PUR/TPU) towing chain cable, servo cable, driving handle line, video transmission cable, encoder cable, sensor signal line, robot special cable, flat cable, elevator cable, crane cable, reel cable, grab machine cable, shovel transport Machine cable, rock drill cable, gantry crane cable, spreader cable, elevator cable, coil cable, cable for tow chain, video cable for tow chain

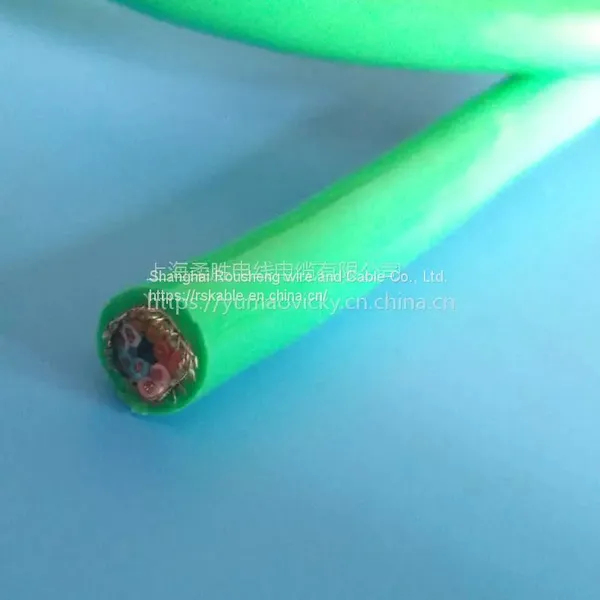

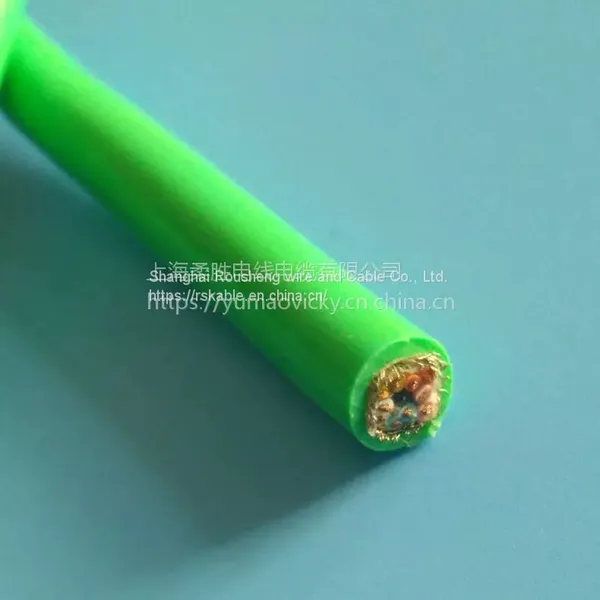

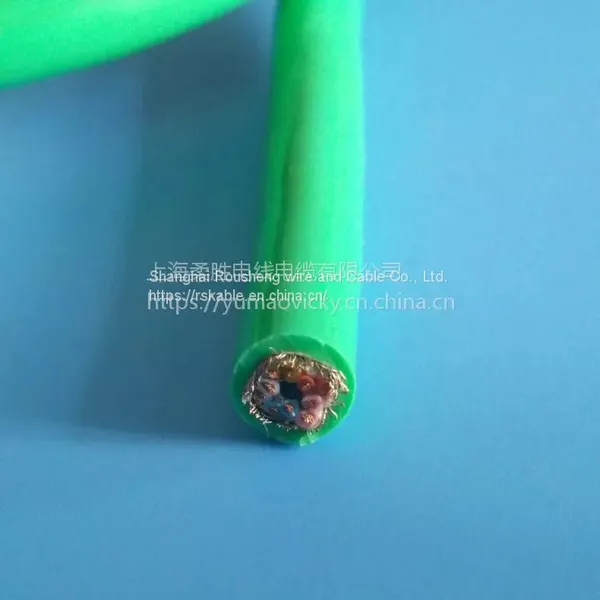

Seawater proof cable structure:
Conductor: multi-strand ultrafine stranded oxygen free copper wire, in line with VDE0295CLASS 6 standard
Insulation: High quality waterproof PE material/special butyl fine PVC mix or TPE/TPU/PTFE(optional for customers)
Color: ≤0.5mm Color: brown, black, blue, purple, pink, orange
≥0.5mm Color: black number white number number, more than 3 core with yellow and green ground wire (yellow and green optional)
Filling: water blocking yarn, high quality polyester yarn, etc
Tensile: flagpole rope, Kevlar bulletproof fiber filled or braided, tensile cotton rope optional
Around the package: excellent tensile non-woven | ptfe
Shielding: tinned copper wire textile shielding, density: more than 85%
Jacket: Special waterproof polyurethane (PUR)
Color: Black, gray, orange, yellow, optional color
Rated voltage: section
Test voltage: 2500V
Send Inquiry to This Supplier
